Ge DS2020FECNRP020A Exciter Board
Ge DS2020FECNRP020A
1. Overview

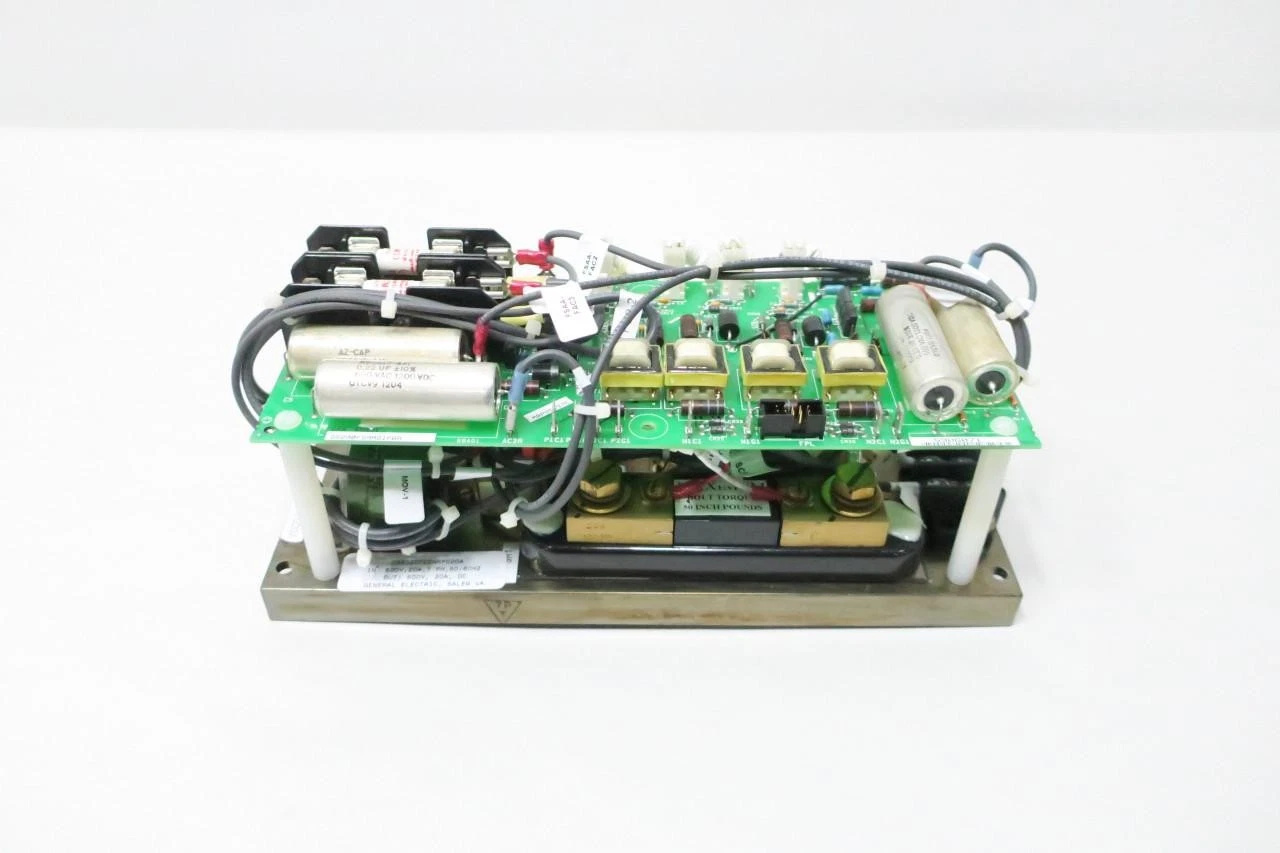

GE DS2020FECNRP020A is a 20A Field Excitation Control Board manufactured by General Electric. This board is mainly used for automation and protection in power systems, and is particularly suitable for industrial control equipment and turbine control systems (such as Speedtronic turbine control systems).
______________________________________________________________________________________________
2. Core Parameters
|
Parameter
|
Specification
|
|---|---|
|
Model
|
DS2020FECNRP020A
|
|
Current Specification
|
20A
|
|
Voltage Specification
|
600V AC, 1 Phase
|
|
Power Supply Type
|
NR (Non-Removeable), Non-pluggable Field Power Supply
|
|
Jumpers
|
7 pieces (marked JP1 to JP7)
|
|
Terminal Blocks
|
2 terminal blocks, 3 terminals each
|
|
Country of Manufacture
|
United States
|
|
Compatible Series
|
Belongs to GE DS2020 series, commonly used in DS2020FECNRX series and related models
|
______________________________________________________________________________________________
3. Product Features
- Modular Design: Adopts standardized terminal block and jumper design, facilitating quick wiring and replacement.
- High Reliability: Suitable for high-voltage environments (600V AC), ensuring stable operation in industrial power systems.
- Non-pluggable Power Supply: NR type power supply design enhances the safety and durability of the power supply.
______________________________________________________________________________________________
4. Structure and Composition
- Main Circuit Board: Carries control logic and power conversion functions.
- Jumpers: A total of 7 jumpers, used for configuring circuit functions and parameter settings.
- Terminal Blocks: A total of 2 terminal blocks, each containing 3 connection terminals for connecting external power supplies and loads.
______________________________________________________________________________________________
5. Application Fields
- Power System Automation: As an excitation control device, it is used for excitation regulation of generators.
- Industrial Control: Used for industrial equipment that requires precise current control.
- Turbine Control Systems: Plays a key role in GE’s Speedtronic turbine control systems.
______________________________________________________________________________________________
6. Installation and Maintenance Recommendations
- Installation Environment: Should be installed in a well-ventilated and dry cabinet, avoiding high temperature and humid environments.
- Wiring Inspection: Before power-on, be sure to check whether the jumpers (JP1-JP7) and terminal block connections are firm to prevent faults caused by poor contact.
- Regular Maintenance: Regularly check the status of components such as capacitors and relays on the board, and replace aging components in a timely manner.
- Safety Notes: Due to its high working voltage (600V AC), strict compliance with high-voltage operation specifications is required during maintenance, ensuring that the power supply is disconnected before operation.
————————————————————————————————————-
