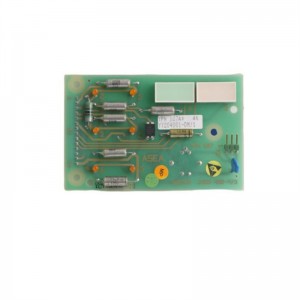

GE DS3800HRMA1H1F

Product Overview

Product Parameters

• Product Model: DS3800HRMA1H1F
• Manufacturer: GE Energy (Speedtronic series)
• Product Type: Analog input/output module
• Input Channels: 8 differential inputs (configurable as TC/RTD/0-10V/4-20mA)
• Output Channels: 4 analog outputs (4-20mA or 0-10V)
• Resolution: 16-bit (ADC/DAC)
• Accuracy: ±0.1% F.S. (full scale)
• Isolation Voltage: 1500V AC (between channels/channel to ground)
• Operating Temperature: -40°C ~ +85°C
• Protection Rating: IP52 (front panel)
• Compatible System: GE Mark IV Speedtronic
• MTBF: 250,000 hours (IEC 61709)

Structure and Composition

• Signal Conditioning Layer:
  • Input channels are equipped with programmable gain amplifiers (PGA) and 24-bit Σ-Δ ADC, supporting automatic cold junction compensation (CJC) for thermocouple measurement.
  • Output channels use 16-bit DAC and V/I conversion circuits to drive on-site actuators.
• Isolation Protection Layer:
  • Optocoupler isolation + DC/DC power isolation ensures signal transmission is not affected by ground loop interference.
  • Built-in TVS diodes and fuses prevent damage from surges and overcurrent.
• Communication Interface:
  • Exchanges data with the Mark IV controller through a high-speed backplane bus, supporting millisecond-level refresh rates.
  • Front panel LED indicators display module status in real-time (power, communication, fault).

Main Features and Advantages

• Gas turbine-specific design: Complies with API 670 standards, certified by SIL2, suitable for safety-critical control.
• High-precision signal processing: 16-bit resolution + automatic calibration function ensures long-term stability of temperature and pressure measurements.
• Redundant architecture: Supports dual-module hot backup (paired with DS3800HRMA1H2F) to improve system availability.
• Vibration and interference resistance: Passed IEEE 344 Class 1 vibration test, suitable for high-vibration environments of gas turbines.
• Plug-and-play: The module automatically identifies signal types (TC/RTD/voltage/current), reducing manual configuration errors.

Application Fields

• Combined cycle power plants: Gas turbine combustion chamber temperature monitoring (K-type thermocouple), fuel valve control (4-20mA).
• Oil and gas compression stations: Pipeline pressure/flow signal acquisition, interlocking emergency shutdown system (ESD).
• Iron and steel plant waste heat power generation: High-temperature flue gas analysis (S-type thermocouple), IGV vane adjustment.
• Offshore platforms: Gas turbine anti-surge control (cooperating with DS3800HSEA communication module).

Related Products

• DS3800HRMA1H2F: Redundant pairing module, supporting automatic fault switching.
• DS2000DCFBG1B: Mark VI communication card, used for system upgrade.
• DS3800PSDC: Dedicated 24V DC redundant power module.
• IS200TBAIH1C: Mark VIe compatible module, replacing old Mark IV systems.
• DS3800HSEA: High-speed serial communication module, used for multi-unit data synchronization.

Installation and Maintenance

• Pre-installation Preparation:
  • Use an insulation tester to confirm that the rack grounding resistance is <1Ω.
  • Check that the backplane pins are not bent and the module gold fingers are not oxidized (can be cleaned with IPA).
  • Prepare shielded twisted-pair cables (such as Belden 8761) for analog signal transmission.
• Maintenance Recommendations:
  • Calibrate the module every 12 months (using Fluke 744 process calibrator).
  • Regularly check the terminal fastening torque (0.6N·m) to prevent loosening due to vibration.
  • When replacing the module, re-download configuration parameters through ToolboxST software.

————————————————————————————————————-
