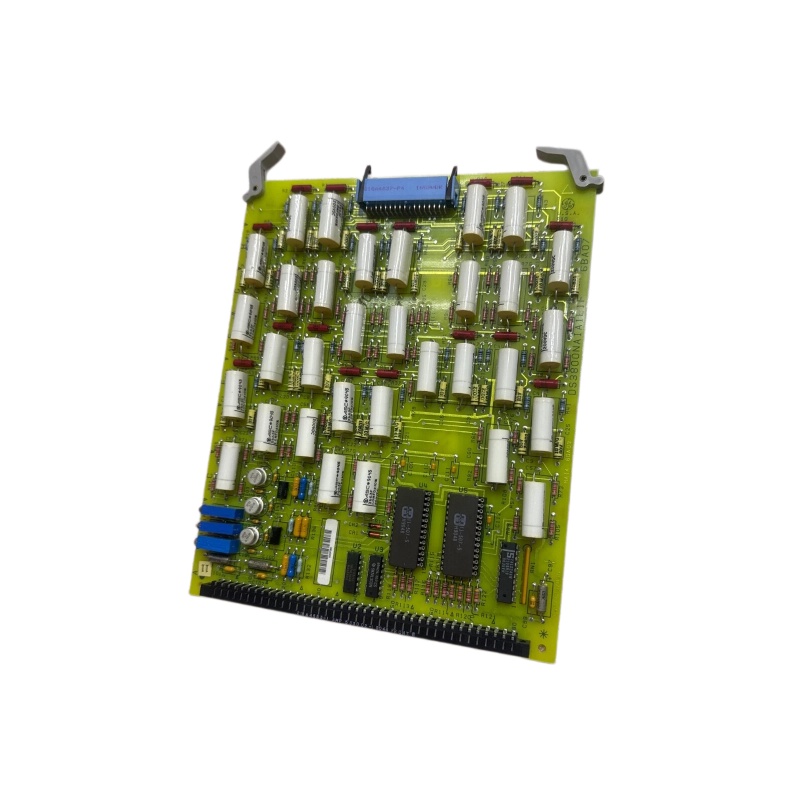

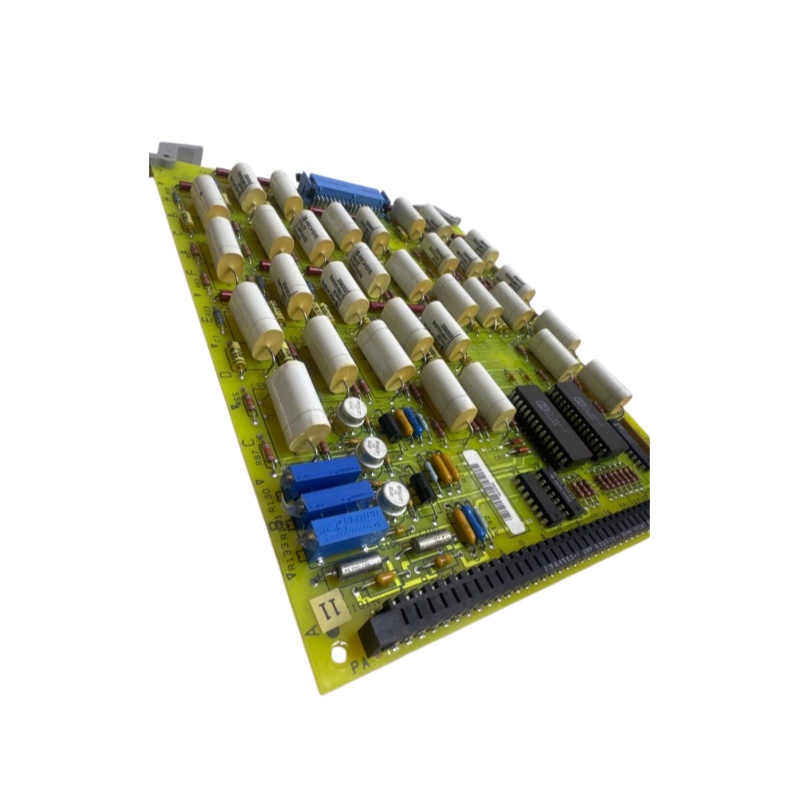

GE DS3800NAIA1E1F Circuit Board Module
GE DS3800NAIA1E1F
1. Product Overview
The GE DS3800NAIA1E1F is a circuit board module of the DS3800 series within the GE Mark IV Speedtronic turbine control system. As a piece of hardware in the GE turbine control system product line, it is primarily applied to the control systems of gas turbines and steam turbines.
2. Functional Identification
According to official product catalog specifications, the DS3800NAIA series is designated as TGSI (Turbine Generator Signal Interface) in the overall system, undertaking core turbine generator signal interface functions.
3. Product Parameters (Inferred from Peer Series Modules)
|
Parameter Category
|
Reference Value
|
Remarks
|
|---|---|---|
|
Operating Temperature Range
|
-40°C to +85°C
|
Referenced from other DS3800 series modules (e.g., DS3800NPSF1C1B)
|
|
Voltage Range
|
12VDC to 24VDC
|
Compliant with the standard power supply specification of the DS3800 series
|
|
Mounting Type
|
Rack-mounted PCB
|
Equipped with edge connector interface
|
|
Diagnostic Function
|
Test points and on-board circuits
|
Supports automatic system fault diagnosis
|
|
Weight
|
Approximately 0.45-1.0 kg
|
Referenced from the weight range of peer DS3800 series modules
|
Note: The above parameters are inferred from DS3800 series modules (e.g., DS3800NPSF1C1B). The specific electrical parameters of the DS3800NAIA1E1F module may vary depending on circuit board versions and cabinet configuration schemes. Please refer to GE official technical documents for accurate data.
4. Product Features
- High Reliability: Adopts industrial-grade electronic components, enabling stable and continuous operation in harsh industrial environments with strong anti-interference capability.
- Precise Control Performance: Supports high-precision signal acquisition, processing and system control functions to ensure accurate turbine operation regulation.
- Modular Design: Features a standardized modular structure, which simplifies on-site installation, daily maintenance and system function expansion, and fully complies with rack-mounted PCB design standards.
- Excellent Environmental Adaptability: Covers a wide operating temperature and humidity range, adapting to diverse complex industrial working conditions.
- Strong Compatibility: Perfectly compatible with all standard components of the GE Mark IV Speedtronic turbine control system.
5. Structure and Composition
The DS3800 series modules applied to the GE Mark IV Speedtronic system have the following structural characteristics:
|
Component Type
|
Description
|
|---|---|
|
Circuit Board Type
|
Printed Circuit Board (PCB)
|
|
Interface Type
|
Edge connector interface
|
|
System Architecture
|
Installed as a standard component of Mark IV racks/cabinets
|
|
Diagnostic Configuration
|
Built-in on-board test points and dedicated diagnostic circuits
|
Reference of Similar Modules in the System:
- DS3800NADA – Analog-to-Digital Conversion Board
- DS3800NADB – 12-bit A/D Conversion Board
- DS3800NADC – Analog Input Board
- DS3800NAIA – TGSI Signal Interface Board
- DS3800NAIB – Multi-Voltage Buffer Board
- DS3800NAID – Multi-Current Loop Input Board
6. Application Fields
|
Application Field
|
Description
|
|---|---|
|
Gas Turbine Control
|
Used for speed regulation and load control of gas turbines in power plants
|
|
Steam Turbine Control
|
Realizes real-time monitoring and automatic control of steam turbine systems
|
|
Industrial Automation System
|
Applicable to industrial equipment and production lines requiring high-precision control
|
|
Distributed Control System (DCS)
|
Supports automatic control and intelligent management of industrial production processes
|
|
Power System
|
Guarantees stable, safe and efficient operation of power generation and power supply systems
|
7. Installation and Maintenance
Installation Requirements:
- Installation Position: The module shall be installed in a standard GE Mark IV system rack or cabinet.
- Compatibility Verification: Before arranging equipment shutdown and installation, verify the circuit board model labels and match with GE official technical documents to ensure compatibility with the existing system.
- Electrical Connection: Connect to the system backplane bus stably through the reserved edge connector interface.
- Grounding Protection: Follow standard industrial grounding specifications strictly to eliminate signal interference and ensure complete signal integrity and system operational safety.
————————————————————————————————————-
