GE Fanuc 44A751329-001

Built for Legacy PLC Automation

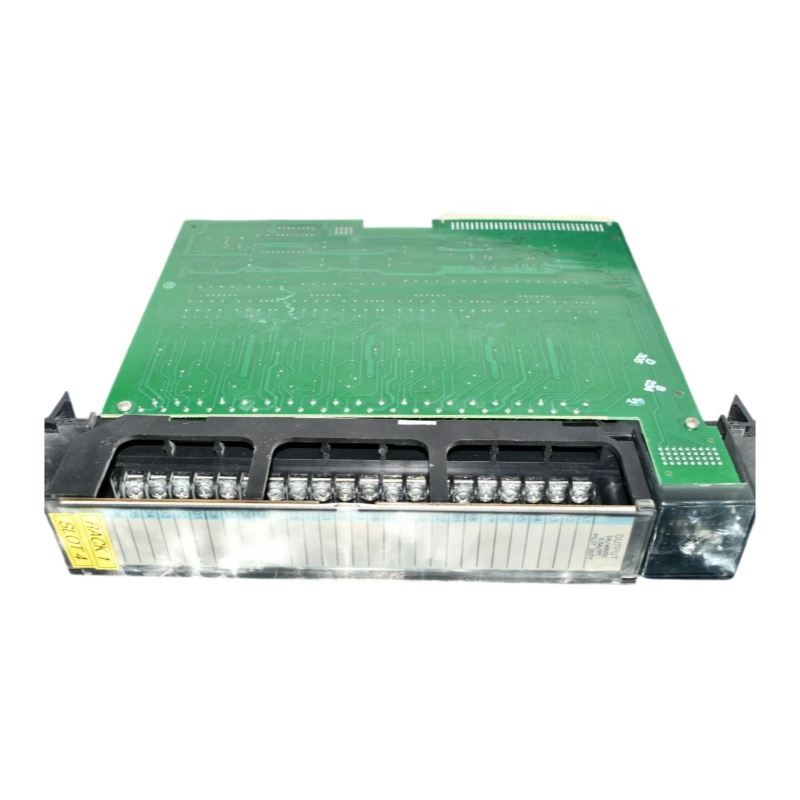

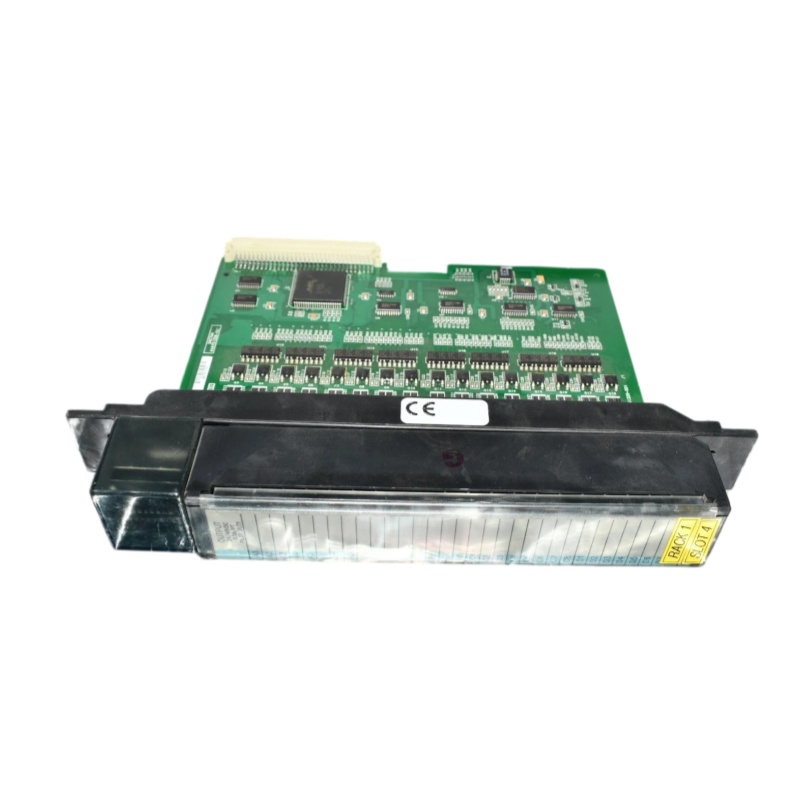

The GE Fanuc 44A751329-001 / 44A751328-G01 assembly belongs to the hardware used with the Series 90-70 PLC platform. Industrial component records identify these numbers with the IC697MDL750 discrete output module, a 32-point DC output device intended for industrial control applications.

Rather than functioning as a standalone controller, the assembly forms part of the PLC’s field-output layer. It translates commands generated by the control program into switching signals for connected external equipment.

Hardware Identification

The two numbers have different roles in the available identification records:

The identification relationship between the assembly and fabrication numbers is specifically documented in an industrial parts listing for the corresponding module.

How the Output Interface Is Used

In an operating PLC system, digital output points are used to control external devices according to the application program. Each point can represent an individual control signal, allowing the PLC to coordinate multiple devices from a single output module.

For example, outputs may be connected to solenoid valves, relay interfaces, pilot devices, or other DC loads. The actual field wiring should always be checked against the original machine drawings and the electrical requirements of the connected equipment.

Why It Matters for Existing Systems

Series 90-70 installations can remain in service for many years. When an output module develops a fault, replacing the complete assembly with a compatible unit can be more practical than redesigning the control cabinet.

This hardware is therefore relevant to:

• Legacy PLC maintenance
• Production equipment repair
• Control cabinet restoration
• Factory automation upgrades
• Spare-parts inventory
• Emergency replacement requirements

Keeping the correct spare available can also help maintenance teams reduce the time required to diagnose an output-side failure.

Installation Checks

Before replacing the module, maintenance personnel should document the existing wiring and identify every connected output circuit. Check the module label, assembly number, connector arrangement, and associated catalog information.

After installation, verify that the field wiring is correctly positioned and that the connected load is suitable for the module’s output characteristics. A controlled test should then be performed to confirm that each required output responds correctly to the PLC program.

Supply and Replacement Support

Our company provides industrial automation spare parts for customers maintaining legacy GE Fanuc PLC equipment. For this type of component, we recommend confirming the complete part-number combination, rather than purchasing solely from a shortened number.

When requesting a quotation, customers can provide the visible numbers, module label, revision information, and product photographs. This helps confirm whether the available replacement corresponds to the required Series 90-70 output assembly.
