GE Fanuc IC693CHS397M 5-Slot CPU Baseplate

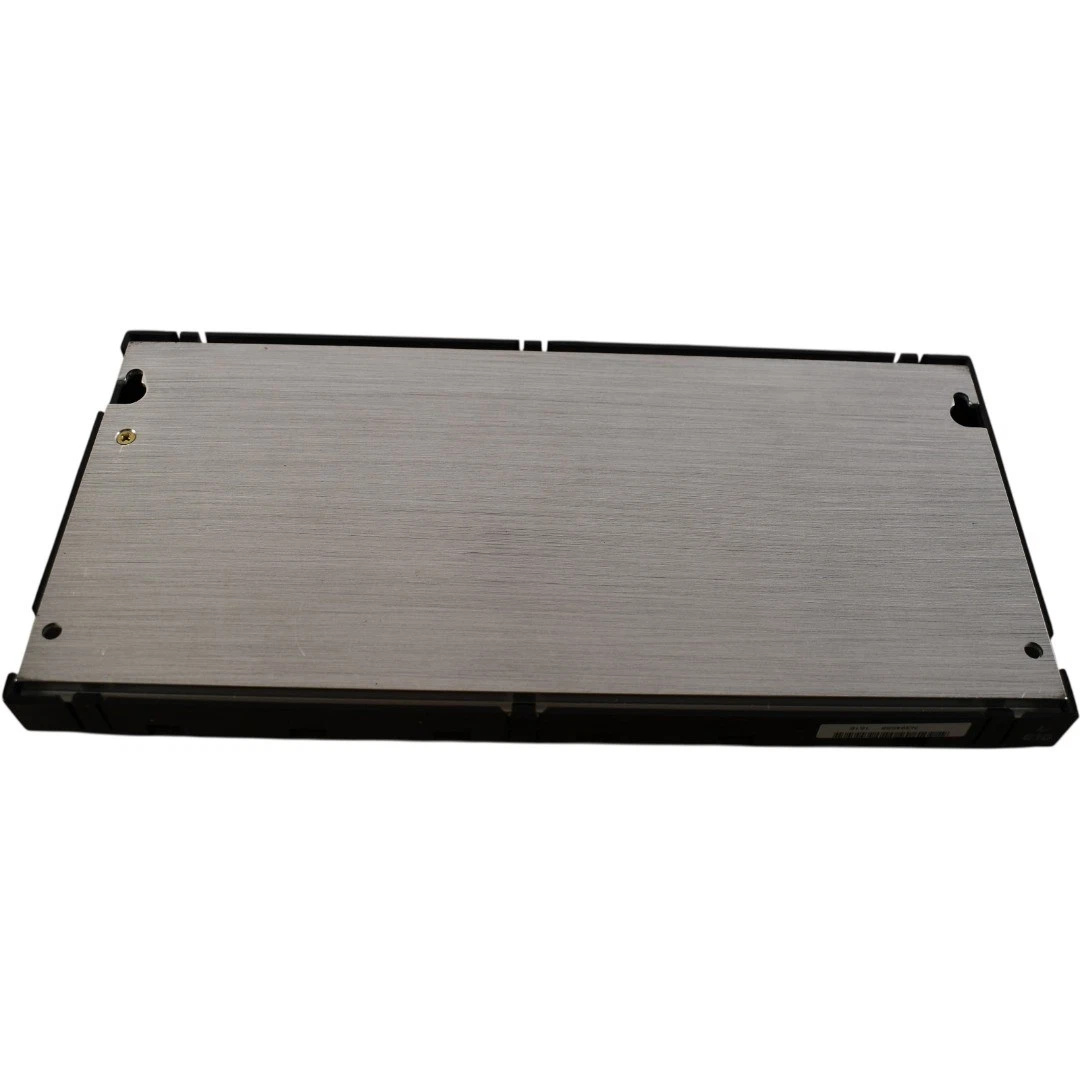

GE Fanuc IC693CHS397M
Product Overview
GE Fanuc IC693CHS397M is a 5-slot modular CPU baseplate for the Series 90-30 PLC platform. It provides the physical backplane for the CPU, power supply, I/O modules, and compatible option modules. The M revision belongs to the IC693CHS397 baseplate family.
The baseplate is designed for the main PLC rack and is normally assigned Rack 0. Its modular structure allows users to build a compact control system while retaining the option to connect additional expansion or remote baseplates.
Technical Parameters
| Item | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Series | Series 90-30 |
| Part Number | IC693CHS397M |
| Product Type | Modular CPU Baseplate |
| Number of Slots | 5 |
| CPU Slot | Slot 1 |
| I/O / Option Slots | Slots 2–5 |
| Power Supply Slot | 1 dedicated slot |
| Internal Power Consumption | 270 mA at 5 VDC |
| Expansion Connector | 25-pin D-type female |
| Maximum Expansion Cable | 50 ft / 15 m |
| Mounting | Panel mounting |
The published Series 90-30 documentation identifies IC693CHS397 as a five-slot modular CPU baseplate. The baseplate uses one dedicated power-supply position, one CPU/specialty-module position, and four I/O or option positions.
Main Features
- Five-slot modular architecture
- Dedicated CPU position
- Four additional I/O or option positions
- Separate power-supply mounting position
- Built-in I/O expansion connection
- Supports expansion and remote baseplates
- Suitable for compact industrial PLC systems
- M revision available for the IC693CHS397 family
System Structure

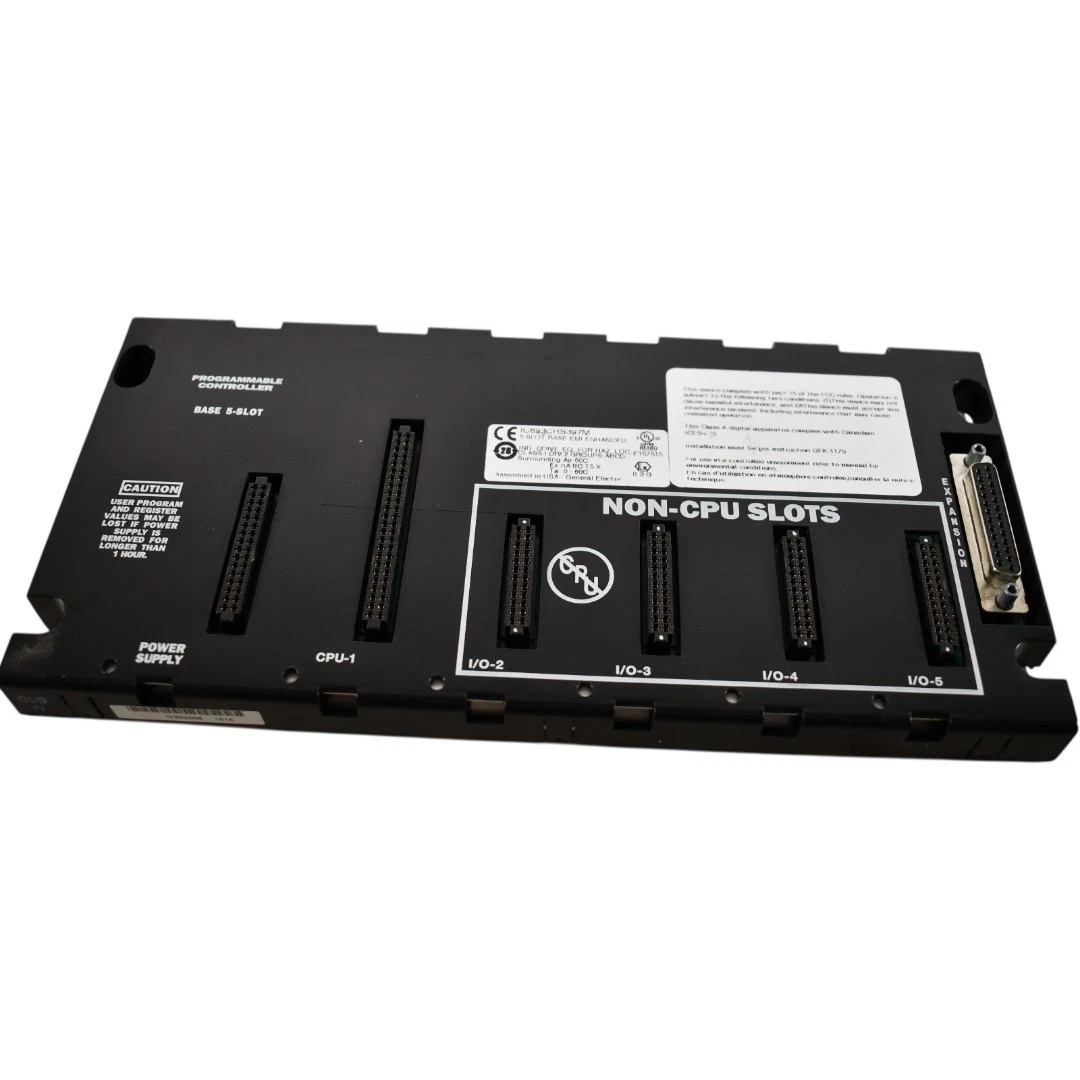

The baseplate forms the mechanical and electrical foundation of the PLC rack. The power supply is installed in the left-side dedicated position, while Slot 1 accepts a CPU or compatible specialty module. Slots 2 through 5 can accommodate I/O or option modules.
A 25-pin D-type female connector on the right side provides the interface for expansion connections. When an expansion baseplate is used, the total cable distance between the baseplates is limited to 50 feet (15 meters).
Applications
This component can be used in:
- Factory automation
- Machine control
- Production equipment
- Process-control systems
- Packaging machinery
- Legacy Series 90-30 installations
- PLC refurbishment projects
Installation and Maintenance
Install the baseplate securely inside the control cabinet and verify that the selected power supply, CPU, and I/O modules are compatible with the system configuration.
Before servicing, remove power according to the equipment safety procedure. Inspect the backplane connectors for contamination or mechanical damage. Also check the expansion connector and mounting hardware during routine maintenance.
————————————————————————————————————-
