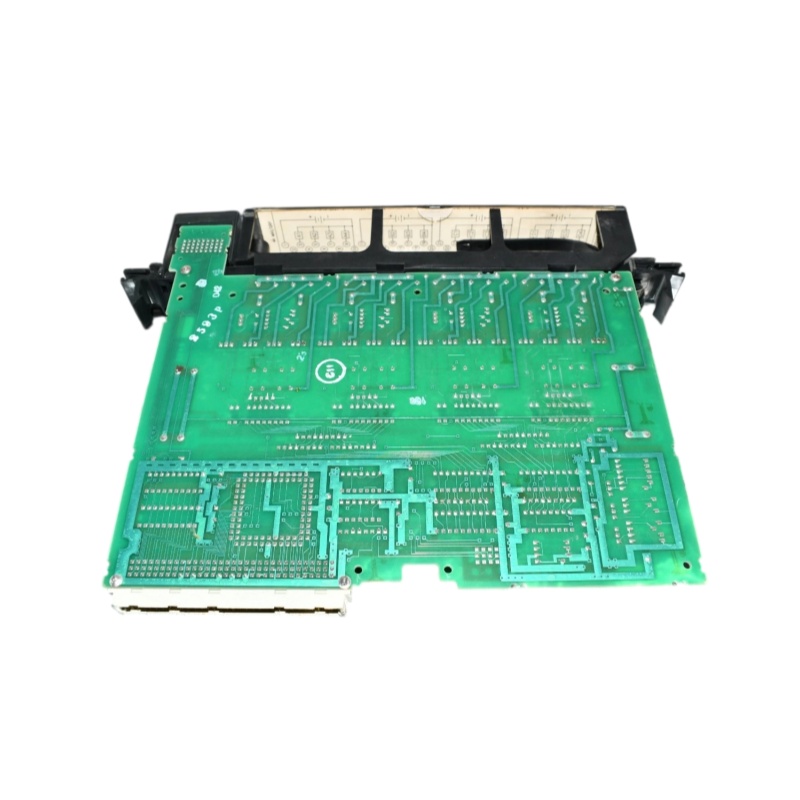

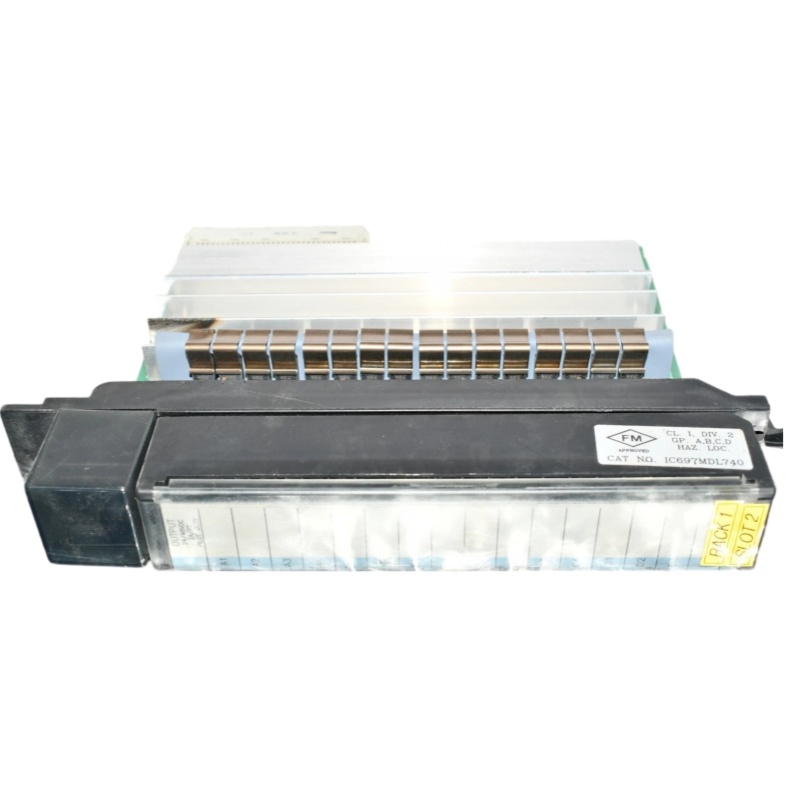

GE Fanuc IC697MDL740

The GE Fanuc IC697MDL740 is a Series 90-70 16-point discrete output module built for 24/48 VDC industrial control applications. It connects the PLC logic system with external field equipment and provides high-current DC switching for compatible loads.

Rather than acting as a standalone controller, the module operates as an output interface within the PLC rack. Its four isolated output groups provide additional flexibility when different field circuits need electrical separation.

Main Characteristics

The unit provides 16 outputs, with four points assigned to each isolated group. Its rated voltage is 24 or 48 VDC, while the specified operating range is 20 to 60 VDC. Each point supports up to 2 A, with a 4 A maximum specified for each group.

A high inrush capability is another important characteristic. The documented maximum is 20 A for 20 milliseconds, which helps accommodate loads with significant startup current.

Interface and Protection

The output architecture combines switching capability with several diagnostic and protection features.

Output indication:
LEDs provide visual information about individual output states.

Fuse monitoring:
A separate fuse indicator helps technicians identify an open internal fuse.

Electrical isolation:
The design provides 1500 V isolation between an output and the backplane, with 500 V isolation between output groups.

Mechanical protection:
The module is mechanically keyed to help prevent installation into an unsuitable slot or replacement with an incompatible module.

Where It Fits

The module is intended for GE Fanuc Series 90-70 PLC systems and can be used wherever discrete DC outputs are needed for machine-control functions.

Typical equipment may include automated production machinery, material-handling systems, process equipment, motor-control panels, and other industrial installations.

It can interface with devices such as contactors, solenoids, relays, and indicator equipment.

Maintenance Checklist

For reliable operation, maintenance personnel should periodically:

1. Verify field wiring and terminal tightness.
2. Check output LEDs during machine operation.
3. Inspect fuse indications when an output stops functioning.
4. Look for heat discoloration or damaged connectors.
5. Confirm the connected load remains within the specified electrical limits.
6. Keep the module free from excessive dust and moisture.

When replacing a unit, compare the physical configuration and complete part identification before installation.

Engineering Considerations

The module’s 2 ms maximum ON and OFF response times support fast discrete control requirements. Its 0.8 V maximum output voltage drop is also specified by the manufacturer.

The combination of isolated groups, fuse protection, status LEDs, and high inrush capacity makes the unit suitable for maintaining established industrial output circuits.

Service and Spare-Part Use

This hardware remains relevant for facilities operating legacy Series 90-70 PLC installations. A properly matched spare can simplify corrective maintenance and help avoid extended production interruptions.

For replacement projects, technicians should verify the PLC rack configuration, field voltage, load requirements, wiring, and module revision before commissioning.
