1. Product Overview

2. Core Parameters and Specifications

• Display: 12-inch color TFT touchscreen, resolution 800 x 600 pixels, supporting 65,536 colors.
• Processor: Equipped with an Intel processor (such as Celeron M 1GHz or Atom Z510PT 1.1GHz), with memory typically 512MB RAM or 2GB DDR2 SDRAM.
• Storage: 512MB flash memory and a CompactFlash slot for expandable storage.
• Power Supply: Supports 12V or 24V DC power supply, with power consumption less than 48W.
• Environmental Adaptability: Operating temperature range is usually -20℃ to +60℃, with a protection level of IP65.

______________________________________________________________________________________________

3. Product Features

• Multi-Touch Function: Supports stylus or fingertip operation, usable even when wearing gloves.
• Communication Capability: Equipped with various industrial communication interfaces, including Ethernet (10/100Mbps), USB, RS-232/RS-485, and RS-232/422/485 interfaces.
• Software Integration: Built-in Windows CE operating system, supporting communication expansion functions such as GE Genius, Data Highway Plus, DeviceNet Slave, and PROFIBUS Slave.
• Data Processing: Supports historical data recording, real-time trend analysis, and data visualization.

______________________________________________________________________________________________

4. Structure and Composition

• Display Module: 12.1-inch TFT touchscreen module with backlight (usually LED).

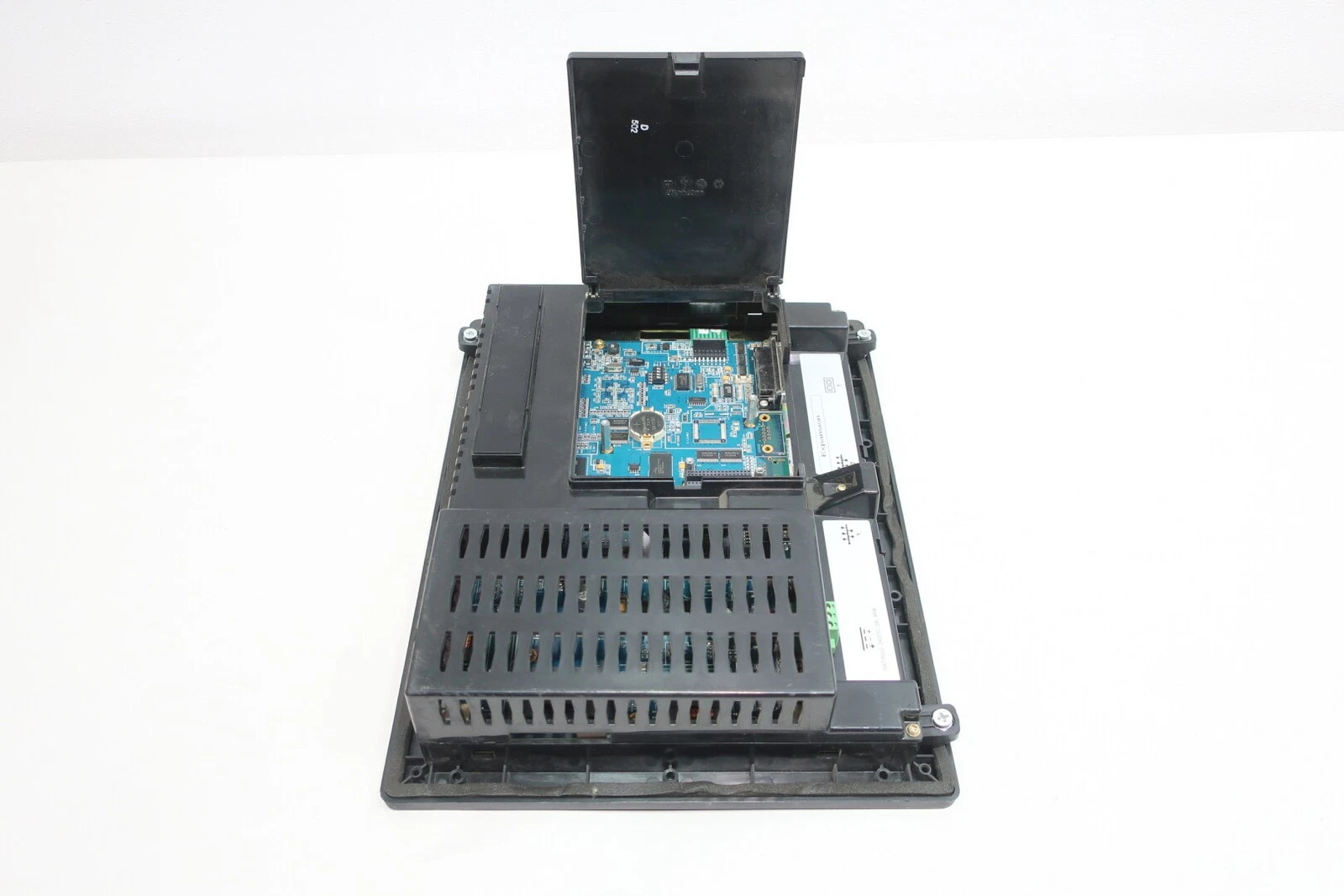

• Main Control Board: Integrates Intel processor, memory, flash memory, and CompactFlash slot.

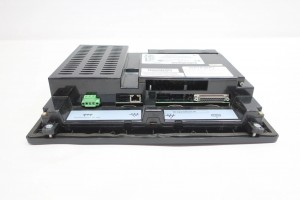

• Communication Interface Board: Provides multiple Ethernet, USB, and serial communication interfaces.
• Power Supply Module: Built-in 12/24V DC power input interface, supporting external power supply.

______________________________________________________________________________________________

5. Application Fields

• Robot Control: Used for operating and monitoring industrial robots.
• Automated Production Lines: Serves as a process control and monitoring center.
• Machine Interface: Used as a front-panel display for robots or CNC equipment.

______________________________________________________________________________________________

6. Installation and Maintenance

Installation Method

Maintenance Recommendations

• Environmental Cleaning: Keep the area around the device dry and avoid dust accumulation.
• Regular Inspection: Check the connection status of power cables and communication cables to ensure there is no looseness.
• Software Updates: Regularly update the operating system and applications through GE Genius or Proficy View software to obtain the latest features and security patches.
