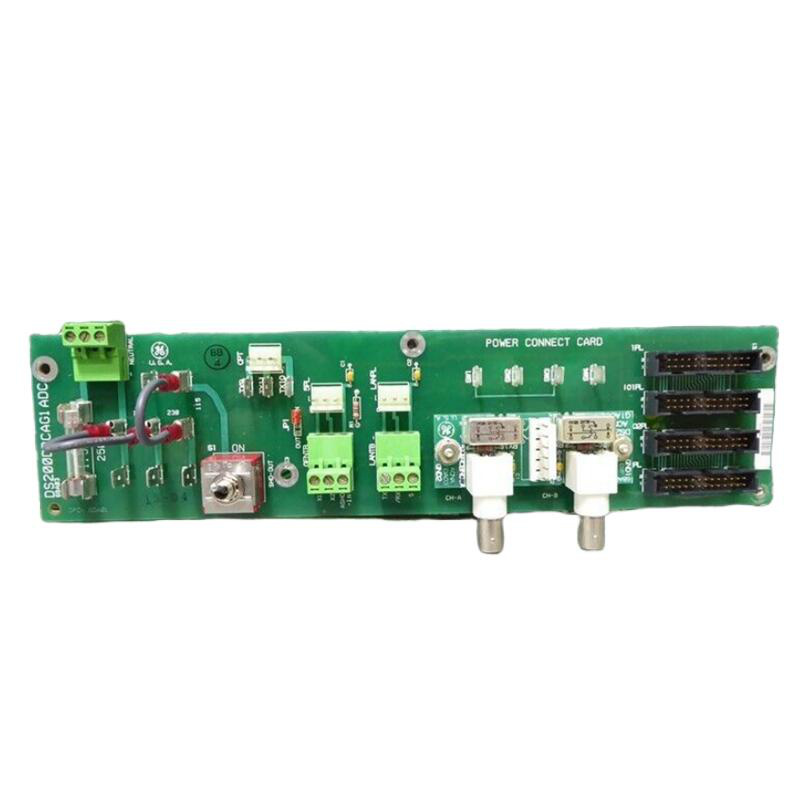

1. Product Overview

2. Parameters and Specifications

• Voltage and Current: Designed to receive and distribute commonly used industrial voltages, usually supporting voltage levels such as 24VDC, 5VDC, and 12VDC, with high current-carrying capacity.
• Operating Temperature: -40°C to +70°C (suitable for harsh industrial environments).
• Storage Temperature: -40°C to +85°C.
• Overall Dimensions: Approximately 16cm x 16cm x 12cm.
• Weight: Approximately 0.8kg.
• Protection Level: IP40 (protects internal components from touch).

______________________________________________________________________________________________

3. Product Features

• High Reliability: Adopts high-quality components and strict production processes to ensure long-term stable operation in industrial environments.
• Power Management: Can provide multiple channels of stable power output, supporting the conversion and distribution of various voltage levels.
• Compact Design: Compact structure (approximately 16cm x 16cm) helps save installation space.
• Easy Maintenance: Simple design, convenient for installation and maintenance.

______________________________________________________________________________________________

4. Structure and Composition

• Power Input Module: Receives external power signals.
• Power Output Module: Distributes power to connected equipment according to requirements.
• Interface Cable: Used to connect other control modules or electrical components.
• Heat Dissipation System: Ensures temperature control during long-term operation.

______________________________________________________________________________________________

5. Application Fields

• Industrial Automation Control Systems: As a core power distribution unit, it provides power for control modules such as PLC and DCS.
• Mechatronic Equipment: Provides power support in large mechanical equipment.
• Energy Management Systems: Used for power management in power distribution systems.
• Other Industrial Control Equipment: Any industrial scenario that requires stable power supply.

______________________________________________________________________________________________

6. Installation and Maintenance

• Installation: Usually installed by DIN rail or screw fixing. When connecting, ensure that the input and output ports correspond correctly to avoid reverse connection.
• Maintenance: Due to its compact structure, regularly check whether the terminal blocks are loose or corroded, keep good ventilation and heat dissipation, and remove dust.
