Overview

Parameters

• Input Channels: 16 discrete input channels.
• Input Type: Digital input, supporting 2-wire or 3-wire proximity switch input. The input voltage range is 0-30VDC or 93-132VAC (depending on specific application scenarios).
• Communication Interface: Supports the Genius bus communication protocol, which can be directly connected to controllers or communication adapters without the need for additional backplanes or processors.
• Physical Dimensions: Approximately 8.83”×3.34”×3.91” (224.5mm × 85mm × 100mm).
• Operating Temperature: 0-60°C
• Other Parameters: Supports programmable thresholds (25%-85%), input filtering, short-circuit/open-circuit detection, software configuration, etc.

Product Features

• High Reliability and Intelligent Functions: Equipped with photoelectric isolation, input filtering, and debouncing functions. It supports programmable thresholds and advanced diagnostic functions, which can detect short-circuit and open-circuit faults.
• Flexibility and Compatibility: Supports Daisy-chain network topology, can be directly connected to controllers or communication adapters, and is compatible with various industrial control scenarios.
• Standards and Certifications: Complies with the IEC 61131-2 standard and meets industrial automation standards.

Structure and Composition

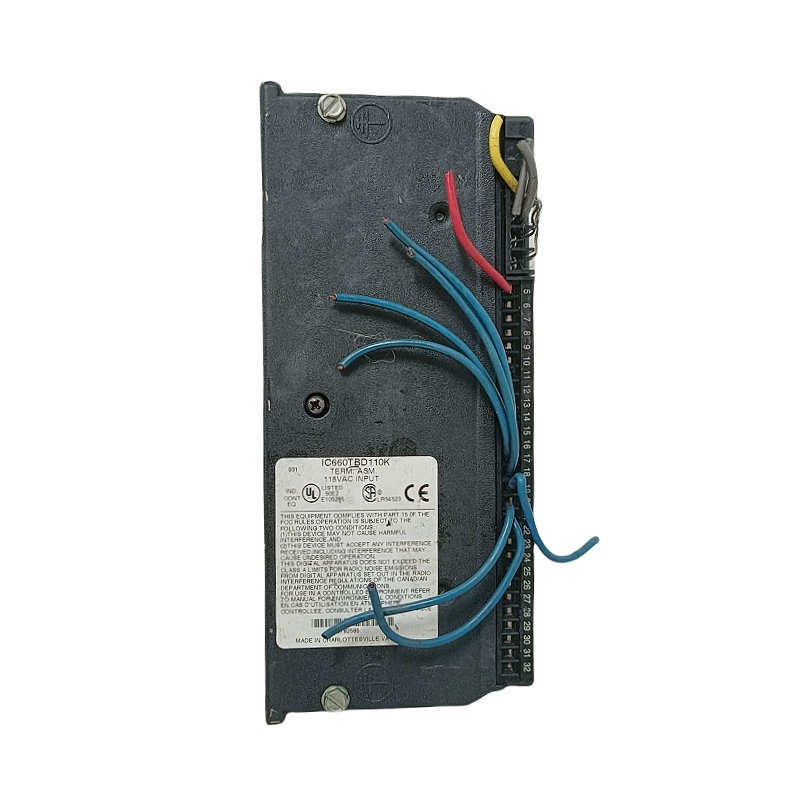

• Physical Structure: Compact design with modular installation, supporting front and back installation. It can connect to the Genius bus through the bottom terminal block.
• Communication and Interface: Supports Genius bus communication without the need for additional backplanes or processors, and is compatible with multiple communication protocols (such as RS-232, Ethernet).
• Installation Method: Supports DIN rail mounting or direct mounting. The installation environment must be clean and well-ventilated, and proper grounding is required.

Application Fields

• Industrial Automation: Used in scenarios such as industrial control, process control, discrete manufacturing, and packaging machinery.
• Specific Applications: Monitors the status of devices such as switches, limit switches, and buttons, and is used for signal acquisition and control in automated control systems.

Installation and Maintenance

• Installation: Ensure the installation environment is clean and well-ventilated, achieve proper grounding, and avoid short circuits or overloads. During installation, attention should be paid to the module spacing (at least 2 inches).
• Maintenance: Regularly check the connection wires and grounding conditions, and clean the module regularly to prevent dust and moisture from affecting its performance. Fault diagnosis can be carried out through software configuration and diagnostic functions.
