GE IC756T000 Digital Output Module

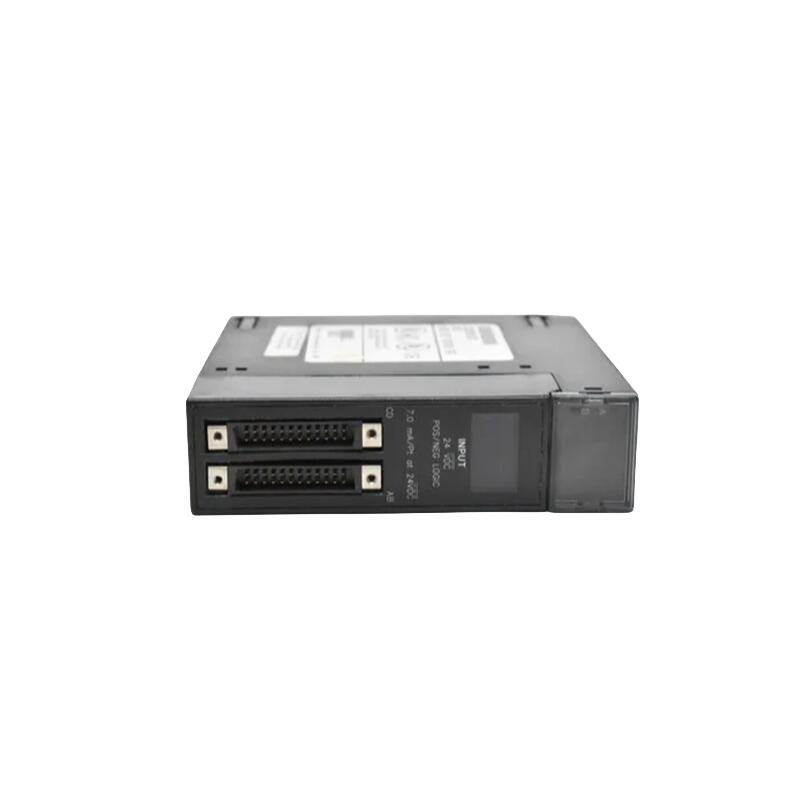

GE IC756T000
GE IC756T000 is a high-performance digital output module under General Electric (GE), specifically designed for its RX3i series Programmable Automation Controllers (PAC). As a key component of the PACSystems RX3i platform, this module is dedicated to converting the controller’s logical instructions into reliable discrete signals, which are used to drive on-site actuators such as relays, contactors, solenoid valves, indicator lights, and motor starters. Featuring a high-density design, GE IC756T000 provides a large number of output channels, significantly saving control cabinet space and reducing the cost per point. Its core value lies in offering powerful, stable, and protective output driving capabilities for industrial automation systems. Equipped with excellent load-driving performance and electrical isolation characteristics, it ensures accurate and reliable execution of control commands in demanding industrial environments, making it a critical component for realizing automated execution in discrete manufacturing, process control, and infrastructure applications.
Product Parameters
- Product Model: IC756T000
- Manufacturer: GE (General Electric)
- Product Type: Digital Output Module (for RX3i PAC System)
- Output Type: Transistor Output (Source Type)
- Rated Output Voltage: 24 VDC
- Number of Output Channels: 32 Channels
- Rated Current per Channel: 0.5 A
- Maximum Total Current per Module: 4 A (8 points per group, maximum 2 A per group)
- On-State Voltage Drop: Maximum 1.5 VDC @ 0.5 A
- Isolation Method: Optical Isolation (between channels and logic circuits)
- Isolation Voltage: 1500 VAC (for 1 minute continuously)
- Power Consumption (Backplane): 5 V DC, 100 mA (typical value)
- Operating Temperature: 0°C to +60°C
- Installation Method: Horizontal or vertical installation on RX3i rack
Structure and Composition
GE IC756T000 module adopts a compact modular design, with its housing made of durable industrial plastic, offering excellent shock and vibration resistance. The front of the module is equipped with a green LED status indicator for each output channel, which displays the on/off status of the output point in real time, greatly facilitating on-site debugging and fault diagnosis. The module connects to the backplane of the RX3i series via a robust European-style connector at the bottom, enabling it to obtain logic-side power and exchange data with the CPU. On-site wiring is completed through the detachable terminal block on the front of the module, which supports a wide range of wire gauges and ensures convenient and reliable wiring. Internally, the module’s core consists of 32 independent optical isolators, power transistor output drive circuits, and corresponding protection circuits (such as overcurrent protection and clamping protection for inductive loads), all working together to ensure the module can safely and reliably drive various on-site loads.
Key Features and Advantages
- High-Density Output and Space Saving: The module provides up to 32 digital output points in a single slot width, achieving excellent channel density. This greatly optimizes the space utilization of the control cabinet and significantly reduces the average cost per output point, making it particularly suitable for automation applications that require driving a large number of actuators.
- Powerful Driving and Protection Capabilities: Each output channel can provide a continuous current of up to 0.5 A, which is sufficient to directly drive most relays, solenoid valves, and indicator lights. The module integrates robust protection functions, including overcurrent protection and freewheeling clamping diodes for turning off inductive loads. These features effectively prevent damage to the module itself and the backplane caused by load faults or inductive shocks, ensuring system robustness and long service life.
- High Reliability and Excellent Isolation: Each output channel is electrically isolated from the internal logic circuit via an optocoupler, with an isolation voltage of up to 1500 VAC. This design effectively blocks the impact of voltage transients, noise interference, and ground potential differences on the sensitive controller logic at the on-site side, ensuring stable system operation in harsh electrical environments.
- Intuitive Diagnosis and Maintenance: Each channel is equipped with an independent LED status indicator, allowing quick and intuitive confirmation of whether the output command has been correctly executed. This greatly simplifies the installation, commissioning, and fault troubleshooting processes, helping to quickly identify whether the problem originates from the controller logic, the module itself, or the on-site equipment, thereby reducing downtime.
Application Fields
GE IC756T000 module is widely used in industrial automation control fields that require a large number of discrete outputs. In discrete manufacturing, it is commonly used in automobile assembly lines, large packaging machinery, material conveying systems, and robot workstations to control the start and stop of cylinders, valve islands, alarms, and drives. In process industries such as water and wastewater treatment, and food and beverage processing, it is used to control the switching of pumps, mixers, and electric valves. Additionally, in infrastructure fields like airport baggage sorting and warehouse automation, IC756T000 is also an ideal choice for realizing reliable automated control.
Installation and Maintenance
Pre-Installation Preparation
Before installing the GE IC756T000 module, ensure that the power supply of the entire RX3i system is completely turned off. Confirm that the slot on the baseboard matches the module model. Calculate the total current demand based on the load conditions to ensure it does not exceed the module and group limits. Equip inductive loads with external protection devices (such as surge suppressors) and prepare appropriate wiring tools.
Maintenance Recommendations
During daily maintenance, mainly check the LED indicators of each channel to confirm whether the output status is consistent with expectations. Regularly inspect the wiring on the terminal block to ensure it is secure and free from signs of overheating or corrosion. If a channel malfunctions, first check the external load, fuse, and power supply. Keep the module well-ventilated to avoid dust accumulation. Before performing any wiring or replacement operations, be sure to turn off the power first.
————————————————————————————————————-
