GE IS200AEADH4ADA

I. Overview

The GE IS200AEADH4ADA is a high-performance module designed specifically for industrial automation. It is part of the GE IS200 series or Mark VI control system. Primarily used for the control and monitoring of industrial processes, it boasts high reliability, high precision, and excellent compatibility. This module can function as an input/output module, analog signal processing module, digital control module, etc., and is widely applied in fields such as industrial automation, power control, motor control, heating control, and lighting control.

II. Parameters

Input Voltage: 24V DC (some models support 12V DC or 0~500V DC)
Output Voltage: 0~10V DC (some models support 12V DC)
Operating Temperature Range: -40°C to +85°C (some models support -40°C to +70°C)
Protection Level: IP65 (some models are IP67)
Dimensions: Usually 230 x 160 x 64 mm or 100 x 50 x 30 mm
Weight: Approximately 0.6 kg or 1 kg
Communication Interfaces: Supports RS-232, RS-485, Ethernet (supports Modbus RTU, TCP, CANopen, and EtherNet/IP protocols)
Analog Input Channels: 16 channels (some models support more channels)
Analog Output Channels: 2 channels (some models support more channels)
Resolution: 12-bit (some models support higher resolution)

III. Product Features

High Reliability: Uses high-quality materials and advanced manufacturing processes to ensure long-term stable operation.
High Precision: Equipped with high-precision analog signal processing capabilities, suitable for industrial process control.
Easy Installation and Configuration: Modular design, facilitating integration into existing systems.
Strong Anti-Interference Ability: Capable of resisting surge, wave loss, drop, and spike interference from industrial power grids.
Multi-Protocol Support: Supports various industrial standard protocols such as Modbus RTU, TCP, CANopen, and EtherNet/IP.
Compact Design: Saves space, suitable for installation in control cabinets or equipment.
High Compatibility: Compatible with GE Fanuc Series 90-70 PLC, facilitating integration into existing control systems.

IV. Structure and Composition
The GE IS200AEADH4ADA module typically consists of the following parts:

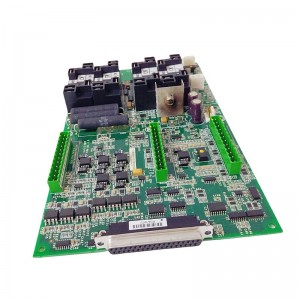

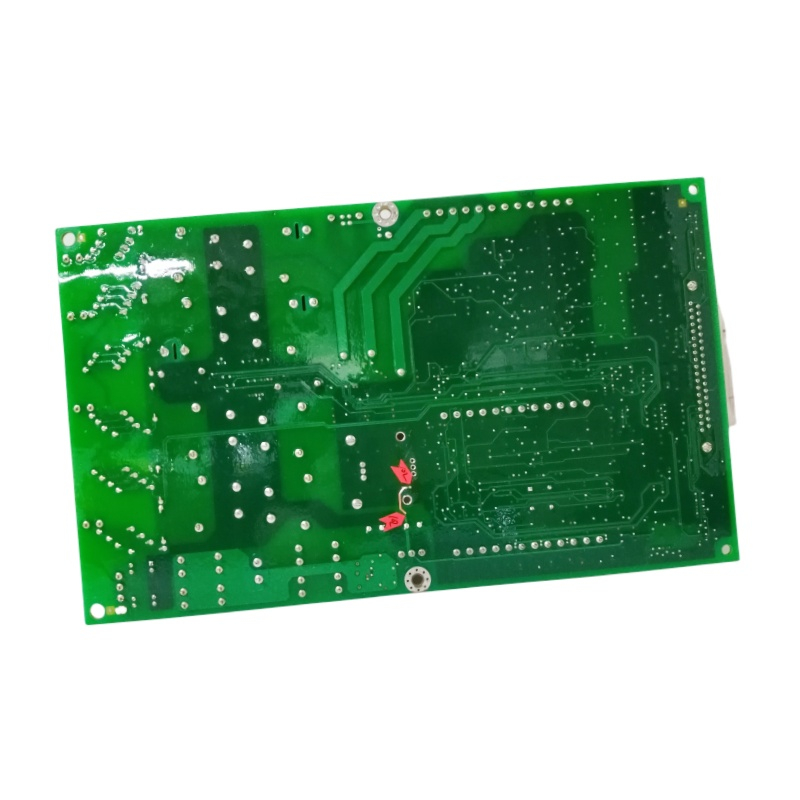

Circuit Board: A rectangular circuit board with drilled holes at each corner, three vertical terminal strips, and a board parallel to the long side, with each terminal featuring a 12-pin connector.
Heat Sinks: The module contains two heat sinks for heat dissipation.

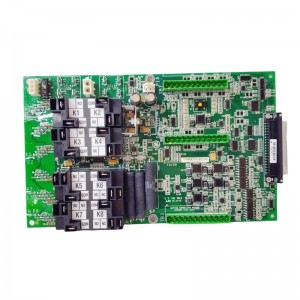

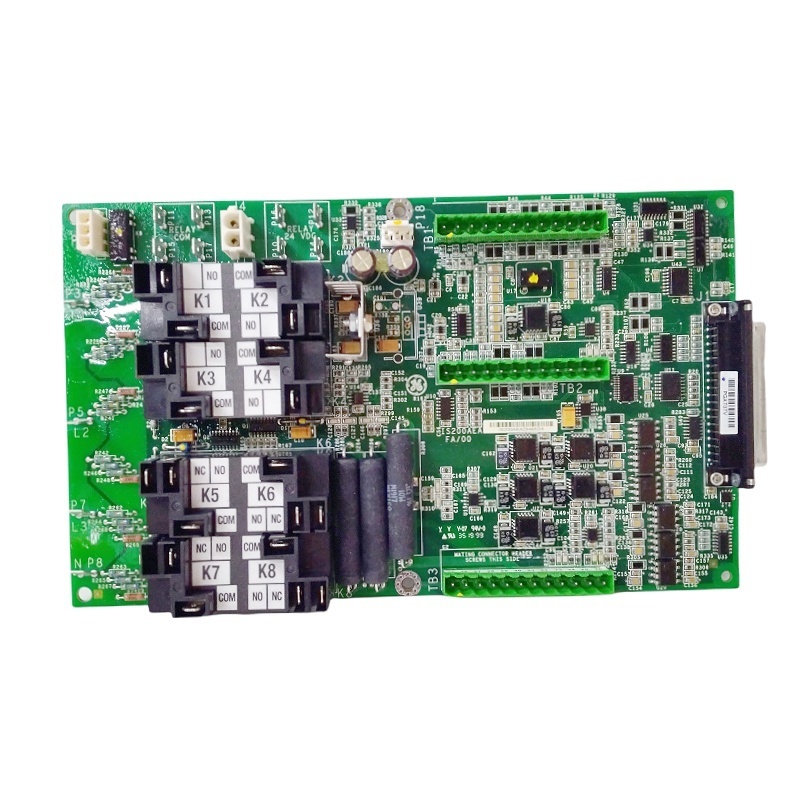

Relays: The module includes eight relays for controlling the on-off of circuits.
High-Voltage Capacitors: Used to stabilize the power supply voltage.
Resistors: Used to regulate current and voltage.
Integrated Circuits: Used for signal processing and logic control.

V. Application Fields

Industrial Automation: Used to control motors, heating elements, lighting equipment, etc.
Power Systems: Used for monitoring and controlling generator sets, regulating current and voltage.
Oil and Gas Industry: Used for automated control of oil and gas fields, monitoring pressure, flow, and temperature.
Chemical Industry: Used for precise control of chemical processes.
Transportation Systems: Used in vehicle and traffic signal control systems.
Environmental Protection Industry: Used in water resource management and environmental protection projects.
Renewable Energy Systems: Used in wind or solar power plants to monitor environmental conditions and optimize power generation.

VI. Installation and Maintenance
Installation Methods: Supports DIN rail mounting or panel mounting.
Installation Steps:

Ensure the installation environment meets the requirements for operating temperature and humidity.
Install in accordance with the installation guide provided by the manufacturer.
Use appropriate tools and equipment to avoid damaging the module.

Maintenance Recommendations:

Regularly check whether the connections and wiring of the module are secure.
Clean the surface of the module to prevent dust and dirt from affecting heat dissipation.
Regularly test the input and output functions of the module to ensure its normal operation.

Troubleshooting:

If the module is abnormal, first check whether the power supply and communication interfaces are normal.
Check whether the input and output signals of the module are within the normal range.
If the problem cannot be solved, contact the manufacturer or professional technicians for repair.
