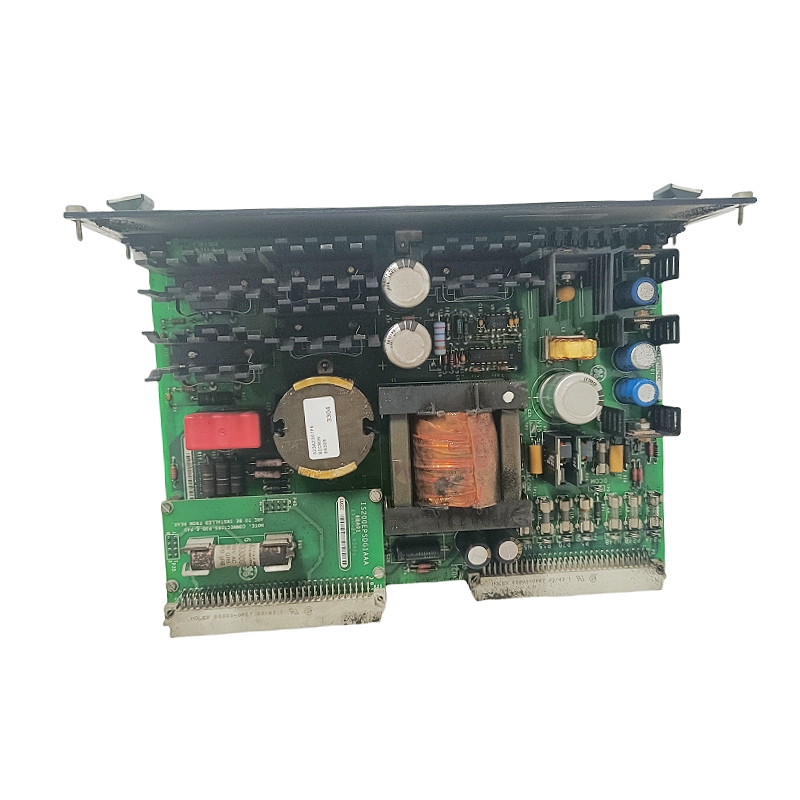

GE IS200EPSMG1ABB Excitation Power Module
GE IS200EPSMG1ABB
Functional Description
The GE IS200EPSMG1ABB provides regulated DC power for electronic assemblies within GE excitation control systems. It belongs to the EPSM Group 1 family, which serves the excitation control section of the EX2100 platform.
The module accepts a nominal 125 VDC supply and converts it into several voltage levels for control boards and external excitation equipment. This conversion helps maintain the electrical requirements of connected devices during normal system operation.
Internal Design and Operation
The power conversion circuit uses two main stages. First, a buck regulator reduces the input voltage to an intermediate DC level. Next, a push-pull inverter generates the required output voltages through a transformer-based circuit. This arrangement provides the voltage conversion and electrical isolation needed by the system.
Important design elements include:
- A regulated power conversion circuit.
- Transformer-based output isolation.
- Multiple DC output connections.
- Fuses for designated power circuits.
- Front-panel LEDs for output status indication.
- Backplane connectors for integration with the excitation control assembly.
Operating Characteristics
The module provides several supply rails for different system functions:
| Output | Typical Function |
|---|---|
| +5 VDC | Digital control electronics |
| +15 VDC | Positive supply for compatible electronic circuits |
| -15 VDC | Negative supply for compatible electronic circuits |
| +24 VDC | Auxiliary control and excitation equipment |
| Other designated outputs | Additional system-specific power requirements |
The exact output availability and electrical ratings depend on the connected loads and the applicable hardware configuration. Refer to the relevant GE manual for detailed limits.
Role in Industrial Control
Stable power distribution is essential to the operation of excitation control electronics. The IS200EPSMG1ABB supports this requirement by supplying the appropriate DC voltages to compatible boards and auxiliary devices.
It is particularly relevant to generator excitation installations in utility power plants and industrial generation facilities. In these environments, dependable power conversion helps support control-system continuity and effective generator operation.
Maintenance and Troubleshooting
If the module does not provide the expected outputs, technicians should check the incoming DC supply, backplane connections, fuse condition, and LED indications. Abnormal output voltages may also require inspection of connected loads and downstream wiring.
————————————————————————————————————-
