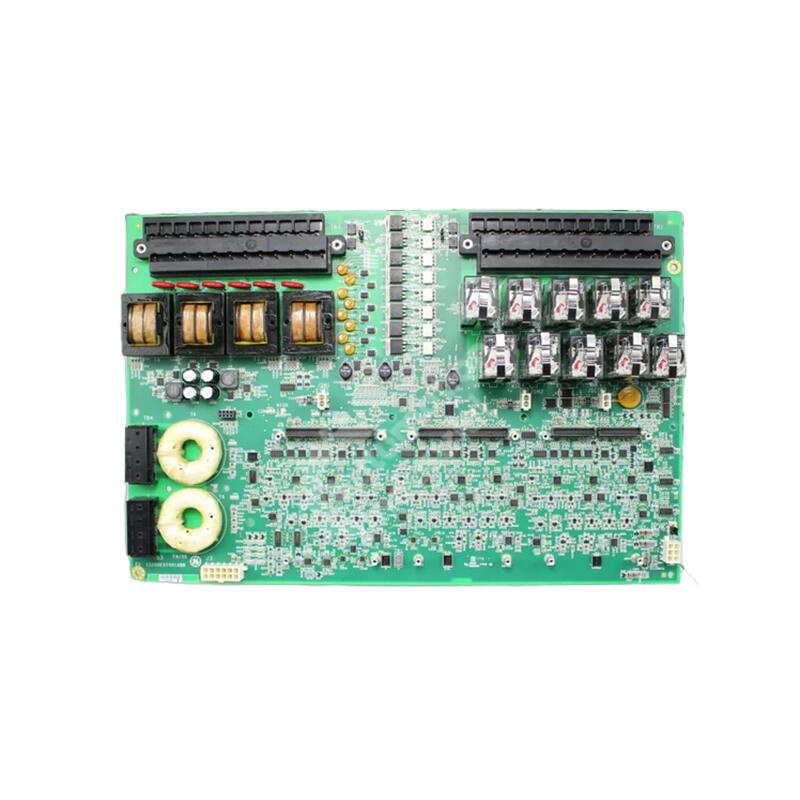

GE IS200ESYSH1AAA

Functional Description

The GE IS200ESYSH1AAA plays an important role in the signal interface architecture of GE EX2100e excitation control systems. Its primary responsibility is to connect external electrical measurements and control signals with the internal excitation control hardware.

In generator applications, accurate voltage and current feedback is essential for stable excitation regulation. This board provides dedicated interface capabilities for PT and CT signals while supporting additional analog and digital I/O requirements.

Main Operating Functions

Electrical Signal Acquisition

The board accepts generator voltage and current measurement signals. Its input circuitry supports the connection of external PT and CT circuits.

Signal Conditioning

Integrated isolation and interface components help prepare electrical signals for use by the excitation control system.

Control Signal Interface

The board supports general-purpose control inputs, analog signal connections, and relay output interfaces.

System Communication

Compatible high-speed serial link daughterboards provide communication between the external interface circuits and the excitation controller.

Product Characteristics

• Manufacturer: General Electric
• Part Number: IS200ESYSH1AAA
• Functional Designation: ESYS
• Equipment Category: Excitation Control Interface Board
• System Compatibility: EX2100e
• Hardware Group: H1
• Control Architecture: TMR
• Measurement Inputs: PT and CT
• Interface Connections: Six Sub-D connectors

Design and Integration

The board uses a dedicated printed circuit board architecture with multiple electrical interface sections. Its design incorporates isolation transformers, signal processing circuitry, and external connector interfaces.

Furthermore, the ESYS architecture supports compatible terminal and communication daughterboards. This arrangement provides a structured connection between field wiring and the main excitation controller.

Typical Industrial Applications

The IS200ESYSH1AAA is suitable for generator excitation installations where dependable electrical feedback and control signal integration are required.

Typical environments include large power stations, turbine generator facilities, industrial electrical control rooms, and synchronous generator excitation cabinets.

Maintenance Recommendations

For continued operating reliability, inspect the board for connector contamination, damaged components, and signs of overheating. Verify PT and CT wiring, check signal transmission, and review system diagnostics during scheduled maintenance.

Replacement and commissioning should follow the applicable GE EX2100e technical documentation, particularly when working with redundant control configurations.

————————————————————————————————————-
