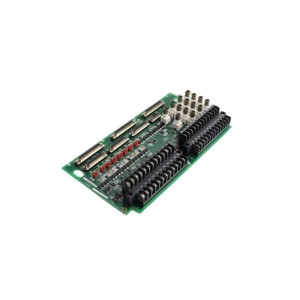

GE IS200GGXIG1A Printed Circuit Board

Short Description:

The IS200GGXIG1A is a printed circuit board belonging to the Mark VI series manufactured by GE Boards&Turbine Control. It is part of the Speedtronic gas/steam turbine management series. As a component of the innovative series board racks in the Mark VI system, this circuit board is responsible for system control, monitoring, and protection, and can be configured in triple redundancy or simplex form.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: General Electric

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

GE IS200GGXIG1A

Overview

Parameters

Function: Serves as an extended load source board, providing control and isolation between the high-voltage power bridge and innovative series board racks such as (BPII) and (BICI). It can also convert RS422 signals into fiber optic signals for gating IGCT switchgear. It can connect up to 12 power devices.
Interfaces: Equipped with various built-in I/O interfaces, including power input, output, and feedback connectors, as well as voltage feedback and fiber optic connectors for communication with other boards.
Grounding: Includes grounding bars for quiet and noisy circuits.
Other Features: Contains an isolated serial ID chip, 14 TP test points, 9 LEDs, capacitors, and resistors, but no adjustable hardware devices or fuses.

Product Features

Function: Acts as an expander load source board, offering control and isolation between the high-voltage power bridge and innovative series board racks.
Communication: Supports the conversion of RS422 signals to fiber optic signals for gating IGCT switchgear.
Redundancy: Configurable in triple redundancy or simplex form.
Reliability: Designed for industrial environments with high reliability and stability.

Structure and Composition

Structure: Adopts a printed circuit board (PCB) structure, containing various electronic components and interfaces.
Composition: Includes power input, output, and feedback connectors, voltage feedback and fiber optic connectors, grounding bars, test points, LEDs, capacitors, etc.

Application Fields

Applications: Mainly used for the control and monitoring of gas and steam turbines, falling into the fields of industrial automation and energy management.
Industries: Widely applied in power generation, energy, industrial automation, and other related industries.

Installation and Maintenance

Installation: Installed in control cabinets, usually integrated with other boards and systems.
Maintenance: Requires regular inspection and maintenance to ensure stable system operation. Replacement and repair services are supported.

————————————————————————————————————-
