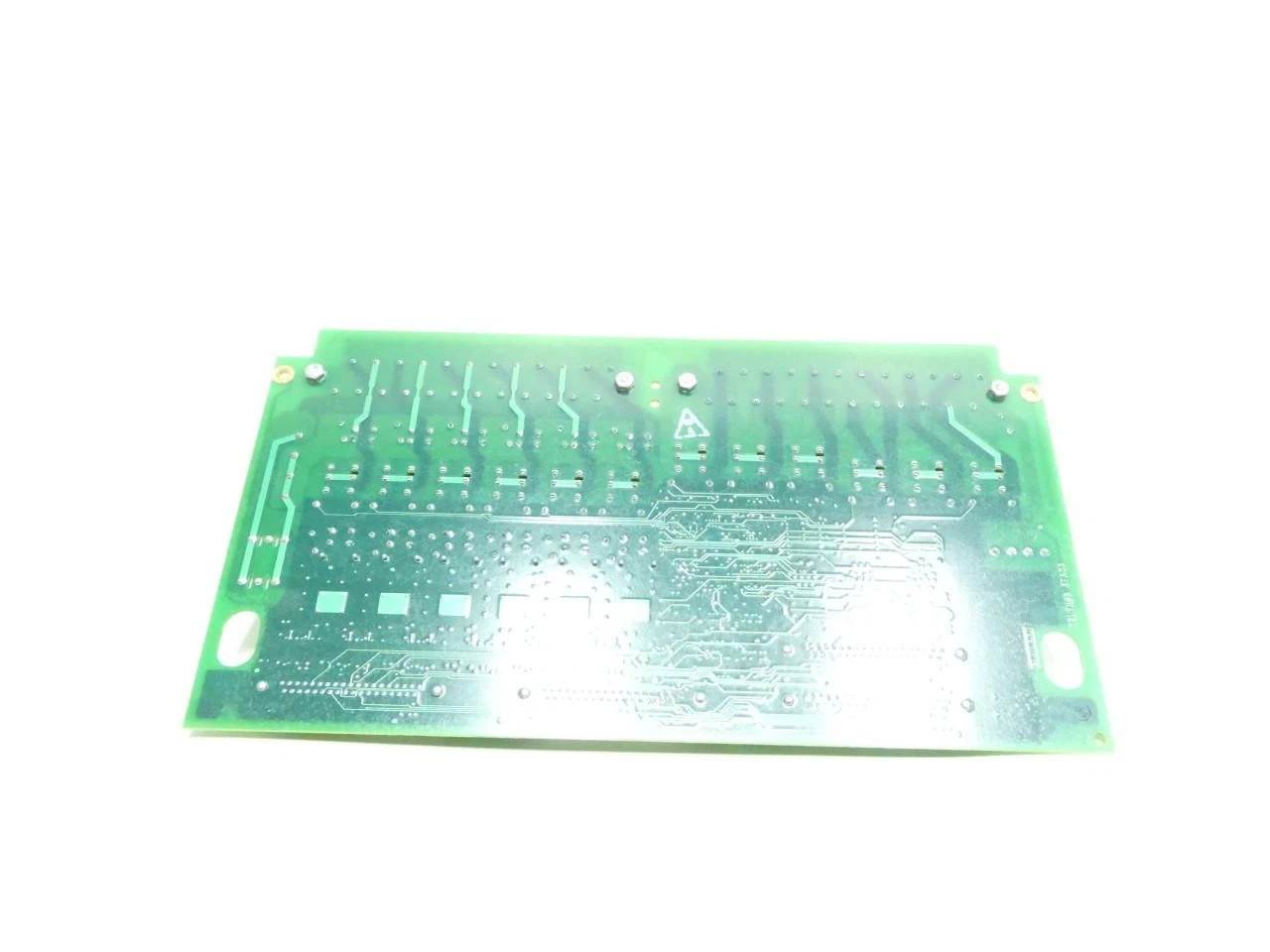

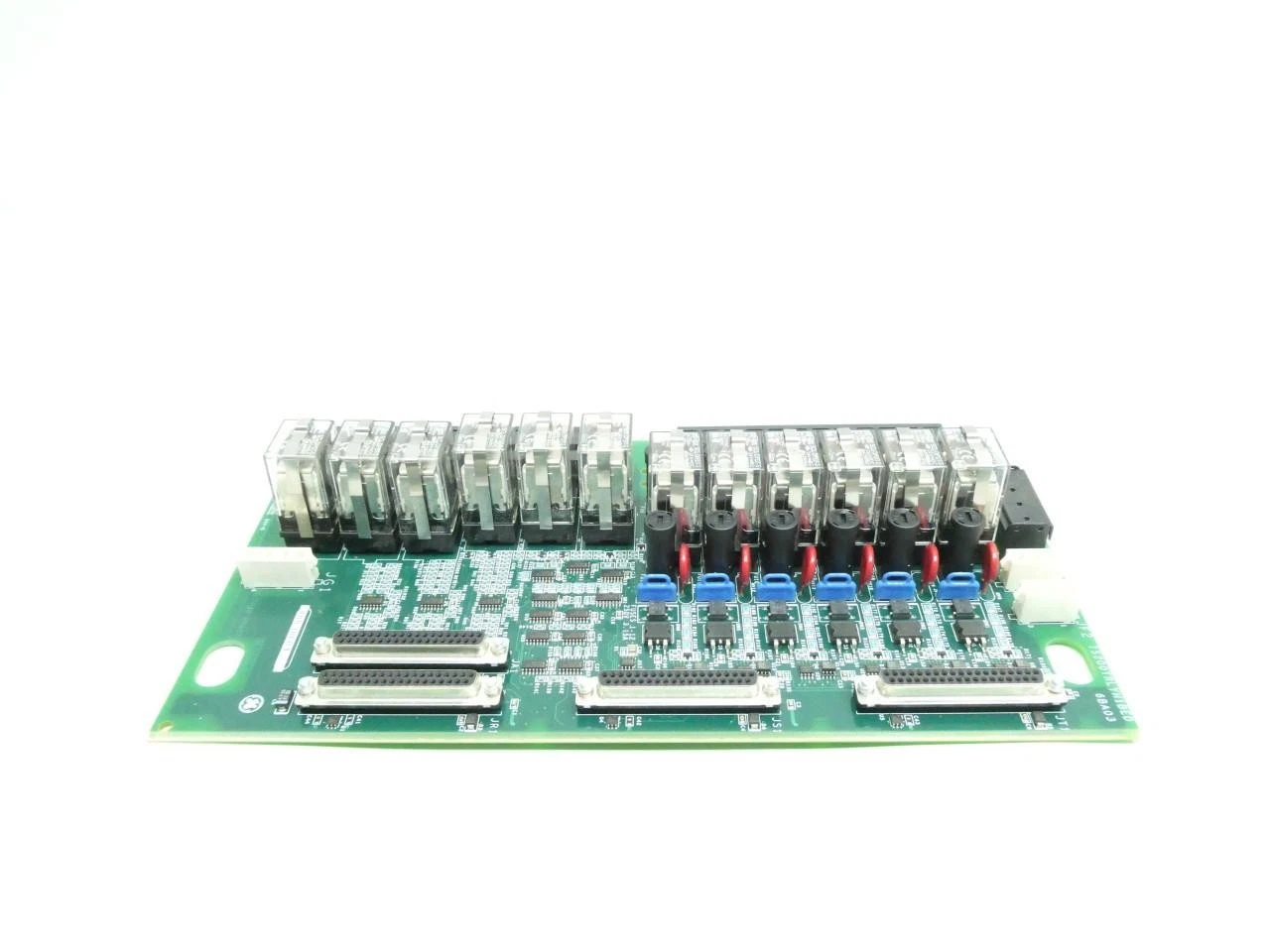

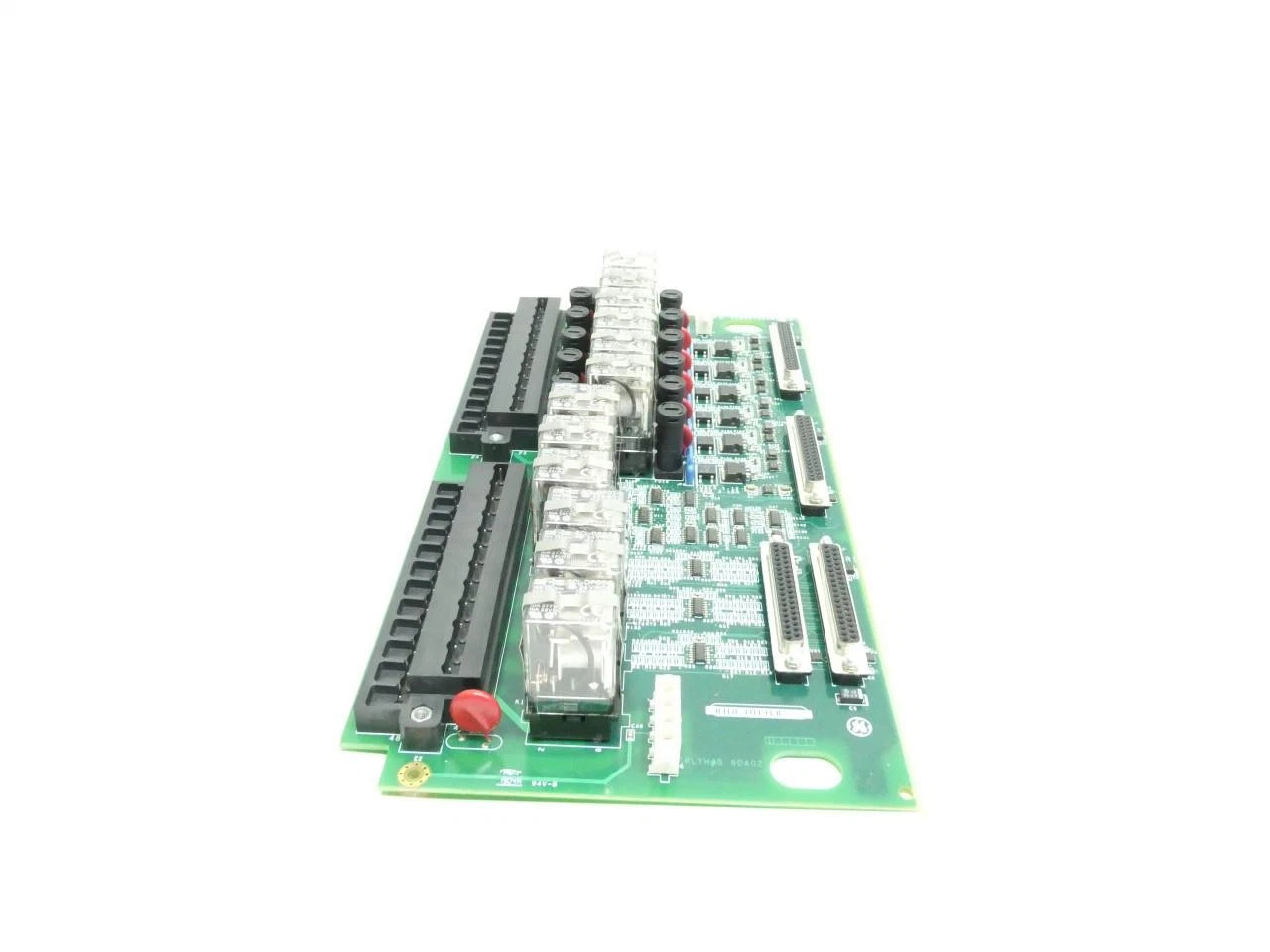

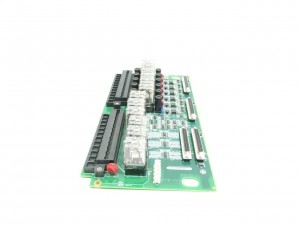

Ge IS200TRLYH1BED Terminal Relay Board
Ge IS200TRLYH1BED
GE IS200TRLYH1BED is a core module in General Electric (GE) Mark VI series control systems, commonly known as the “Termination Relay Board”. It is mainly used in turbine control systems to realize signal isolation, relay control and system safety protection.
______________________________________________________________________________________________________________
1. Core Overview
- Model Interpretation: IS200TRLYH1BED (or IS200TRLYH1B) is the standard model of this series. It is usually used with IS200TRLYH1C, IS200TRLYH1D, etc., for different control levels.
- System Belonging: It belongs to GE Fanuc’s Mark VI control platform and is a key accessory for turbine and generator set control systems.
- Main Functions: It provides relay output and circuit termination functions, responsible for receiving instructions from the main control system (such as IS200DSPXH2 DSP module) and controlling actuators such as solenoid valves and switching valves.
______________________________________________________________________________________________________________
2. Key Parameters & Features
- Operating Environment: Designed for industrial environments, it can withstand a temperature range of -40℃ to 85℃, and the protection level meets industrial control requirements.
- Electrical Specifications: It usually supports a 24V voltage system, and the relay contact type (normally open or normally closed) can be selected according to the specific configuration of the circuit board.
- Physical Dimensions: Standard IS200 module size, easy to install on 35mm DIN rails or corresponding control cabinets.
______________________________________________________________________________________________________________
3. Structure & Composition
- Relay Array: Multiple vertically arranged relays/contactors for switching circuits.
- Electronic Components: Transistors, solid-state capacitors, MOV (Metal Oxide Varistor), etc., are used for signal amplification and protection.
- Terminal Blocks: Provide multiple terminals for connecting signal lines of external sensors or actuators.
______________________________________________________________________________________________________________
4. Application Fields
- Turbine Control: Widely used in the control systems of gas turbines and steam turbines.
- Power Automation: Used for relay protection, wiring protection and automatic control in power systems.
- Complex Automation Systems: Play a role in petrochemical, petroleum and other industrial fields that require precise control.
______________________________________________________________________________________________________________
5. Installation & Maintenance
- Installation: Usually adopts DIN rail installation method or is fixed on a dedicated module tray. During installation, ensure that the communication interface with the main control system is correctly connected.
- Maintenance: As a hardware module, the main maintenance work includes regularly checking whether the terminal connections are loose, whether the relay contacts are worn, and cleaning dust to ensure a good heat dissipation environment.
————————————————————————————————————-
