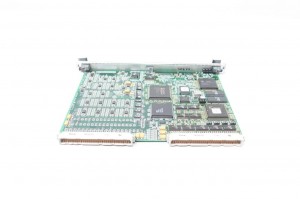

Ge IS200VVIBH1CAB Vibration Monitoring Board
Ge IS200VVIBH1CAB
1. Product Overview and Core Parameters
GE IS200VVIBH1CAB is a dedicated Vibration Board designed by General Electric (GE) for the Mark VI system, used for condition monitoring of high-pressure industrial equipment such as gas turbines and steam turbines.
|
Parameter
|
Specification/Feature
|
Description
|
|---|---|---|
|
Model
|
IS200VVIBH1CAB
|
Dedicated for Mark VI series
|
|
Function Positioning
|
Vibration Board
|
Processes probe signals from DVIB/TVIB terminal boards
|
|
Connected Probes
|
Up to 200 (per board)
|
Supports Bentley Nevada, Proximitor, Velomitor and other probes
|
|
Power Supply
|
24 VDC
|
Standard industrial voltage
|
|
Processing Capacity
|
High-speed analog signal digitization
|
Uploads signals to VME bus controller
|
|
Applicable System
|
GE Mark VI (Speedtronic series)
|
Gas turbine and steam turbine management system
|
______________________________________________________________________________________________
2. Product Features
- High-precision Condition Monitoring: Designed specifically for high-precision vibration detection, capable of capturing key operating conditions such as rotor eccentricity, differential expansion, and axial position.
- Strong Compatibility: Compatible with various Bentley Nevada series probes (such as seismic, accelerometers) and can be directly powered in Simplex or TMR mode.
- Industrial-grade Reliability: Adopts industrial-grade chips such as Xilinx Spartan FPGA, with the ability to operate stably for a long time in harsh environments such as high temperature and vibration.
- Easy Maintenance: Modular design supports quick probe replacement and maintenance, suitable for compact equipment room spaces.
______________________________________________________________________________________________
3. Structure and Composition

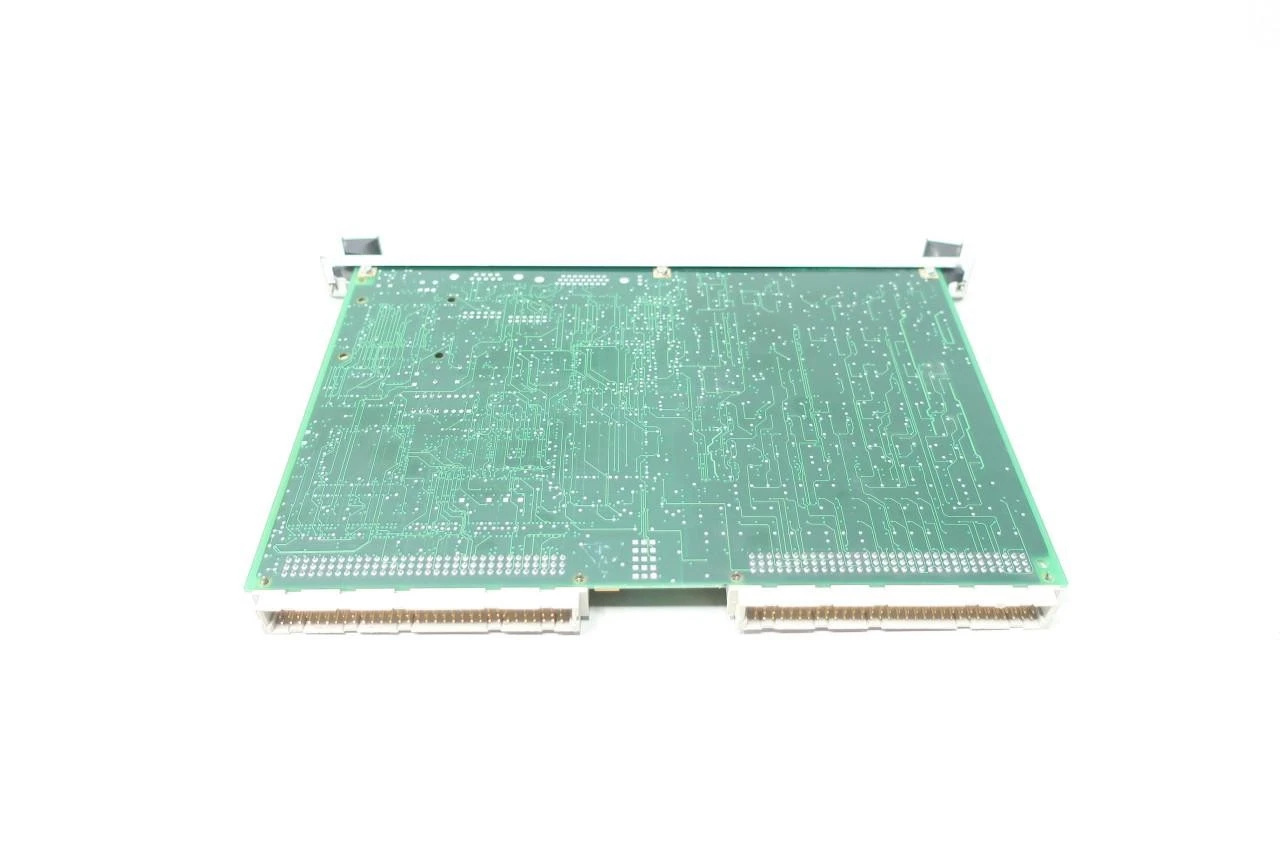

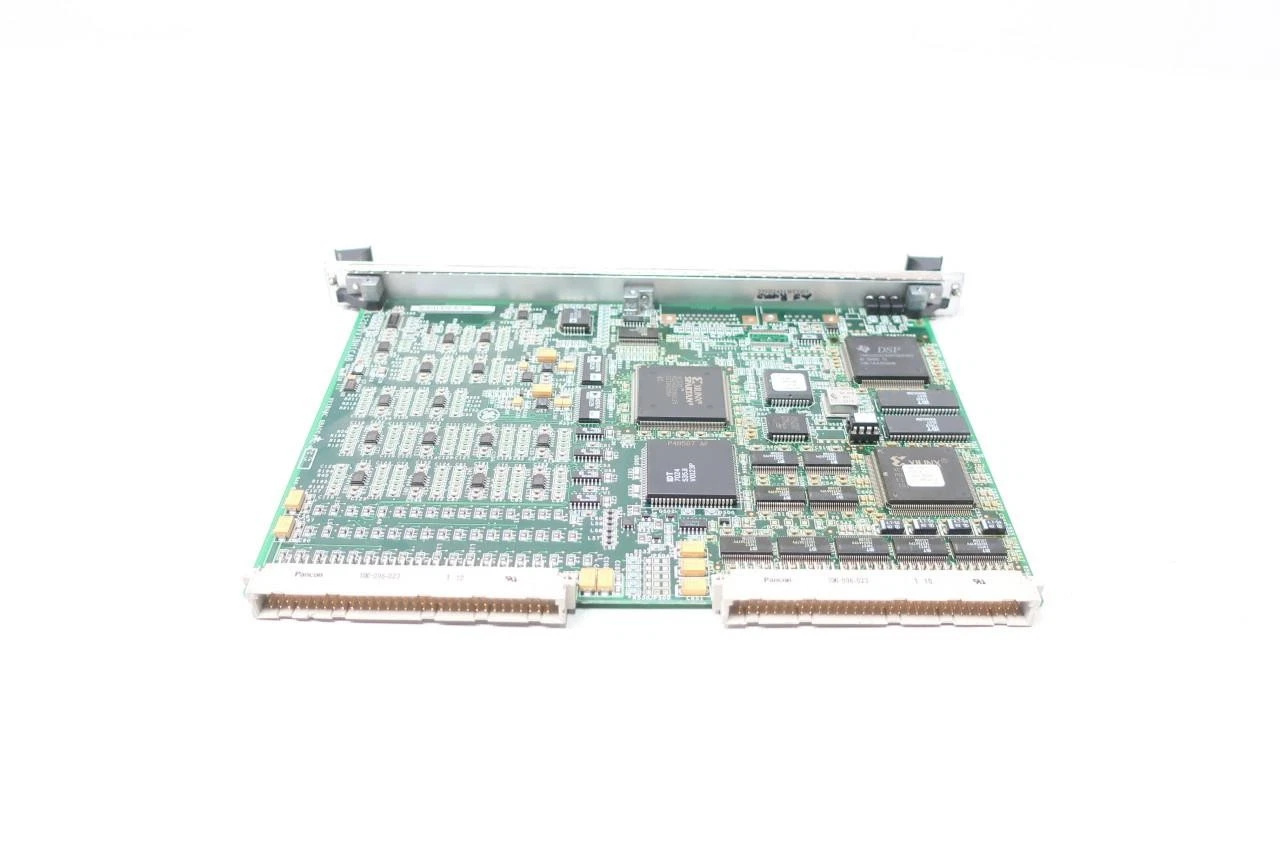

Main PCB Board: Includes inductors, beads, diodes, capacitors, resistors and FPGA chips.
Interfaces:
- Backplane Connectors: Usually two backplane connectors (P1, P2) for power supply and signal bus connection.
- Terminal Board: Used to connect probes of DVIB or TVIB terminal boards.

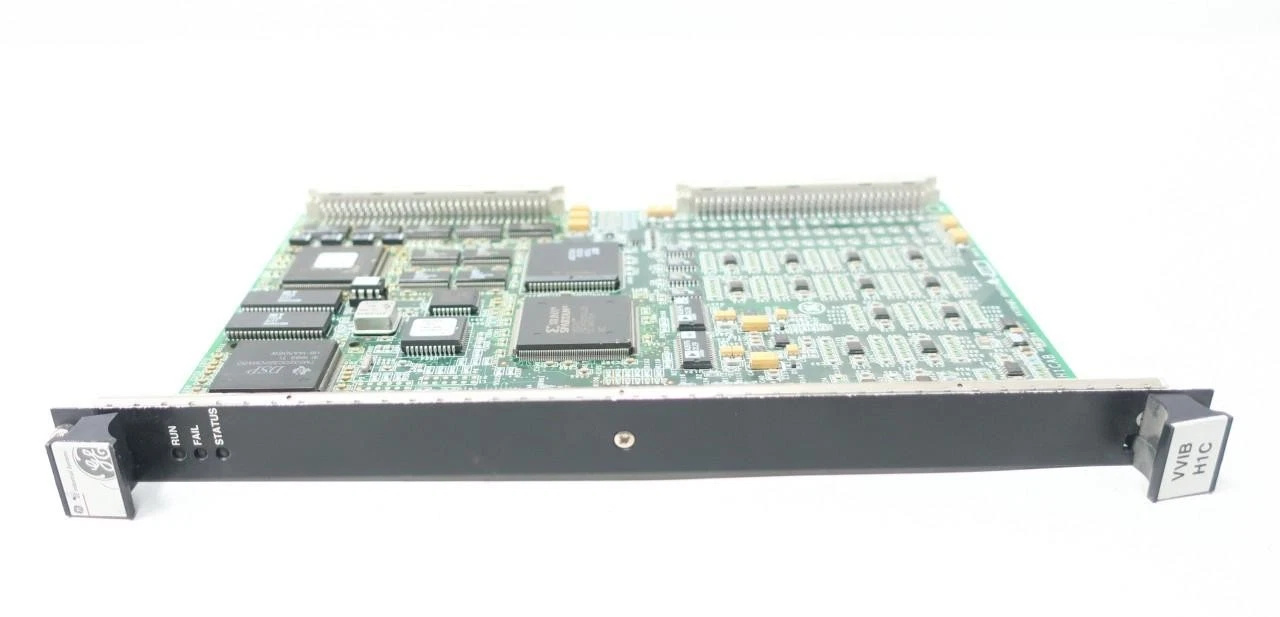

- Indicator Lights: Usually equipped with three LED indicator lights (Status, Fault, Running).
______________________________________________________________________________________________
4. Application Fields
- Gas Turbines: Used to monitor rotor vibration and axial position of gas turbines.
- Steam Turbines: Monitors the mechanical health status of steam turbines during operation.
- Power Stations: Widely used in units of power plants to prevent mechanical failures and improve safety.
______________________________________________________________________________________________
5. Installation and Maintenance Guide
Installation Steps
- Power-off Inspection: Before starting installation, ensure the equipment is completely powered off to avoid the risk of high-voltage electric shock.
- Mechanical Fixing: Use screws to fix the module on the PCB board in the chassis to ensure it is firm and free of looseness.
- Backplane Connection: Correctly connect the P1 and P2 backplane connectors to the corresponding interfaces on the cabinet backplane.
- Probe Connection: Install the corresponding DVIB or TVIB terminal board (probe board) in place and connect the probe cables.
Maintenance Notes
- Environmental Cleaning: Regularly clean dust and impurities on the module surface to prevent poor heat dissipation.
- Indicator Light Check: Pay attention to the status of LED indicator lights during operation and troubleshoot in a timely manner if there is any abnormality.
- Spare Parts Management: It is recommended to keep a replacement board on hand for quick replacement when the main board fails.
————————————————————————————————————-
