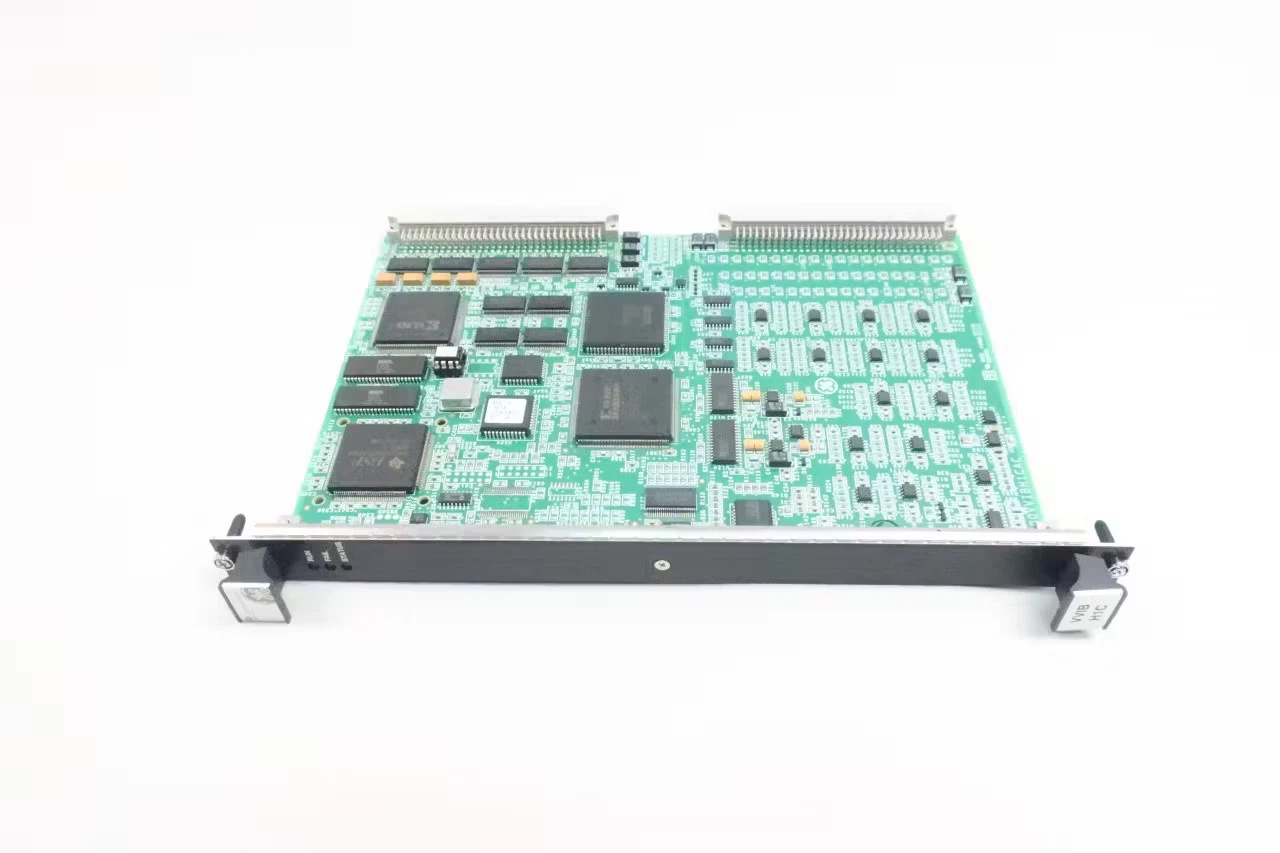

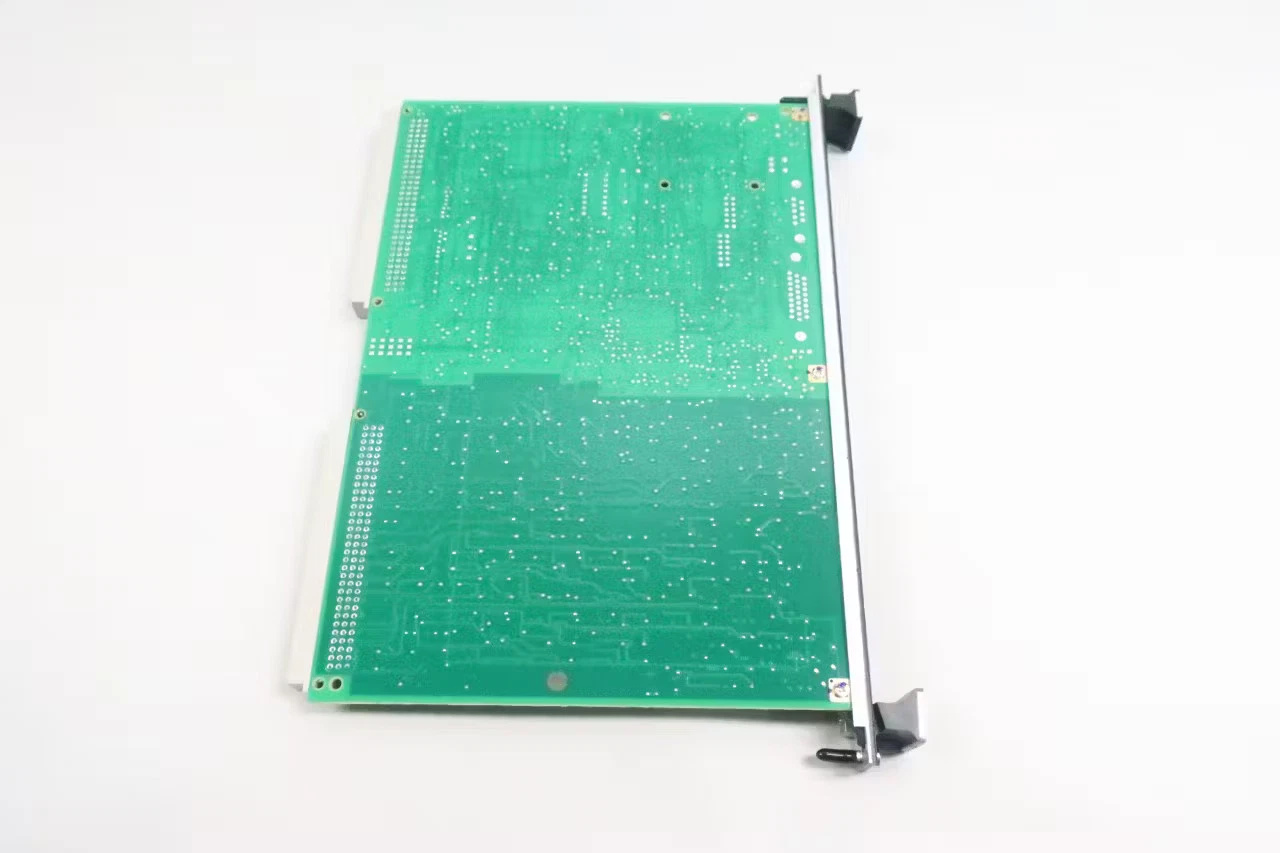

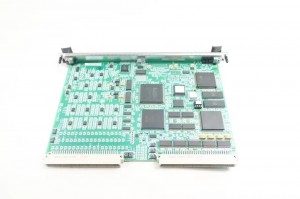

Ge IS200VVIBH1CAC Printed Circuit Board
Ge IS200VVIBH1CAC
1. Overview
GE IS200VVIBH1CAC is a dedicated PCB (Printed Circuit Board) whose main task is to process signals from vibration probes (such as DVIB or TVIB terminal boards). It digitizes analog signals and transmits them to the main controller via the VME bus for real-time monitoring and fault protection.
______________________________________________________________________________________________
2. Core Parameters
- Model: IS200VVIBH1CAC
- Operating Voltage: 24V DC (Input), -0.6V DC (Output)
- Storage: 8 KB NVRAM (for storing fault records)
- Communication Interface: VME Bus (communicates with the main controller)
- Protection Level: IP67 (dustproof and waterproof)
- Dimensions/Weight: Approximately 100mm x 50mm x 30mm, weighing about 0.85 kg
______________________________________________________________________________________________
3. Product Features
- High Reliability: Designed specifically for harsh environments, with a robust structure and high protection level.
- Multifunctional Protection: Supports four key mechanical protection functions (vibration, rotor eccentricity, differential expansion, rotor axial position).
- Strong Compatibility: Compatible with seismometers, Proximitors, Velomitors and accelerometer probes provided by brands such as Bentley Nevada.
- Digital Accuracy: Can accurately convert multiple analog signals (from probes) into digital signals for system analysis.
______________________________________________________________________________________________
4. Structure and Composition
- Core Board: Responsible for signal processing and digital conversion.
- Connection Terminals: Usually connected to probes through DVIB or TVIB terminal boards; one board can connect up to 14-200 probes, depending on the configuration.
- Indicator Lights: The board is equipped with multiple LED indicator lights (usually 3) to display the board status or fault indication.
______________________________________________________________________________________________
5. Application Fields
- Gas Turbines/Steam Turbines: As part of the Mark VI system, it is used to monitor the vibration status of turbines and prevent mechanical failures.
- Power Plants: Used for real-time monitoring and fault early warning of units.
- Industrial Automation: Other industrial scenarios that require monitoring of mechanical vibration status.
______________________________________________________________________________________________
6. Installation and Maintenance
Installation
It is usually installed inside the control cabinet or on the rack near the unit. Due to its small size (approximately 100mm x 50mm x 30mm) and light weight, installation is relatively convenient.
Connection
It needs to be connected to the DVIB/TVIB terminal board, and ensure that the power supply (24V DC) and VME bus interface are correctly connected.
Maintenance
- Regular Inspection: Check the status of LED indicator lights to ensure there is no fault alarm.
- Firmware Update: Perform firmware or parameter updates when necessary according to GE’s official recommendations.
- Replacement: If the board is damaged or has persistent faults, it usually needs to be replaced as a whole.
————————————————————————————————————-
