1. Overview

2. Key Parameters

3. Product Features

• High Performance & Reliability: Adopts high-speed processors and large-capacity memory, and supports a variety of industrial standard communication protocols, which guarantees stable and uninterrupted operation even in harsh and complex industrial environments, meeting the high-precision control demands of core industrial equipment.

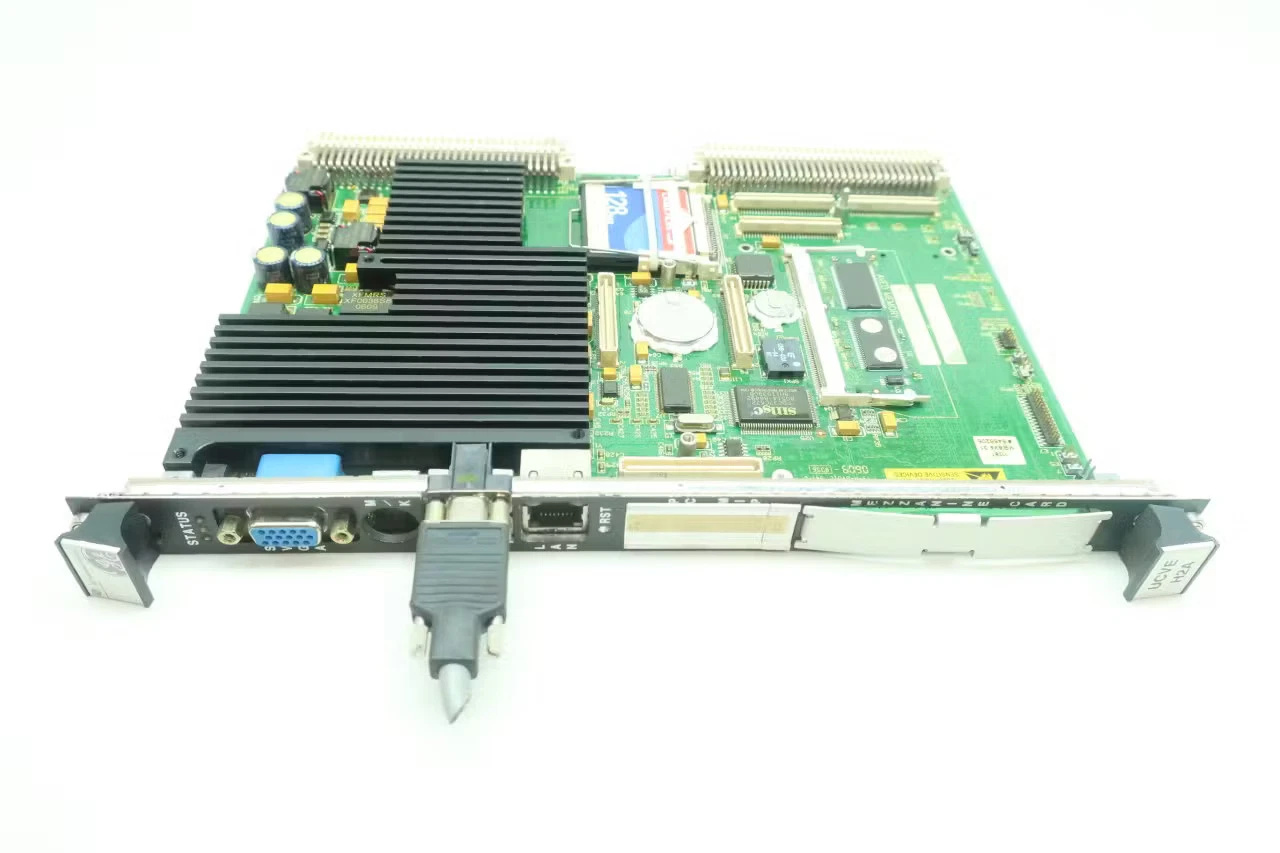

• Dual-Sided Design: The control board adopts a dual-sided structure and is equipped with a front panel integrated with LED status indicators and a recessed reset button. This design facilitates real-time monitoring of equipment operating status and quick fault recovery, simplifying daily operation and troubleshooting.
• Flexible Scalability: Supports multiple fieldbus interfaces including Profibus and Modbus TCP/IP, and is equipped with SRTP support. Users can customize I/O modules according to actual application requirements, realizing flexible configuration and diversified docking with industrial equipment.
• Industrial-Grade Durability: Complies with VME standards, adapts to wide-range high and low temperature working environments, and is built with redundant design and complete fault detection mechanisms, effectively enhancing the stability and service life of the control system.

_______________________________________________________________________________________________________

4. Structure & Composition

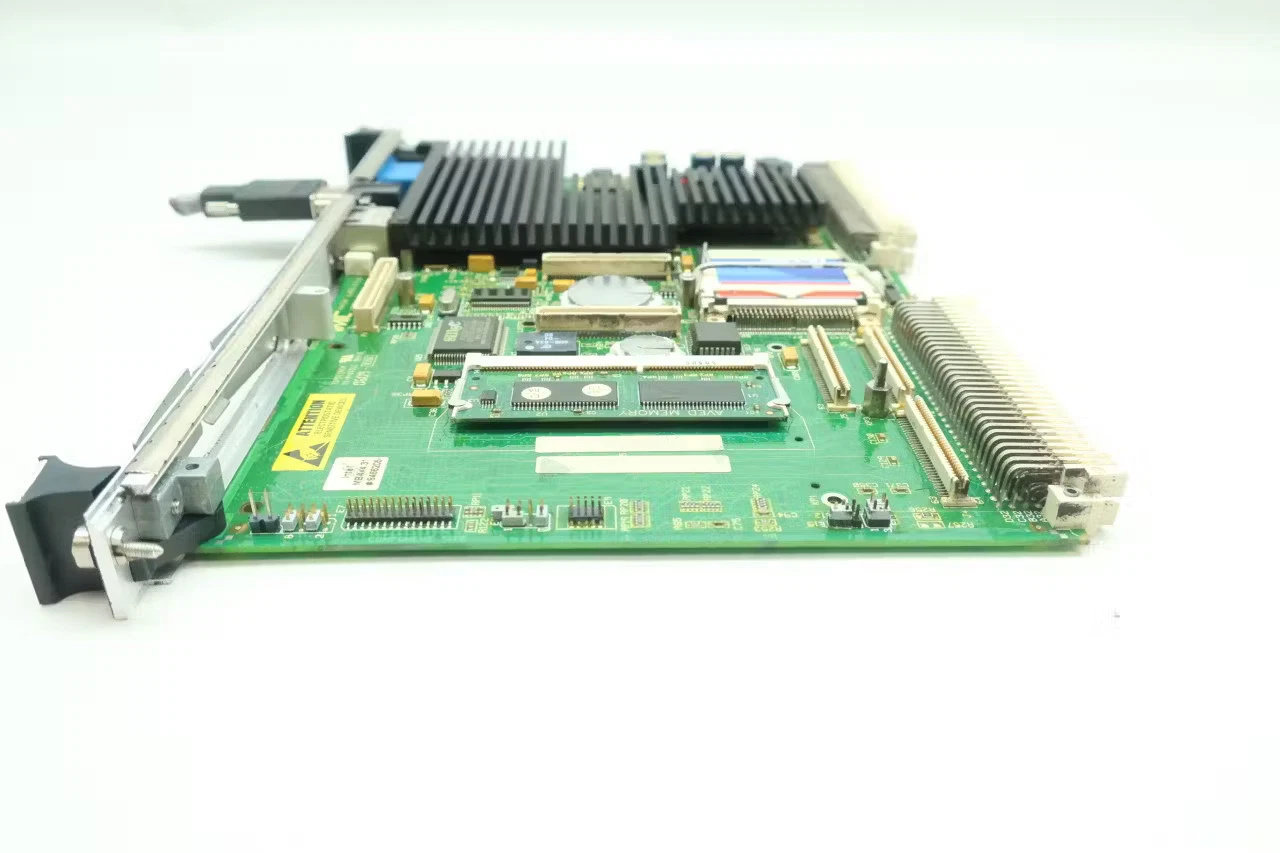

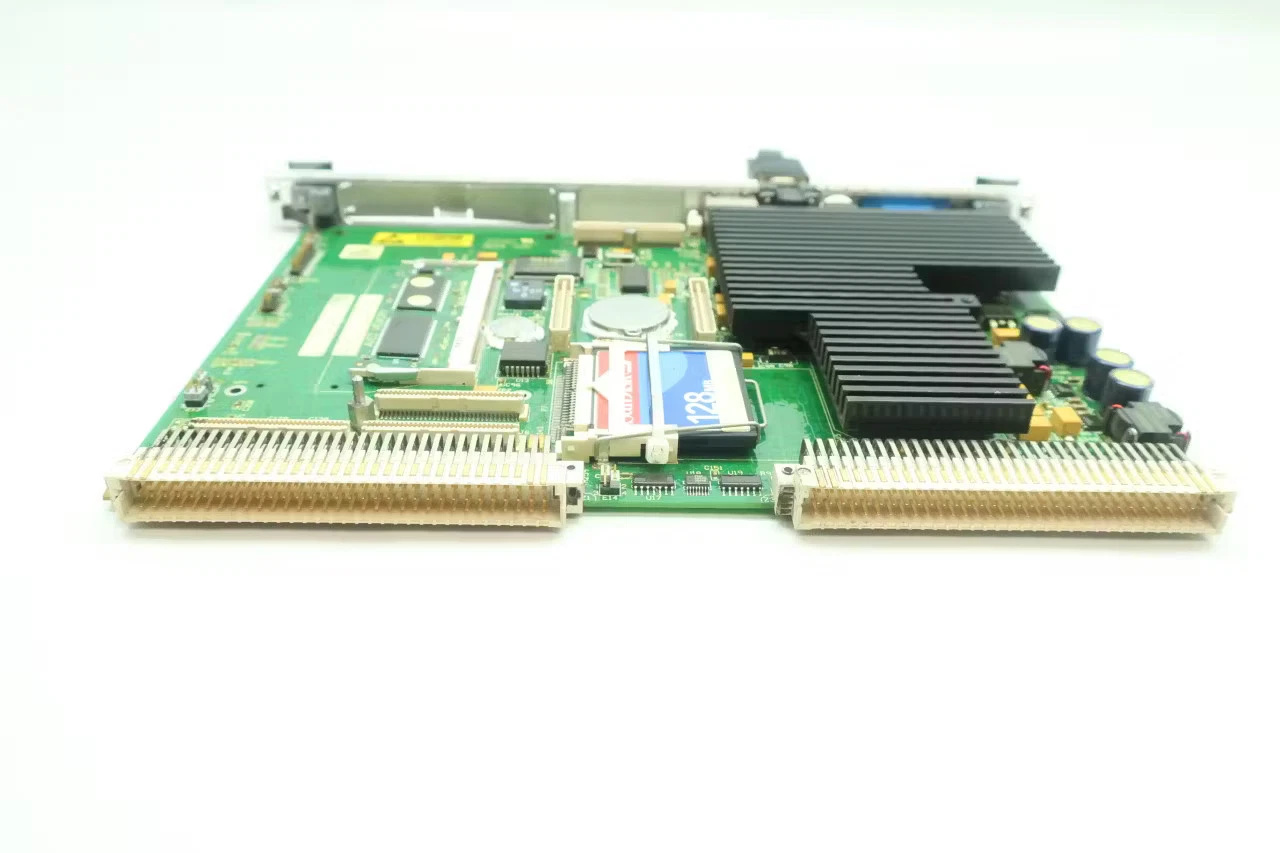

• Main Control Board: Carries core hardware including the central processor, memory, storage modules and all communication interfaces, which is the core carrier for signal processing and data control of the product.
• Front Panel: Integrates network communication ports, serial ports, LED status indicators and reset buttons, realizing intuitive display of equipment status and convenient human-machine interaction for operation and reset.
• Power Management Module: Built-in electronic components such as capacitors, resistors, chokes and lithium batteries, supports 24V DC input, and can stably output 5V DC voltage, providing reliable power supply for the normal operation of the control board.

_______________________________________________________________________________________________________

5. Application Fields

• Energy & Power Industry: Applied to steam turbine control, power plant automation systems and other core power equipment control scenarios.
• Petroleum & Natural Gas Industry: Used for on-site data collection, transmission and industrial process control of oil and gas projects.
• Manufacturing Industry: Suitable for papermaking machinery control, robot control systems of mainstream brands such as ABB, YASKAWA, KUKA and FANUC.
• Aerospace Industry: Applied to data processing and control systems in military aerospace fields.

_______________________________________________________________________________________________________

6. Installation & Maintenance Recommendations

6.1 Installation Requirements

• Ensure the rack environment meets the specified operating temperature (-30°C to 65°C) and power supply requirements (generally 24V DC), avoiding extreme environments that affect equipment performance.
• Connect the network and communication ports on the front panel correctly, and verify the accuracy of signal line connections to prevent signal transmission failures caused by poor wiring.
• Conduct software configuration strictly in accordance with the official manual (such as GEH-6371) to ensure the matching and normal operation of software and hardware.

6.2 Maintenance Suggestions

• Inspect the control board regularly, clean up dust accumulation in a timely manner, and keep the operating environment dry to avoid short circuits or component damage caused by moisture.
• Monitor the system operating status in real time through LED indicators; when minor faults occur, use the recessed reset button to quickly restore the system to normal operation.
• If component replacement is required, please contact authorized dealers or professional technical personnel, and use genuine original accessories to ensure the performance stability and service life of the equipment.
