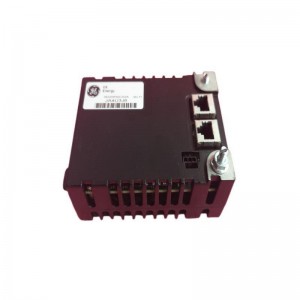

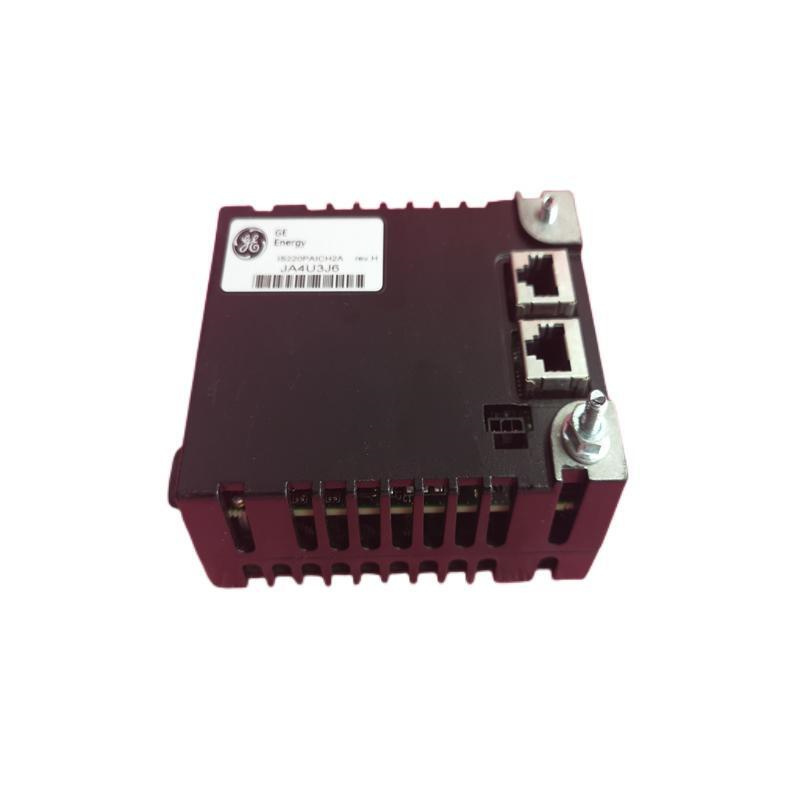

GE IS220PAICH2B

Product Overview

The GE IS220PAICH2B is an analog input/output pack developed for the Mark VIe distributed control system. It provides an interface between one or two I/O Ethernet networks and a compatible analog input terminal board. The module combines a processor board with dedicated analog acquisition and output circuitry to support field signal processing in industrial control applications.

It is commonly used in turbine control environments where accurate analog measurements and dependable output signals support equipment monitoring and process regulation.

Technical Specifications

Key Features

• Multiple analog inputs: Supports up to ten analog input channels for industrial measurement signals.
• Flexible signal ranges: The first eight inputs support configurable voltage and current ranges.
• Analog output capability: Provides two current-loop outputs for compatible field devices.
• Ethernet connectivity: Transfers process data through supported I/O networks.
• Diagnostic indicators: Integrated LEDs assist technicians with status checks and troubleshooting.

Applications

The module is suitable for gas turbine control, steam turbine automation, power generation facilities, and industrial process monitoring. It can interface with compatible field instruments that measure variables such as pressure, flow, and equipment operating conditions.

Installation and Maintenance

Before installation, confirm compatibility with the terminal board, especially the applicable TBAI revision. Check the network connections, power supply, and field wiring against the system diagrams.

For routine maintenance, inspect connectors, wiring, and status indicators. If signal readings become unstable, verify the sensor, terminal board, and network connections before replacing the module.

————————————————————————————————————-
