Ge IS220PDOAH1B Discrete Output Packet Module
Ge IS220PDOAH1B
1. Product Overview

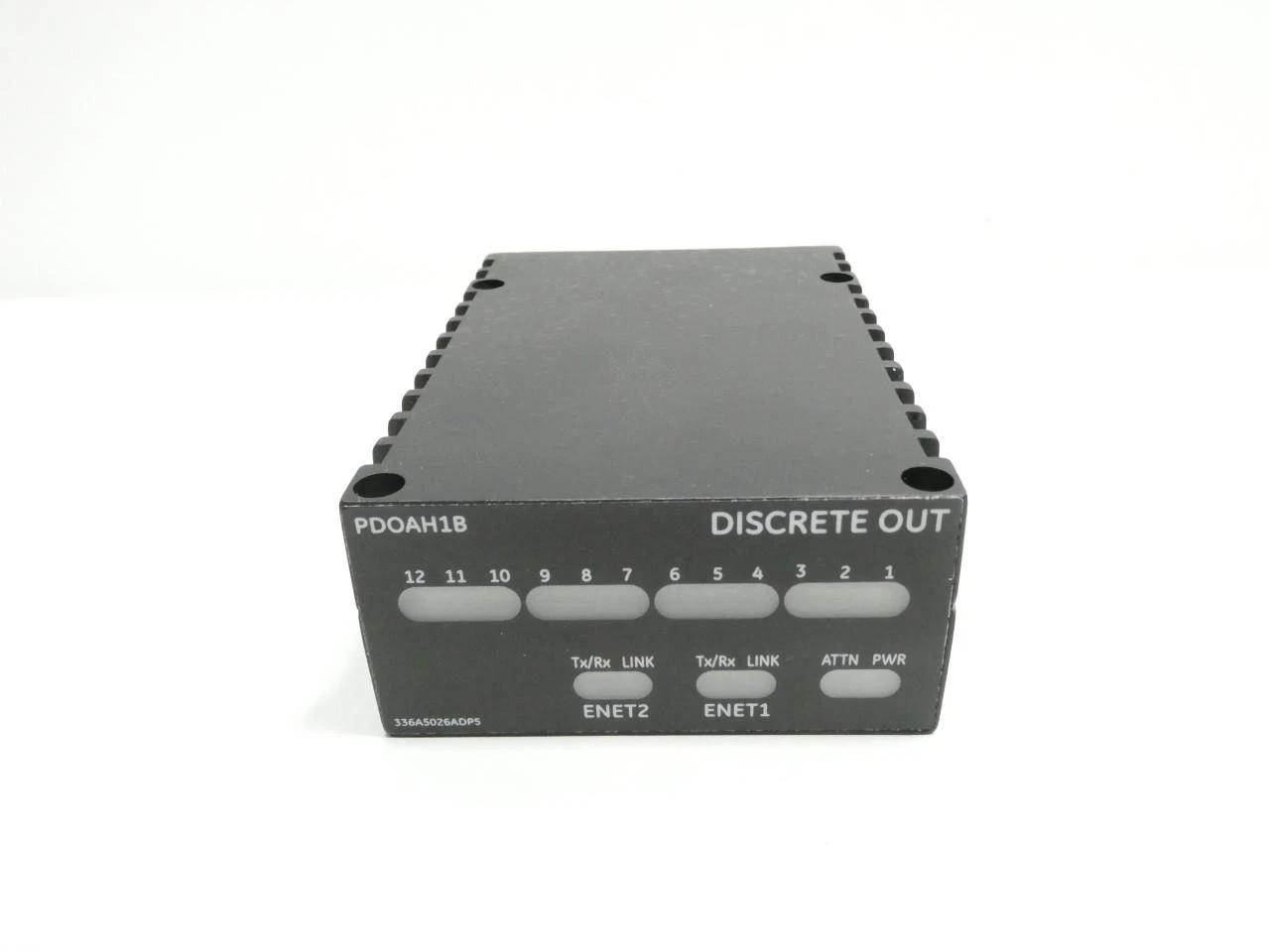

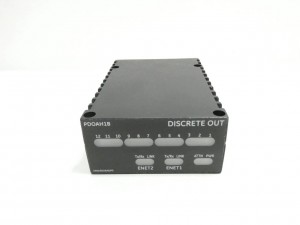

The GE IS220PDOAH1B is a discrete output pack module exclusively developed by General Electric (GE) for the Mark VIe series control systems. It is mainly used to connect the I/O Ethernet network to discrete output terminal boards, and is widely applied in gas turbines, generators and industrial automation control systems to drive various field devices efficiently and stably.
_______________________________________________________________________________________________________
2. Core Parameters
|
Parameter Category
|
Key Data
|
Description
|
|---|---|---|
|
Model/Series
|
IS220PDOAH1B / Mark VIe
|
Compatible with the GE Mark VIe control platform, dedicated for supporting the system’s discrete output control functions
|
|
Channel Count
|
12 discrete output channels + 15 packet input monitoring channels
|
Capable of directly controlling 12 channels of external loads, with complete input monitoring support for stable operation
|
|
Voltage Specification
|
24V DC (nominal voltage)
|
Some technical data shows the maximum rated output voltage is 28.6VDC, and the rated input voltage is 32VDC, meeting industrial power supply standards
|
|
Operating Temperature
|
-20°C to +60°C
|
Partial documents mark the extended temperature range as -30°C to +65°C, adapting to harsh industrial working environments
|
|
Communication Interface
|
Dual 100M full-duplex Ethernet ports
|
Supports 10BaseT/100BaseTX transmission standards, equipped with RJ-45 connectors for stable and high-speed network connection
|
|
Installation Method
|
DIN rail or panel mounting
|
Suitable for standard industrial control cabinets, easy to install and fix firmly
|
|
Physical Dimensions
|
8.26 cm (H) × 4.19 cm (W) × 12.1 cm (D)
|
Compact and space-saving design, ideal for intensive layout in industrial control cabinets
|
_______________________________________________________________________________________________________
3. Product Features
- Modular Design: The module boasts a compact structure, which enables quick installation, convenient maintenance and flexible expansion in control cabinets, effectively reducing the difficulty of system layout and later management.
- High Reliability: Built with industrial-grade components, it can withstand harsh industrial environments such as temperature fluctuations and vibration; some models have passed UL certification, ensuring long-term stable operation and high safety performance.
- Strong Compatibility: It can be seamlessly integrated into the GE Mark VIe control system, supports standard Ethernet communication protocols, and realizes smooth data interaction with the main control system without additional adaptation operations.
- Flexible Configuration: Supports multiple input monitoring configuration schemes, which can be adjusted according to different on-site working conditions and control requirements, meeting diversified application scenarios of industrial sites.
_______________________________________________________________________________________________________
4. Structure and Composition

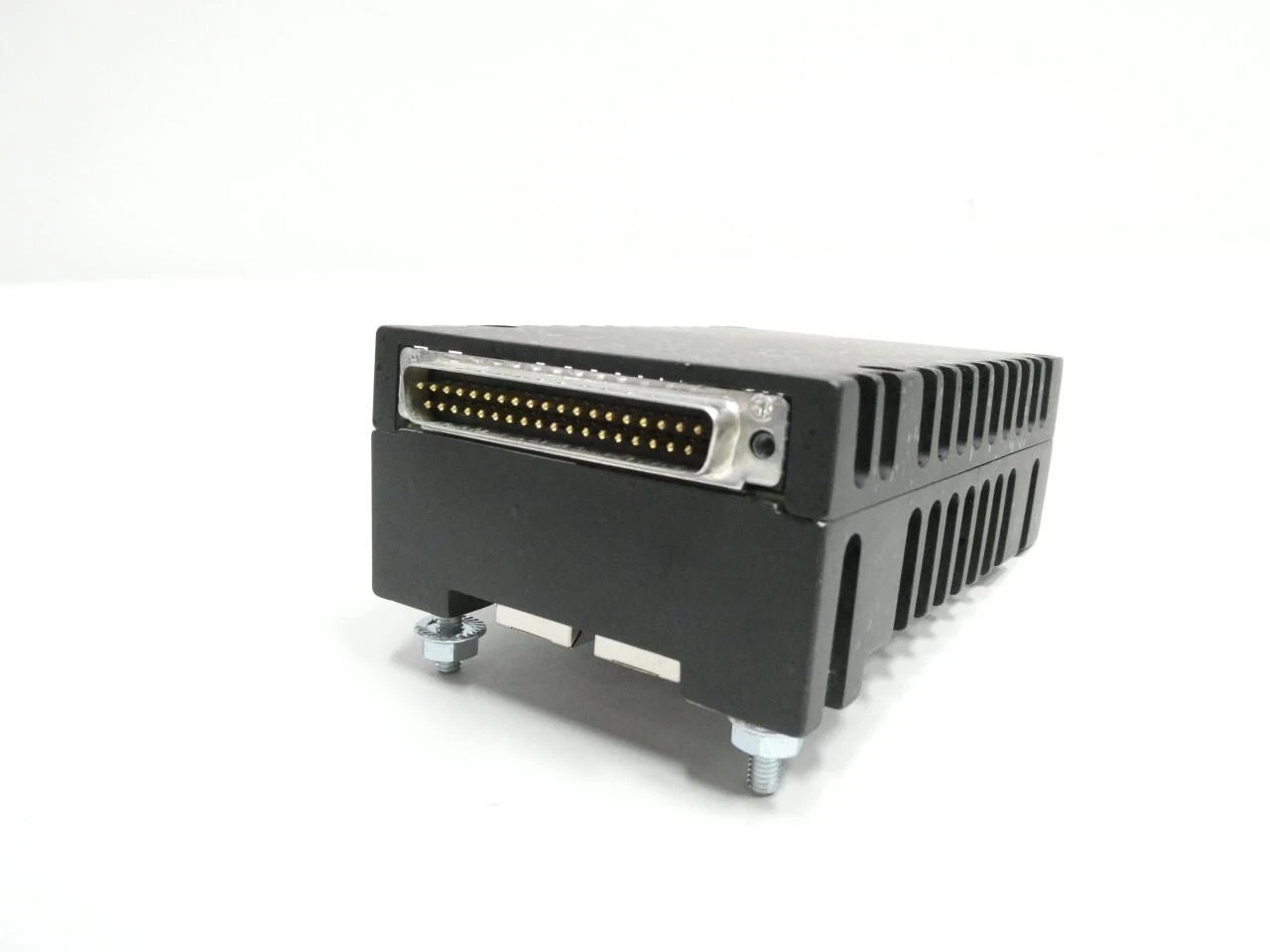

- Connectors: Responsible for network connection with the main controller or other functional modules, ensuring stable transmission of control signals and data.
- Circuit Board: The core component of the module, integrating discrete output (relay) circuits and professional monitoring circuits, to realize signal output and real-time status monitoring functions.
- Terminal Block: Equipped with special output terminals, providing a reliable connection interface for on-site loads, ensuring stable power supply and signal transmission to external equipment.
_______________________________________________________________________________________________________
5. Application Fields
- Gas Turbine Control: Applied to discrete output management in turbine control systems, undertaking key control tasks of gas turbine operation.
- Power Stations: Used for controlling motor starting, relay switching and other auxiliary control links in power generation equipment, guaranteeing the stable operation of power generation systems.
- Petrochemical and Process Control: Drives on-site valves, sensors, actuators and other equipment, supporting continuous and stable operation of process production lines.
- Large-scale Industrial Automation: Deployed in key control nodes with high reliability requirements, suitable for various heavy industrial automation control scenarios.
_______________________________________________________________________________________________________
6. Installation and Maintenance
- Installation: DIN rail installation is recommended to ensure the module is firmly fixed, avoiding poor contact or damage caused by vibration in industrial sites.
- Power Supply: Connect to a 24V DC power supply, and strictly ensure that the input voltage is within the rated range to prevent module damage caused by overvoltage or undervoltage.
- Wiring: Correctly connect the input monitoring terminals and output load lines, strictly control the load power to avoid overload operation, and ensure the safety of wiring and equipment.
- Maintenance: Regularly check the tightness of terminal connections and the real-time operating temperature of the module; once the module breaks down, it is usually recommended to replace the entire module to maintain the overall stability and operational safety of the control system.
————————————————————————————————————-
