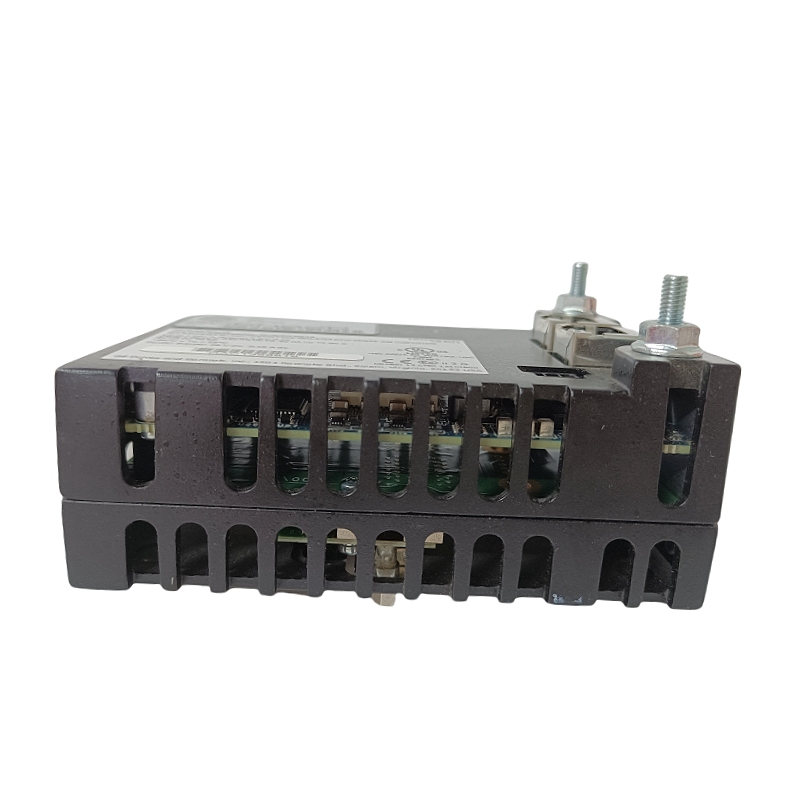

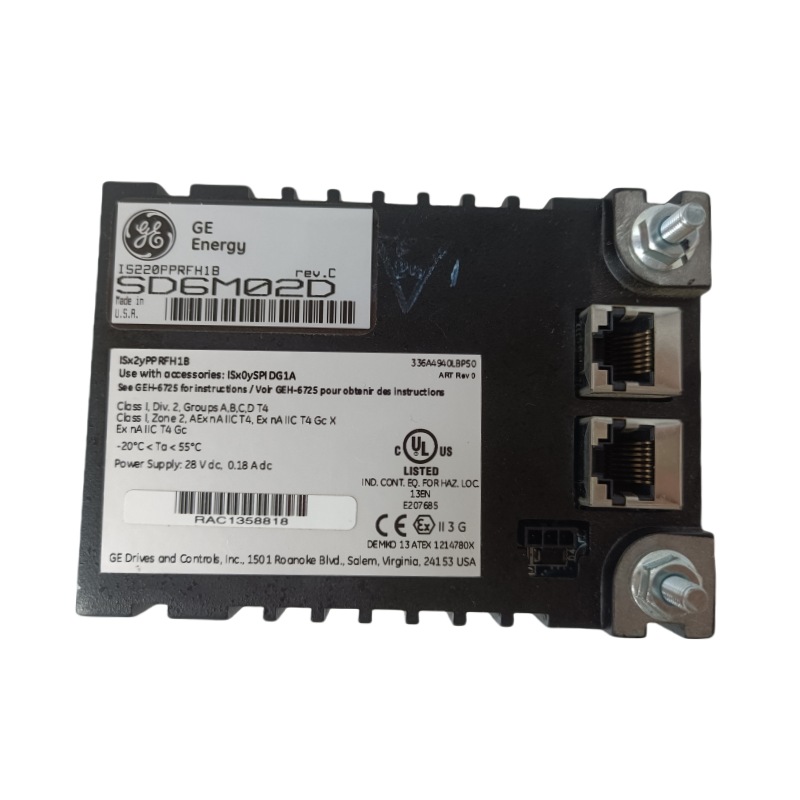

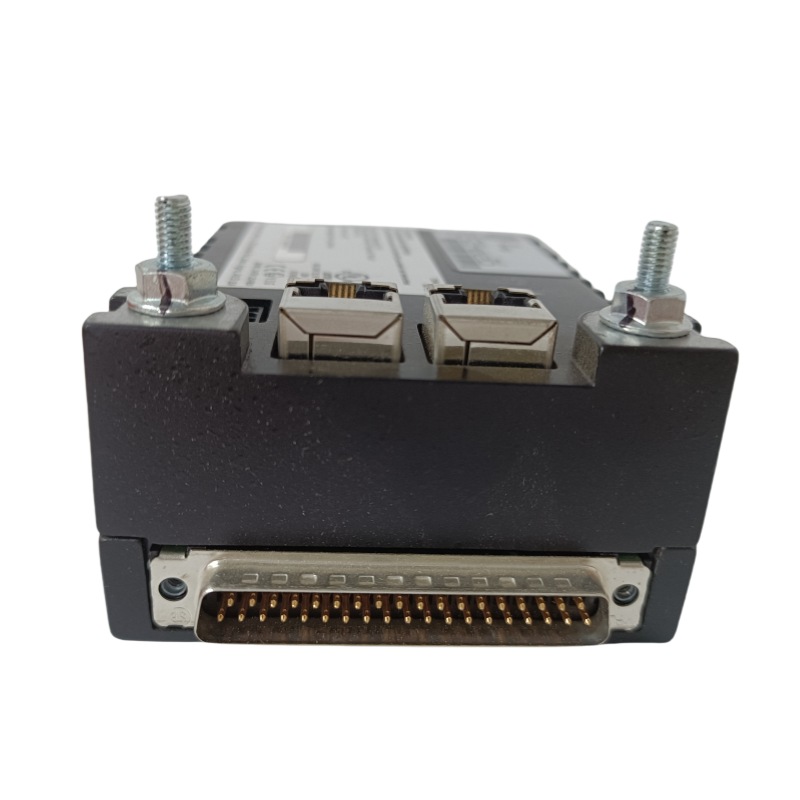

GE IS220PPRFH1A Protection Relay Module
GE IS220PPRFH1A
The GE IS220PPRFH1A is a Process Protection Relay Module under General Electric (GE)’s Mark VIe Speedtronic™ series. It is specifically designed for process control and protection systems of large rotating machinery such as gas turbines and steam turbines. This module is used to monitor critical process parameters (e.g., temperature, pressure, flow rate) and execute protection logic, ensuring that the unit operates within a safe range and preventing equipment damage or unplanned shutdowns.
The core values of IS220PPRFH1A are as follows:
- Multi-parameter monitoring: Supports real-time collection and processing of analog and digital signals.
- High-reliability protection: Built-in redundant logic and self-diagnostic functions to avoid false operations or failure to operate.
- Seamless system integration: Natively compatible with the Mark VIe platform, enabling quick configuration via ToolboxST software.
Product Parameters
- Product Model: IS220PPRFH1A
- Manufacturer: General Electric (GE)
- Product Type: Process Protection Relay Module
- Compatible System: GE Mark VIe Turbine Control Platform
- Input Signal Type: 4-20mA, thermocouples (Type J/K/T), RTD (PT100), digital signals (dry contacts)
- Protection Functions: Over-limit alarm, rate of change (ROC) monitoring, voting logic (2oo3, 3oo4)
- Response Time: ≤10ms (from signal input to protection output)
- Communication Interface: Interacts with the controller via the Mark VIe backplane (supports SRTP, Modbus TCP)
- Operating Temperature Range: -30°C to +70°C (-22°F to +158°F)
- Protection Level: IP20 (must be installed in a control cabinet)
- Installation Method: Plugged into the Mark VIe rack, occupying 1 slot
- Power Requirement: +24V DC (powered by the backplane)
- Power Consumption: ≤8W
- Certification Standards: IEC 60068, UL 508, IEEE 841
Structure and Composition
The IS220PPRFH1A adopts a modular industrial design, with main components including:
Signal Acquisition Circuit
A multi-channel ADC (16-bit resolution) that supports analog and digital input.
DSP Processing Unit
Performs real-time calculation of parameter change rates (e.g., temperature rise rate) and executes voting logic.
Protection Logic Engine
Programmable logic (configured via ToolboxST) that supports safety strategies such as 2oo3 (two-out-of-three).
Backplane Interface
A high-speed connector that interacts with the Mark VIe backplane to receive control commands and upload alarm information.
Status Indicator Lights
LEDs for displaying power supply, communication status, alarm activation, and fault codes.
Metal Enclosure
Features EMI shielding design and complies with industrial vibration resistance standards (5g @ 100Hz).
Key Features and Advantages
1. High-Precision Monitoring and Protection
- 16-bit ADC resolution ensures analog measurement accuracy (e.g., ±0.1% FS).
- Rate of Change (ROC) calculation function to warn of abnormal trends (e.g., sudden temperature rise).
2. Redundancy and Safety Design
- Hardware redundancy support, which can form a fault-tolerant system with backup modules (e.g., IS220PPRFH1B).
- Voting logic (e.g., 2oo3) to prevent false shutdowns caused by single-sensor failures.
3. Intelligent Diagnostic Functions
- Real-time monitoring of sensor health status (e.g., wire breakage, short circuit).
- Records sequence of events (SOE) via ToolboxST software, with a resolution of ≤1ms.
4. Industrial-Grade Reliability
- Wide operating temperature range of -30°C to +70°C, adapting to the environment of gas turbine control cabinets.
- Complies with IEC 61508 SIL2 safety level (for some functions).
Installation and Maintenance
Installation Key Points
- Perform operations with power off (or confirm that the system supports hot swapping).
- Use shielded twisted-pair cables for sensor signal lines, with the shield layer grounded at one end.
- Configure sensor cross-validation for voting logic (to avoid common-cause failures).
Maintenance Recommendations
- Check the module status indicator lights monthly (green = normal, red = alarm).
- Calibrate analog channels regularly (recommended once a year, using a standard signal source).
————————————————————————————————————-
