GE IS220PPROS1B I/O module

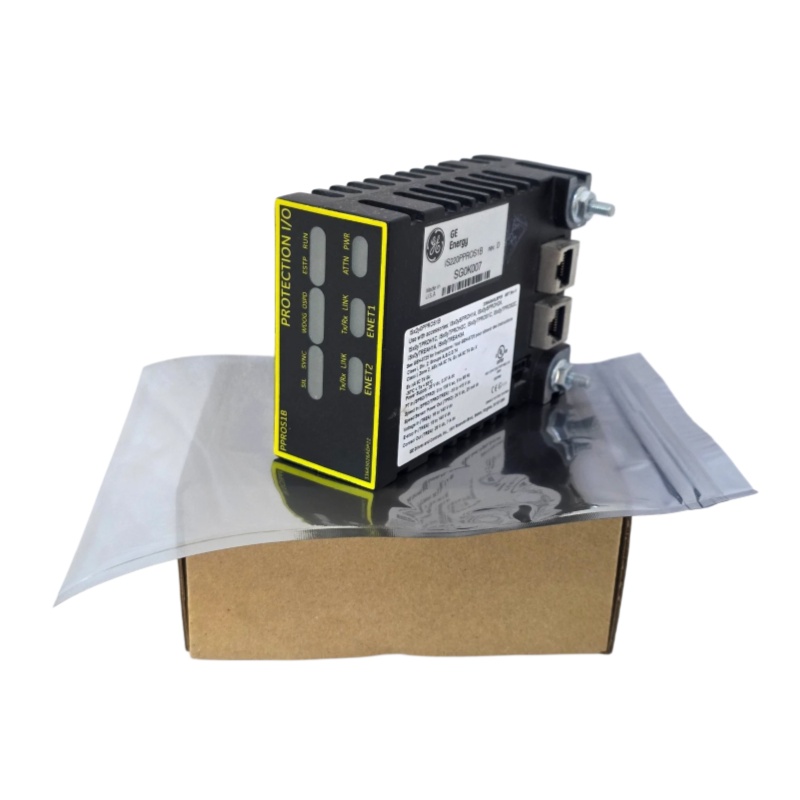

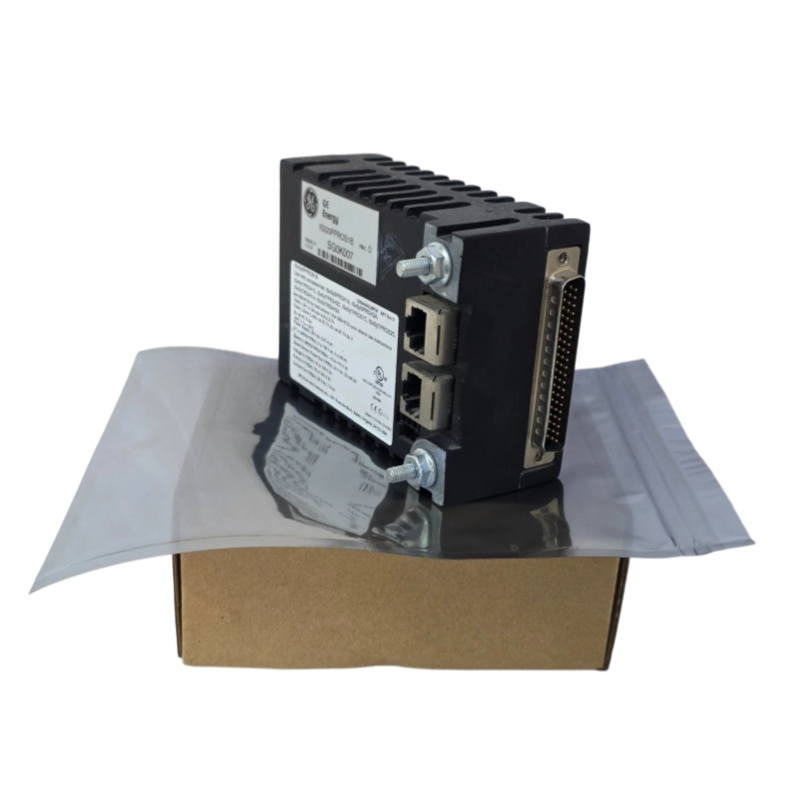

GE IS220PPROS1B
1. Product Overview
The GE IS220PPROS1B is an emergency turbine protection I/O module belonging to the General Electric (GE) Mark VIe series control system. Classified as a backup turbine protection (PPRO) relay system, it is primarily designed to provide backup overspeed protection for turbines and redundant verification functions for generator-grid synchronization. Additionally, the module acts as an independent monitor and watchdog for the main controller, ensuring safe equipment operation in the event of main control system failures.
2. Main Technical Specifications
|
Parameter Item
|
Technical Specifications
|
|---|---|
|
Power Supply Voltage
|
24V DC
|
|
Digital Inputs
|
32 programmable digital inputs
|
|
Digital Outputs
|
32 programmable digital outputs
|
|
Communication Interfaces
|
Ethernet, RS-232, RS-485
|
|
Operating Temperature
|
-30°C to +65°C or -40°C to +85°C
|
|
Ingress Protection Rating
|
IP20 to IP65
|
|
Power Consumption
|
Approx. 25W or <5W
|
|
Weight
|
Approx. 0.45-0.5kg or 4.5kg
|
Physical Dimensions
- Configuration A: 310mm × 230mm × 89mm
- Configuration B: Standard VME form factor
Certifications
- UL Certification for non-hazardous and hazardous locations
- UL E207685 Non-Hazardous Location Certification
- ATEX Zone 2, Group IIC Certification
3. Product Features
Triple Modular Redundancy (TMR) Design
Adopting a triple modular redundancy architecture, the system can operate normally even if a single module fails, significantly enhancing overall system reliability and fault tolerance.
High Reliability and Availability
As an independent watchdog system, the module supports hot-swap functionality, enabling online maintenance and replacement without interrupting system operation, which effectively improves equipment availability.
Advanced Communication Capabilities
Built-in Ethernet communication supports SRTP and Modbus TCP/IP protocol applications, delivering stable and real-time data links for connected industrial control systems.
Scalable Processing Performance
It supports flexible system configuration customization. System upgrades can be realized without modifying core software, meeting diverse and iterative industrial application requirements.
High-Speed I/O Scanning
Featuring high precision, superior stability and strong reliability, the module is well-suited for complex industrial automation and control system scenarios.
4. Structure and Composition
System Composition
A typical complete system consists of three TMR-based PPRO I/O modules and an independent protection terminal board. The modules communicate with control modules via Ethernet and support single-board TMR protection system operation. The internal structure of the module mainly includes a processor unit, input/output interfaces, communication interfaces and a power supply module.
Hardware Components
- Microprocessor: Freescale Power PC architecture; Intel x86 architecture
- Memory: 256 MB DDR SDRAM, 64MB RAM, 128MB Flash
- Operating System: QNX Neutrino or Windows Embedded Standard 7
Installation and Connection Method
- Connect to SPRO or TREA terminal boards via DC-37 pin cables
- The PPRO module is connected to the terminal board through DC-62 pins
- Compatible with cables for TREG, TREL, TRES and other matching modules
5. Application Fields
The GE IS220PPROS1B module is widely deployed in various industrial scenarios requiring high-stability turbine protection and automatic control:
- Power Generation Industry: Gas turbine and steam turbine power plants
- Petrochemical Industry: Turbine control systems for petroleum and natural gas production
- Marine Propulsion: Marine turbine machinery control systems
- Metallurgical Industry: Turbine control for metallurgical production processes
- Chemical Industry: Automatic control of chemical production workflows
6. Installation and Maintenance
Key Installation Guidelines
Terminal Board Installation: Firmly install the SPRO or TREA terminal board, and connect it to the corresponding emergency shutdown terminal board via DC-37 pin cables to ensure stable signal transmission.
Module Connection: Connect the PPRO module to the matched terminal board through DC-62 pins. Adjust the mounting bracket position during installation to ensure tight and reliable connection.
Electrical Compliance: All installation and wiring operations must comply with standard electrical specifications to eliminate potential safety hazards.
Power Supply Requirements: The operating power supply voltage ranges from 27.4 VDC to 28.6 VDC, with a nominal voltage of 28.0 VDC.
————————————————————————————————————-
