GE IS220PRTDH1B Input Module
GE IS220PRTDH1B
1. Product Overview
The GE IS220PRTDH1B is a high-performance Resistance Temperature Detector (RTD) input module developed by General Electric (GE) for the Mark VIe/Mark VI series control systems. It is specially designed for temperature measurement and monitoring in industrial automation scenarios. As a core component of the IS220 series modular I/O system, this module is widely applied in power plant control systems for gas and steam turbines, delivering stable and reliable temperature data acquisition for industrial power generation operations.
|
Parameter Item
|
Specification
|
|---|---|
|
Model
|
IS220PRTDH1B
|
|
Manufacturer
|
General Electric (GE)
|
|
Product Type
|
RTD Input Module / RTD Input Pack
|
|
Channel Quantity
|
8 channels (expandable to 16 channels with matching terminal board)
|
|
Input Type
|
RTD (supports Pt100, Cu100, J, K, T, E, N and multiple other types)
|
|
Temperature Measurement Range
|
-200°C to +800°C
|
|
Accuracy
|
±0.1% FS (Full Scale)
|
|
Resolution
|
0.01°C
|
|
Power Supply Voltage
|
12-24 VDC / 24 V DC
|
|
Power Consumption
|
Approx. 2.5W to 25W
|
|
Operating Temperature
|
-40°C to +85°C / -30°C to +65°C
|
|
Humidity Range
|
5% – 95% RH (Non-condensing)
|
|
A/D Converter Resolution
|
14-bit
|
|
Communication Interface
|
Ethernet (Dual I/O Ethernet network interfaces)
|
|
Dimension
|
Standard VME size / Approx. 34×18×10 cm
|
|
Weight
|
Approx. 0.5kg / 4.5kg / 7.2 ounces
|
3. Product Features
- High Reliability: Adopts redundant design and supports single-unit or Triple Modular Redundancy (TMR) configuration, effectively improving system operational stability and fault tolerance.
- High Precision and High Resolution: Delivers ultra-high temperature measurement accuracy of ±0.1% FS and a temperature resolution of 0.01°C, ensuring precise data acquisition.
- Diversified RTD Input Support: Natively supports up to 8 RTD input channels, and can be expanded to 16 channels when equipped with a TRTD terminal board, meeting multi-point temperature monitoring requirements.
- Dual Ethernet Interfaces: Equipped with two independent I/O Ethernet network interfaces, which greatly enhances system flexibility and network redundancy, avoiding single-point network failures.
- Hot-Swap Function: Supports hot-swap operation, allowing module replacement and maintenance without system shutdown, reducing equipment downtime.
- High-Speed Processing Capability: Features a high-speed operating frequency up to 1MHz, realizing rapid collection and response of temperature data.
- Wide Compatibility: Compatible with mainstream RTD sensor types including Pt100, Cu100, J, K, T, E and N, adapting to diverse industrial temperature measurement scenarios.
4. Structure and Composition
The GE IS220PRTDH1B module consists of the following core components with a compact and integrated structural design:
- Processor Board: Shared by all Mark VIe distributed I/O components, undertaking core data processing and system control tasks.
- Acquisition Board: A dedicated circuit board independently developed for RTD signal input, responsible for accurate collection and preliminary processing of temperature signals.

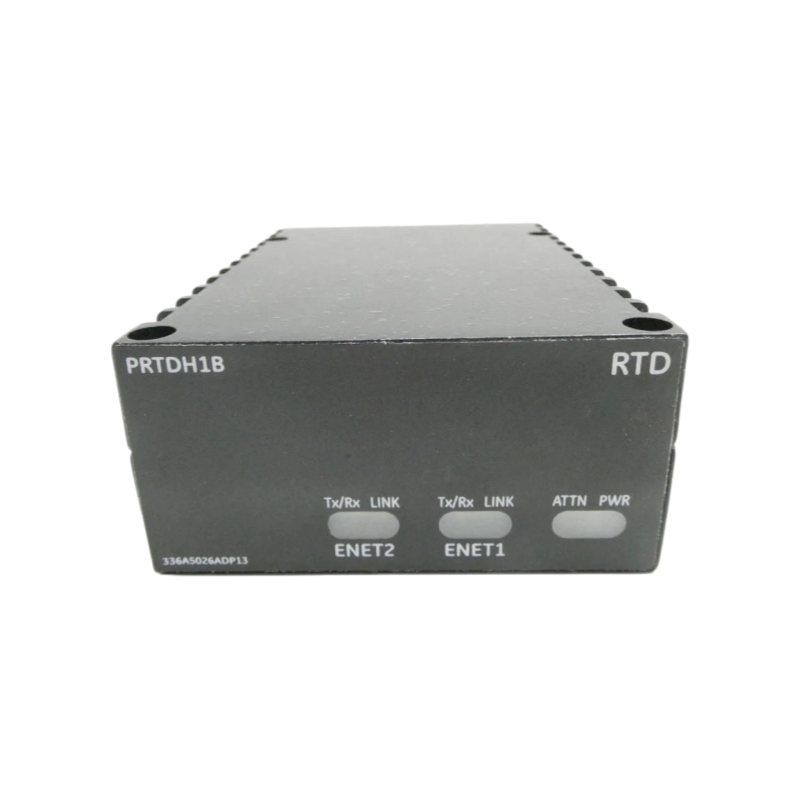

- LED Indicators: The front panel is equipped with two Ethernet port status indicators, a power indicator and an attention (ATTN) indicator, facilitating real-time equipment status observation and fault diagnosis.

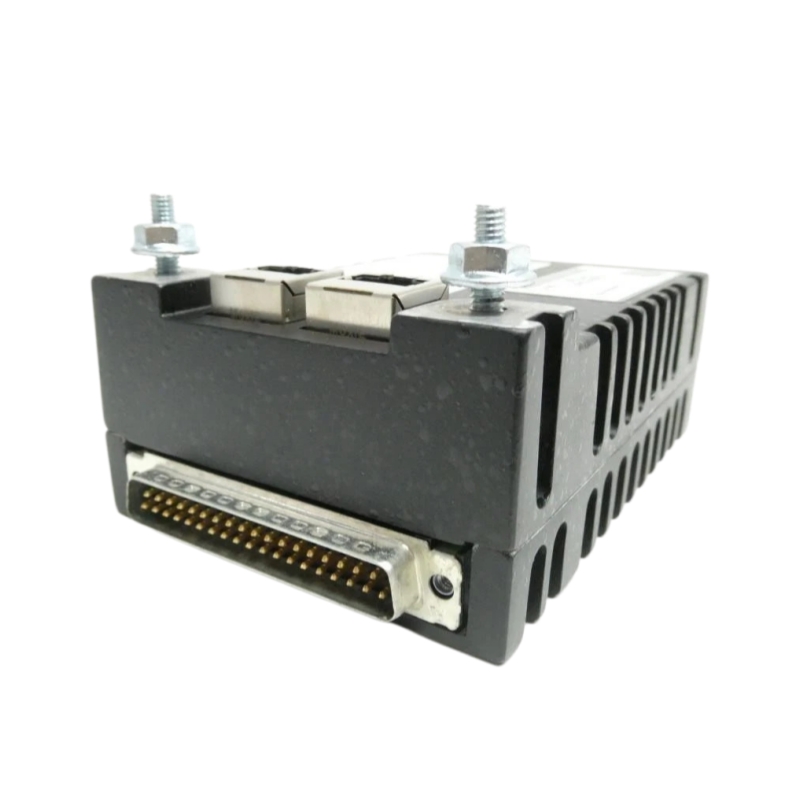

- Ethernet Ports: Arranged on the side of the device for network signal access and data transmission.
The module can be connected to one or two I/O Ethernet networks through a matching RTD input terminal board to realize redundant network transmission and stable data interaction.
5. Application Fields
The IS220PRTDH1B RTD input module is widely applicable to temperature monitoring and process control in multiple industrial fields, with strong environmental adaptability and scenario compatibility:
- Power Generation Industry: Temperature monitoring and automatic control of gas turbines and steam turbines
- Oil and Gas Industry: High-precision temperature monitoring under harsh industrial operating environments
- Metallurgical Industry: Accurate temperature measurement and data collection in high-temperature production environments
- Chemical Industry: Real-time temperature monitoring and closed-loop control of chemical production processes
Typical Application Scenarios: Turbine temperature measurement, boiler temperature measurement, flue gas temperature measurement and other key industrial temperature monitoring links.
6. Installation and Maintenance
6.1 Installation Requirements
- Pre-installation Preparation: Verify that the chassis size, power supply voltage and grounding system fully meet the equipment operating specifications before installation to eliminate potential safety hazards.
- Power-off Operation: The module must be plugged and unplugged in a power-off state to avoid equipment damage and signal abnormalities caused by live operation.
- Wiring Specifications: Complete circuit wiring in strict accordance with the corresponding RTD sensor type to ensure accurate signal access.
- Connector Confirmation: Connect and fix two Ethernet ports to build a redundant network structure and ensure continuous and stable data transmission.
————————————————————————————————————-
