GE IS220PRTDH1B Temperature I/O Pack
GE IS220PRTDH1B
Functional Description
The GE IS220PRTDH1B is an RTD input I/O pack within the Mark VIe control platform. Its primary role is to interface temperature sensors with the system’s input/output network. The module acquires sensor signals and communicates measurement data to the controller for supervision and process management.
Unlike a general-purpose analog input module, this unit is specifically designed for resistance temperature measurement. Its application depends on compatible RTD sensors, terminal boards, and the correct system configuration.
Main Functions
- Receives RTD signals through a compatible terminal board.
- Converts acquired signals into digital measurement data.
- Communicates with the control system through Ethernet interfaces.

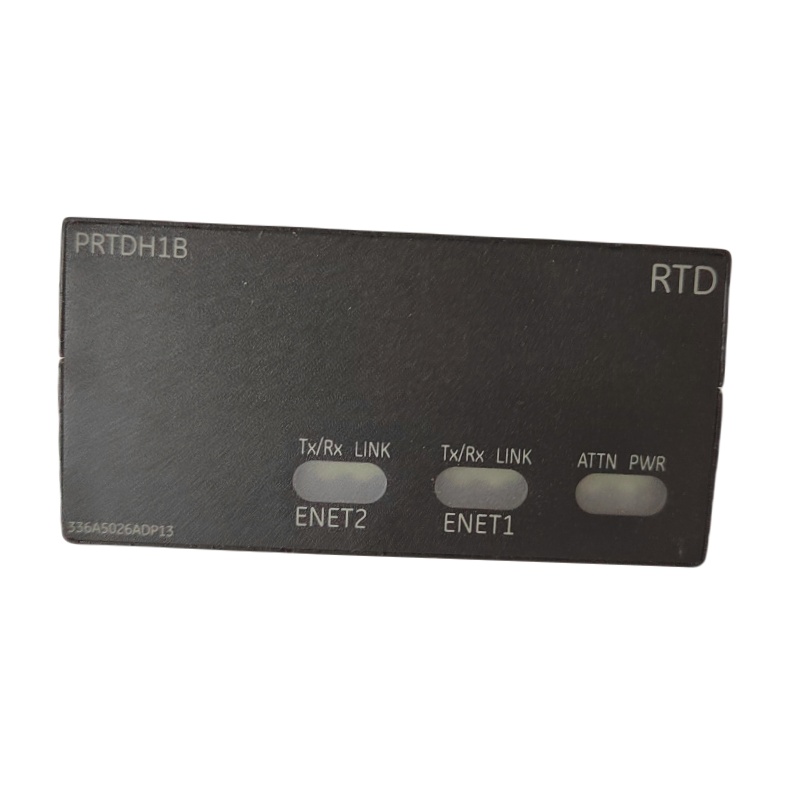

- Provides LED status indications for basic troubleshooting.
- Supports up to eight RTD channels in a supported configuration.
Hardware and Connectivity

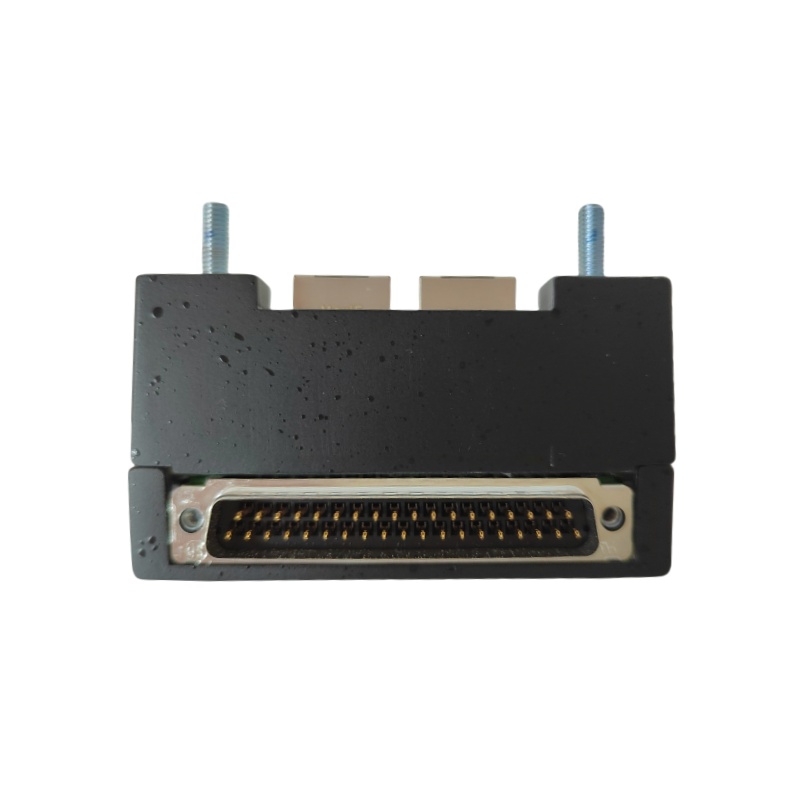

The module incorporates a processor board and an acquisition board dedicated to RTD input functions. A DC-37 connector links the pack to its terminal board, while a three-pin connector supplies power. Two RJ45 ports provide Ethernet connectivity.
Operating Parameters
The following specifications summarize the module’s principal operating characteristics:
- Control platform: GE Mark VIe
- Input signal type: Resistance Temperature Detector (RTD)
- Maximum input count: Eight RTD channels
- Nominal supply voltage: 28 VDC
- Maximum specified supply current: 0.24 A
- Ambient operating range: -30°C to +65°C
- Network interface: Two RJ45 Ethernet ports
- Control mode: Simplex operation
Industrial Use Cases
The IS220PRTDH1B is useful wherever reliable temperature feedback supports equipment supervision. Typical applications include turbine auxiliary systems, power plant instrumentation, industrial machinery, and process temperature monitoring.
By delivering RTD measurements to the control system, the module helps operators identify temperature changes and evaluate equipment operating conditions.
Maintenance Considerations
Keep connectors clean and secure, inspect field wiring regularly, and investigate abnormal status indicators or inconsistent temperature readings. Sensor compatibility, terminal-board selection, grounding, and configuration should be verified whenever the module is installed or replaced. Use the manufacturer’s instructions for all servicing procedures.
————————————————————————————————————-
