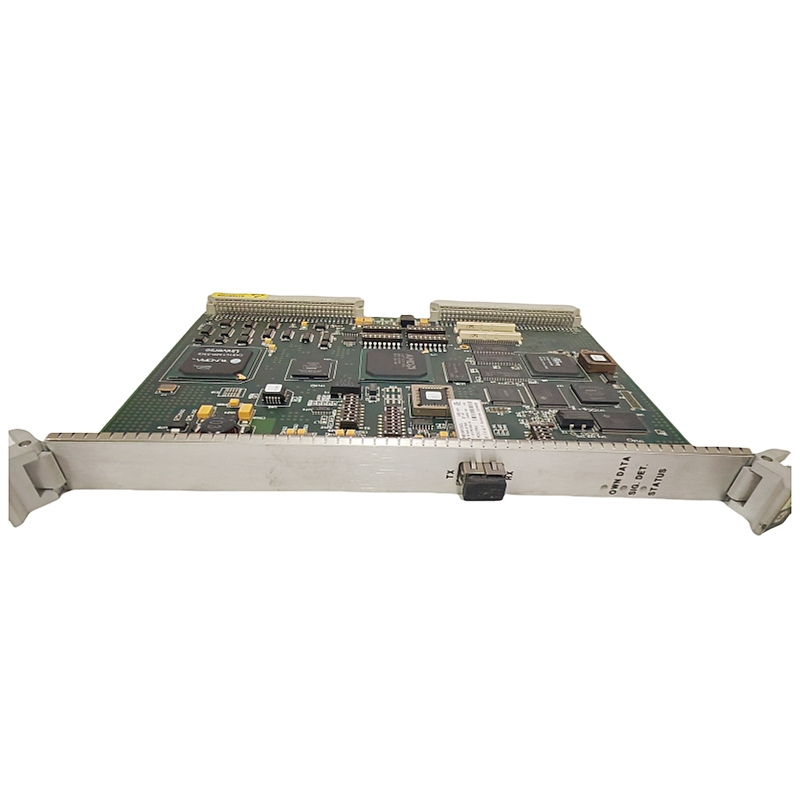

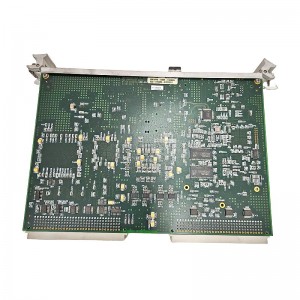

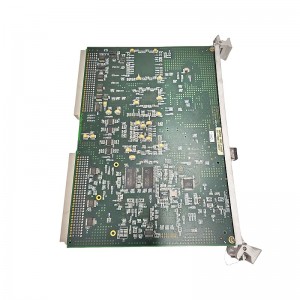

GE VMIVME-5565-010000

Overview

Parameters

• Bus Type: VMEbus (Versa Module Europa)
• Form Factor: 6U, typically used in industrial or military-grade rack systems.
• Processor: PowerPC 750GX with a clock speed of 1.0 GHz.
• Memory: 512 MB DDR SDRAM, 1 GB NOR Flash memory.
• Communication Interfaces: Supports VME64x, PCI, PMC, Ethernet, and other interfaces.
• Operating Temperature Range: 0°C to 55°C.
• Storage Capacity: On-board SDRAM configurable to 64MB or 128MB.
• Data Transfer Rate: From 43 Mbyte/s (4-byte data packets) to 170 Mbyte/s (64-byte data packets).
• Fiber Optic Connection Distance: Up to 300 meters for multi-mode fiber, and up to 10 kilometers for single-mode fiber.
• Power Requirement: +5V DC.
• Power Consumption: 5W.
• Interface Type: VMEbus.

Product Features

• High Bandwidth Data Transmission: Data is synchronized in real-time over fiber optic networks, with transmission rates up to 2.1 Gbps.
• Real-time Low Latency: Ensures real-time data exchange between systems, with typical latency in the microsecond range.
• Modular Design: Plug-in module compatible with standard VME bus architecture, easy to install and integrate into existing systems.
• High Reliability: Built-in Error-Correcting Code (ECC) to ensure data integrity and transmission reliability.
• Flexible Expansion: Supports fiber optic networks with up to 256 nodes, enabling easy system expansion through link extension.
• Industrial-grade Design: Capable of stable operation in harsh environments such as high temperatures, vibration, and electromagnetic interference.
• High-speed Fiber Optic Communication: Utilizes fiber optic communication with transmission rates up to 2.12 Gbaud for high-speed and reliable data transmission.
• Large Storage Capacity: Provides 128 MB of memory for storing large amounts of data.
• Flexible Configuration: Allows configuration of communication parameters and functions as needed.
• High Reliability: Incorporates redundant design and self-diagnostic functions to ensure long-term reliable operation.

Structure and Composition

• Modular Design: Facilitates easy installation and maintenance, supporting multiple expansion options.
• VME Bus Interface: Supports various communication interfaces, including Ethernet and serial communication.
• Rich I/O Interfaces: Supports multiple digital and analog input/output channels, enabling simultaneous reception of multiple signals to enhance system monitoring and data processing capabilities.
• PMC Form Factor: Other available forms include low-profile PCIe, PCIe, PCI, and VME.
• Protection Rating: IP30.

Application Fields

• Industrial Automation: Used for data sharing and synchronization in distributed control systems, enabling efficient collaboration among multiple nodes in production lines.
• Power Systems: Supports real-time monitoring and control of power plants, substations, etc.
• Aerospace and Military: Data synchronization in real-time simulation systems, sensor data sharing and processing in military systems.
• Medical Equipment: Supports large-scale real-time data sharing between multiple devices.
• Testing and Simulation: Provides low-latency, high-bandwidth data synchronization in high-performance computing simulations.
• Manufacturing: Factory automation, process control, testing and measurement, etc.
• Military Electronics: Data transmission and control for military equipment.
• Aviation: Data acquisition, transmission, and processing in aviation systems.
• Other Industries: Such as automotive manufacturing, semiconductor manufacturing, food and beverage processing, packaging, printing, and healthcare.

Installation and Maintenance

• Regular Inspection: Ensure the integrity of modules and fiber optic connections to avoid physical damage.
• Firmware Upgrade: Check and install the latest firmware to improve performance and fix potential issues.
• Spare Parts Management: It is recommended to maintain a certain number of spare parts for quick replacement to reduce downtime.
• Environmental Monitoring: Ensure the operating environment meets the product’s working temperature and electromagnetic compatibility requirements.
• Easy Installation: The modular design makes it easy to install and integrate into existing systems.
• Easy Maintenance: The modular design and rich I/O interfaces facilitate maintenance and troubleshooting.

————————————————————————————————————-
