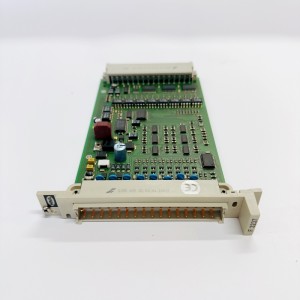

HIMA F3237 984323702 Digital Input Module
HIMA F3237 984323702
Overview
The HIMA F3237 (Product Number: 984323702) is a digital input module designed for safety-critical production processes, specifically developed for industrial control systems. It enables high-speed and reliable acquisition of multiple discrete signals, and provides comprehensive self-test and diagnostic functions to meet the fault tolerance and reliability requirements of functional safety standards (such as IEC 61508).
Main Specifications
- Number of Channels: 8-channel digital input
- Input Voltage Range: 24 V DC (12 V DC optional)
- Input Type: Open/short circuit detection, anti-interference filtering
- Response Time: ≤ 1 ms (typical value)
- Operating Temperature: -25 °C ~ +85 °C
- Power Supply Mode: 24 V DC with internal power management
- Communication Interface: Supports multiple fieldbuses (Ethernet, Profibus, Modbus, etc.) as well as HIMA’s proprietary safety bus
- Safety Level: Complies with SIL 2 / SIL 3 requirements, with complete self-test and redundancy mechanisms
Product Features
- Strong Fault Tolerance: The module implements hardware redundancy and software self-test internally. Even if a single channel or component fails, it will not affect the safe operation of the overall system.
- Automated Test Functions: Including switch on-off test, zero-crossing test, input circuit crosstalk test, filter function verification, module calibration, and short-circuit/breakage detection of sensor lines.
- Flexible Communication Options: Compatible with multiple industrial protocols, facilitating rapid integration into existing control networks.
- High Anti-Interference Design: Adopts filtering and shielding technologies to ensure signal integrity even in electromagnetic noise environments.
- Easy Maintenance: Modular structure, indicator status display, and detailed diagnostic logs allow on-site maintenance personnel to quickly locate faults.
Structure and Composition
- Input Card: 8 independent digital input circuits, each equipped with a protection diode and a filter.
- Power Management Unit: Responsible for voltage stabilization, monitoring of 24 V DC power supply, and overvoltage/undervoltage protection.
- Communication Interface Board: Provides multiple bus access methods such as Ethernet, Profibus, and Modbus.
- Safety Control Chip: Implements safety functions at the SIL 2/3 level, including self-test, redundant operation, and error detection.
- Indicators and Diagnostic Ports: Used for on-site status display and fault information output.
Typical Application Fields
- Petroleum and Chemical Industry: Signal acquisition for safety valves and Emergency Shutdown (ESD) systems.
- Power System: Safety monitoring of generator sets and substations.
- Rail Transit: Safety input for train control and signal systems.
- Manufacturing Industry: Safety interlocking and protection of automated production lines.
- Process Control: Safety monitoring in high-risk process environments (such as high temperature and high pressure).
Installation and Maintenance Points
- Pre-Installation Inspection: Confirm that the power supply voltage, terminal block identification, and communication interface type match the on-site system.
- Mechanical Fixing: Fix the module using standard DIN rails or cabinet screws to ensure anti-vibration performance.
- Wiring Specifications: Follow the wiring diagram recommended by HIMA, use shielded cables, and ensure proper grounding to reduce electromagnetic interference.
- Initial Commissioning: Use the configuration software provided by HIMA to perform channel mapping, filter parameter setting, and self-test function activation.
- Regular Self-Test: The built-in self-test program of the module should be run monthly or quarterly to record diagnostic logs and provide early warnings for abnormalities.
- Replacement and Upgrade: When replacing the module, maintain the same model (HIMA F3237) and product number (984323702), and update the corresponding hardware configuration file in the system.
————————————————————————————————————-
