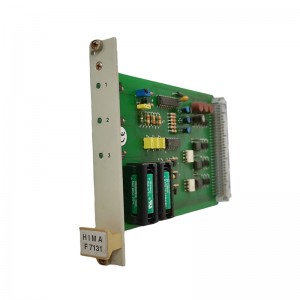

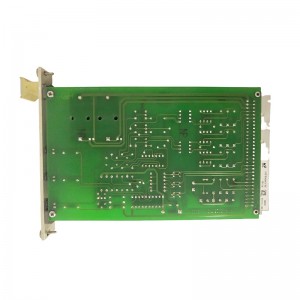

HIMA F7131 981713102

HIMA F7131 is a programmable logic controller (PLC) for safety-related functions. Specifically designed for safety monitoring and protection in industrial processes, it features high-speed computing, redundant fault tolerance, and multiple I/O interfaces, enabling reliable safety control in harsh on-site environments.

1. Main Technical Specifications

• Device Type: Safety-related PLC (Safety‑PLC)
• Processing Capacity: Equipped with a high-speed CPU that can respond to safety events in milliseconds
• I/O Points: Multiple digital/analog input and output options, supporting fieldbus expansion
• Communication Interfaces: Multi-protocol support including Ethernet/IP, PROFINET, and Modbus TCP
• Operating Temperature: -25 °C ~ +70 °C (industrial grade)
• Power Supply: 24 V DC (with optional redundant power supply)
• Certification: IEC 61508 SIL 2/3 certification

2. Product Features

• High Availability: Internal redundancy design, fault self-detection, and automatic switching ensure continuous system operation.
• Multi-protocol Compatibility: Built-in support for multiple industrial communication protocols, facilitating interconnection with upper-level systems and on-site equipment.
• Modular Structure: CPU, I/O, and communication modules can be flexibly combined to meet the needs of projects of different scales.
• Safety Certification: Complies with international safety standards such as IEC 61508 and ISO 13849, suitable for critical safety systems.
• Easy Maintenance: Supports modular plug-and-play and hot-swapping, minimizing on-site replacement time and reducing downtime costs.

3. Structure and Composition

• CPU Host: The core processing unit responsible for safety logic operations and monitoring.
• I/O Modules: Various types including digital, analog, counting, and pulse modules, which can be selected based on on-site requirements.
• Communication Modules: Provide network interfaces such as Ethernet/IP, PROFINET, and Modbus.
• Power Supply Unit: 24 V DC main power supply, supporting redundant power supply.
• Chassis/Mounting Bracket: Complies with IP66 protection level, suitable for cabinet or wall-mounted installation.

4. Typical Application Fields

• Petrochemical Industry: Safety valves, leak detection, and emergency shutdown systems.
• Power System: Safety monitoring of generator sets and substation protection.
• Pharmaceutical and Food Industry: Sanitary-grade safety control and process protection.
• Metallurgy and Mining Industry: Safety interlocking for high-temperature and high-pressure processes.
• Automated Production Lines: Robot safety zones and collaborative safety systems.

5. Key Points for Installation and Maintenance

1. On-site Survey: Confirm requirements for ambient temperature, humidity, vibration, and protection level.
2. Cabinet Installation: Use cabinets that meet the IP66 standard and reserve sufficient heat dissipation space.
3. Power Wiring: Wire according to the 24 V DC interface; it is recommended to use a redundant power supply to improve reliability.
4. Module Plugging/Unplugging: Replace I/O or communication modules using the hot-swapping method to avoid system downtime.
5. Network Configuration: Configure the corresponding protocol (e.g., Ethernet/IP) based on the on-site network selection and check for address conflicts.
6. Function Testing: After completing hardware wiring, perform safety function self-tests (Self‑test) and on-site simulation tests.
7. Regular Maintenance: Inspect the power supply, terminal blocks, and cooling fans every 6 ~ 12 months; update firmware to obtain the latest security patches.

————————————————————————————————————-
