1. Overview

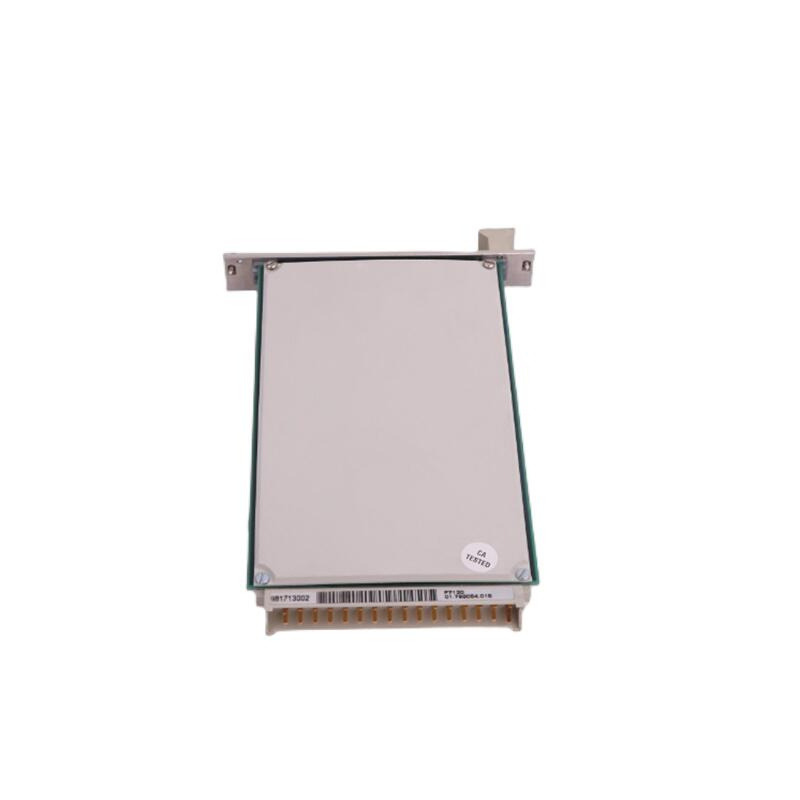

• Hardware Redundancy: HIMA F7150  The dual-channel design ensures the system operates normally even if one signal line fails.
• Safety Integrity Level (SIL): Most products comply with the IEC 61508 standard and can achieve advanced safety levels such as SIL 2 or SIL 3.
• Durability: Meets industrial environment requirements, with high temperature resistance, vibration resistance and impact resistance.

_____________________________________________________________________________________________________________

2. Parameters & Technical Specifications

• Safety Level: Complies with IEC 61508 standard, up to SIL 2/SIL 3.
• Protection Level: Usually IP20 or higher.
• Response Time: Typically less than 10ms, enabling rapid response to safety incidents.
• Dimension Specifications: Compact design, suitable for DIN rail mounting.
• Material: High-strength industrial-grade material (such as stainless steel or engineering plastic), corrosion-resistant.

_____________________________________________________________________________________________________________

3. Product Features

• Extremely High Reliability: Adopts advanced safety technology to provide continuous and reliable protection in hazardous environments.
• Redundant Design: Hardware redundancy structure prevents system failure caused by single point of failure.
• Easy Maintenance: Modular design facilitates quick on-site replacement and maintenance.
• Compliance with International Standards: Strictly follows IEC 61508 and SIL certification standards.

_____________________________________________________________________________________________________________

4. Structure & Composition

• Host Module: The core processing unit, responsible for receiving sensor signals and executing safety logic.
• Communication Interface: Supports multiple industrial fieldbuses such as Modbus, RS-485, PROFIBUS.
• Power Supply Module: Provides dual power supply redundancy to ensure operation even in case of power failure.
• I/O Module: Used to connect on-site sensors (such as flow meters, pressure gauges, switches, etc.).

_____________________________________________________________________________________________________________

5. Application Fields

• Oil & Gas: Prevents major accidents such as pipeline leaks and explosions.
• Chemical Manufacturing: Monitors the flow and storage safety of hazardous chemicals.
• Iron & Steel Metallurgy: Controls high-temperature and high-pressure production processes.
• Pharmaceutical Industry: Ensures biosafety in the production process.
• Power Industry: Prevents safety failures of generator sets and power transmission systems.

_____________________________________________________________________________________________________________

6. Installation & Maintenance

6.1 Installation Method

6.2 Environmental Requirements

6.3 Maintenance Recommendations

• Regular Inspection: Regularly check the status of terminal blocks and indicator lights.
• Preventive Maintenance: When the system has an abnormal alarm, conduct fault diagnosis and replace components in a timely manner.
• Personnel Training: Only personnel who have received special training are allowed to operate and maintain.
