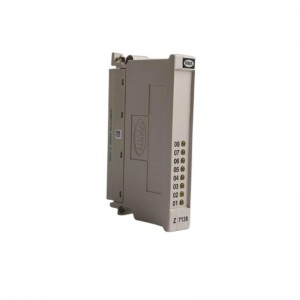

HIMA F8640 I/O Module
HIMA F8640
1. HIMA F8640 Overview
HIMA F8640 is an industrial safety I/O module launched by HIMA Paul Hildebrandt GmbH, a globally leading provider of safety technology. HIMA specializes in delivering Functional Safety Systems for high-risk industries such as chemical, energy, and pharmaceutical. As an I/O expansion module, the F8640 is typically used in conjunction with HIMA’s main controllers (e.g., CPU modules).
This module is mainly designed to collect on-site signals (such as sensor signals and digital signals) and transmit them to the main control system. Meanwhile, it is equipped with the function of executing safe output, ensuring that the system can quickly trigger safety measures when abnormalities are detected.
_______________________________________________________________________________________________
2. Specification Parameters
Dimensions and Weight
Dimensions: 152 mm x 114 mm x 66 mm (Width x Height x Depth)
Weight: Approximately 700 grams
Mounting Method
DIN Rail Mounting: Supports horizontal installation on 35 mm DIN rails.
Spacing Requirements: Minimum horizontal spacing of 20 mm, minimum vertical spacing of 100 mm (ensure ventilation slots are unobstructed).
_______________________________________________________________________________________________
Power Supply
Voltage: 24 VDC
Voltage Tolerance: -15% to +20%
Power Consumption: 19.2 W
Power Unit Requirements: Must comply with IEC 61131-2 standard (SELV, PELV).
_______________________________________________________________________________________________
Digital Input (DI)
Quantity: 16 channels
Electrical Isolation: Non-isolated
Voltage Range:
Low Level: ≤ 5 V
High Level: 15 V to 30 V
_______________________________________________________________________________________________
Sensor Power Supply (LS+)
Quantity: 4 x 19.2 V / 40 mA
Features: Short-circuit protection, 20 ms buffering.
_______________________________________________________________________________________________
Digital Output (DO)
Quantity: 8 channels
Electrical Isolation: Non-isolated
Maximum Output Current:
At 40°C: 2 A
At 60°C: 1 A
Total Current: Maximum 8 A
Light Load: Maximum 25 W
Inductive Load: Maximum 500 mH
_______________________________________________________________________________________________
Communication Interface
Ethernet Ports: 2 x RJ-45, supporting 10/100 Mbit/s.
Environmental Adaptability
Protection Level: IP20 (Low protection level, suitable for dust-free environments).
Operating Temperature Range: 0°C to 60°C
Storage Temperature Range: -40°C to +85°C
Ex-Zone Certification: Complies with Ex II 3 G EEx nA II T4 X standard, suitable for explosive areas.
_______________________________________________________________________________________________
3. Product Features
High Reliability: Complies with IEC 61508 standard (functional safety), suitable for scenarios requiring high safety levels such as SIL 2/3.
Flexible I/O Configuration: Supports 16 digital inputs and 8 digital outputs, meeting the needs of small and medium-sized safety loops.
Explosion-Proof Design: Equipped with Ex-Zone certification, suitable for hazardous environments.
Industrial-Grade Communication: Built-in dual Ethernet ports, supporting safe network communication.
Compact Design: Compact DIN rail mounting, saving space.
_______________________________________________________________________________________________
4. Structure and Composition
I/O Interface Area: Includes 16 digital input terminals, 8 digital output terminals, sensor power supply terminals, etc.
Power Interface: For connecting 24 VDC power supply.
Communication Interface: 2 RJ-45 Ethernet ports.
Module Base: Snap-on structure for DIN rail mounting.
————————————————————————————————————-
