HIMA X-FAN1003 993201013 Fan Module
HIMA X-FAN1003 993201013
X-FAN1003 is a dedicated fan module provided by HIMA for Safety Instrumented Systems (SIS), and it belongs to the standard model of the X-FAN series. Designed specifically to meet the heat dissipation needs inside control cabinets, power distribution cabinets, and enclosures in industrial sites, it can provide reliable and constant air volume and air pressure while ensuring the safety integrity of the system. This module is often used in conjunction with HIMA’s digital/analog I/O modules such as X-DI, X-SB, and X-DO to form a complete safety control system.
Main Technical Parameters
- Part Number: 993201013
- Model: X-FAN1003
- Power Supply: 24 V DC (12 V DC optional)
- Power Consumption: ≤ 5 W (typical)
- Air Volume: ≈ 3 m³/min (at rated voltage)
- Air Pressure: ≈ 150 Pa (static pressure)
- Operating Temperature Range: -25 °C ~ +70 °C
- Protection Class: IP20 (for internal installation)
- Service Life: ≥ 30,000 h (continuous operation)
- Safety Integrity Level (SIL): Redundant design meeting SIL 2 / SIL 3 requirements
- Interface: Standard 24 V DC terminal block, compatible with the power bus of HIMA X-Series modules
Product Features

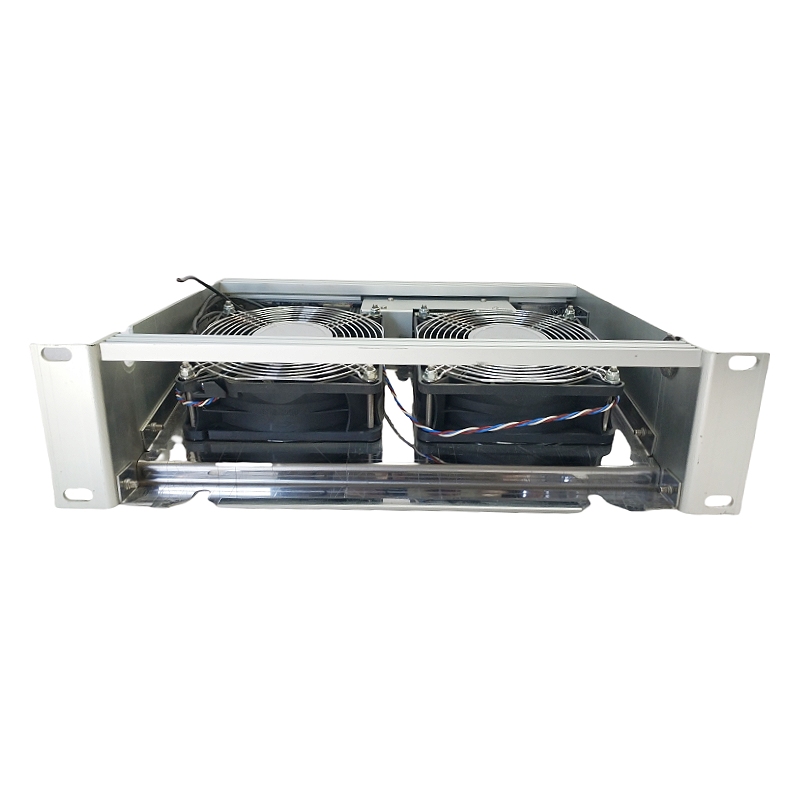

- Safety Redundancy: Adopts an internal dual-fan parallel structure. Even if one fan fails, the other can still maintain the required air volume, meeting the fault-tolerance requirements of Safety Instrumented Systems (SIS).
- Low-Power Design: When powered by 24 V DC, the power consumption is controlled below 5 W, reducing the overall system energy consumption.
- Compact Installation: With dimensions of approximately 120 mm × 80 mm × 45 mm, it is compatible with standard 19-inch cabinets or DIN rails.
- High Reliability: Uses a brushless DC motor with a service life of ≥ 30,000 h, suitable for industrial environments requiring continuous operation.
- Easy Maintenance: Modular structure allows quick disassembly and replacement of the fan without removing the entire control cabinet.
- Strong Compatibility: Features a unified interface with HIMA X-Series I/O, communication, and power supply modules, facilitating the design of the overall system.
Structure and Composition
- Housing: Die-cast metal housing, providing mechanical protection and heat dissipation channels.
- Motor: Brushless DC fan motor equipped with an electronic drive circuit.
- Power Input Terminals: 24 V DC terminals with reverse connection protection.
- Air Duct: Internal flow guide structure to ensure uniform distribution of air flow inside the cabinet.
- Monitoring Circuit: Built-in speed monitoring function, outputting fan operation status signals for upper-level system diagnosis.
- Fixing Bracket: DIN rail buckle or screw installation method, compatible with various cabinet layouts.
Typical Application Fields
- Petroleum and Chemical Industry: Heat dissipation for safety instrument cabinets and process control cabinets.
- Power System: Temperature control for substation automation and power distribution cabinets.
- Metallurgy and Metal Processing: Heat dissipation for control cabinets in high-temperature environments.
- Pharmaceutical and Food Industry: Safety control systems meeting GMP requirements.
- Marine and Offshore Platforms: Corrosion-resistant housing suitable for marine environments.
- Other industrial sites requiring high-reliability safety control.
Installation and Maintenance Points
Installation
- Installation Location: Should be installed in the area near heat sources inside the cabinet, ensuring that the air inlet and outlet are not blocked.
- Power Wiring: Use 24 V DC power cables complying with the IEC 60364 standard, ensure correct polarity to avoid reverse connection.
- Grounding: The housing must be reliably grounded to prevent electromagnetic interference and safety hazards.
- Ventilation Path: Keep the channels of the air inlet and outlet unobstructed; if necessary, use them in conjunction with the ventilation holes on the side wall of the cabinet.
Maintenance
- Regular Inspection: Check the fan speed signal, noise, and housing cleanliness every 6 months; if abnormalities are found, replace the fan unit immediately.
- Replacement Steps: Disconnect the power supply → loosen the fixing bracket → pull out the old fan module → align the new module with the DIN rail buckle → rewire and confirm the polarity → power on and test the operation status.
————————————————————————————————————-
