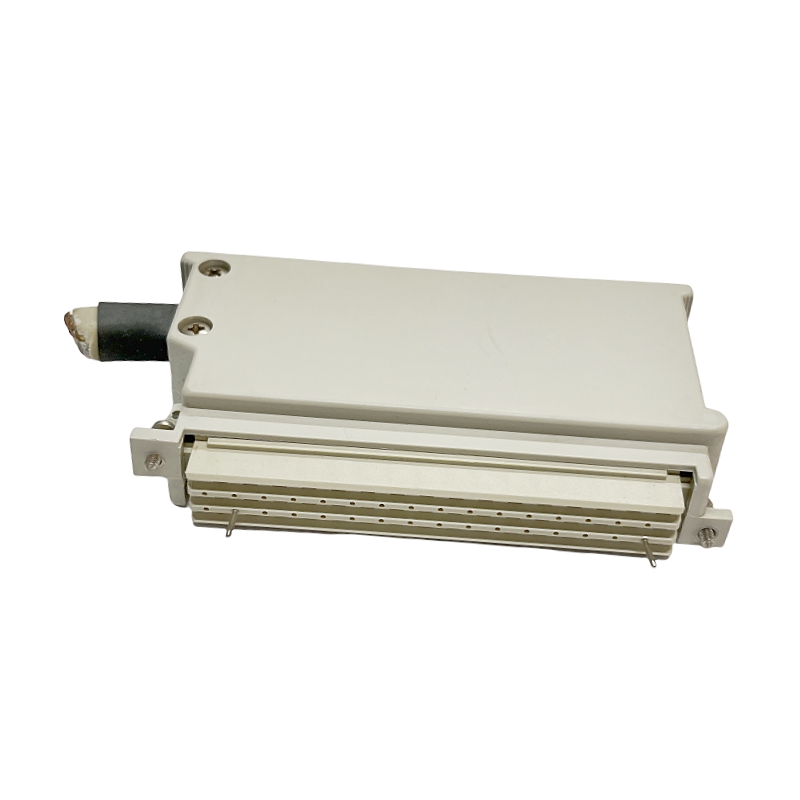

HIMA Z7149 Expansion Module

Short Description:

HIMA Z7149 is a dedicated communication interface or system expansion module designed by HIMA (Germany) for its modular safety control systems, such as the HIMatrix® or Planned series. This model represents a functional unit with a specific configuration, usually serving as a key gateway between the safety controller and external subsystems, third-party devices, or specific industrial networks. providing operators with a unified monitoring view and decision support.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Brand: HIMA

Manager: Jinny

E-mail: sales5@xrjdcs.com

Tel: + 86-15359273791

( WhatsApp )Wechat: + 86-15359273791

Warranty: one year

In stock: In stock

Send email to us Download as PDF

Product Detail

Product Tags

HIMA Z7149

Product Parameters

Product Model: Z7149
Manufacturer: HIMA
Product Type: Dedicated communication interface module or system expansion module
Core Functions: Protocol conversion, network gateway, bus connection
Supported Protocols: Supports PROFIBUS-DP, Modbus, or HIMA’s dedicated redundant protocol
Interface Type: Depends on configuration, which can include SUB-D interface (for PROFIBUS), RJ45 (for Ethernet)
Transmission Rate: Matches the supported protocol (e.g., up to 12 Mbps for PROFIBUS-DP)
Operating Mode: Master or Slave (configurable)
Power Supply: Powered by the power module through the system backplane (e.g., 5V DC)
Power Consumption: Typically < 3W
Operating Temperature: 0°C to +60°C
Installation Method: Plugged into the HIMA system base/rack (e.g., HIMA F 7120)

Structure and Composition

The HIMA Z7149 module adopts a robust industrial-grade metal housing design to ensure excellent electromagnetic interference (EMC) resistance and heat dissipation performance. The front panel of the module is equipped with multiple LED status indicators, which are used to display the module’s power supply, operating status, network activity, data transmission/reception, and any fault conditions in real time. Its internal core is a highly integrated printed circuit board (PCB), on which a dedicated communication processor (CP), firmware memory, protocol chip, and interface circuit are mounted. The communication processor is responsible for executing complex protocol stacks and data mapping tasks. According to its functional definition, the module is equipped with specific physical communication interfaces—for example, a 9-pin SUB-D interface for connecting to a PROFIBUS network, or an RJ45 interface for Ethernet connection. These interfaces work in coordination with the main processor through the internal bus. The module is connected to the backplane of the HIMA system (e.g., HIMA F 7120) via the gold-plated backplane connector at the bottom, enabling high-speed data interaction with the HIMA F 3×100 series CPU.

Key Features and Advantages

Certified Safety Communication: The core advantage of the HIMA Z7149 module lies in its implementation of certified safe communication capabilities. When used to connect remote I/O stations or other safety controllers, it can ensure the integrity and reliability of safety data during transmission, preventing the failure of safety functions caused by data errors or delays, and meeting the communication requirements of the highest safety level (SIL 3).
High Performance and Low Latency: The module’s integrated dedicated communication processor operates independently, effectively offloading the communication burden of the main CPU. This ensures that the execution cycle of the safety control program is not affected by network communication traffic, achieving deterministic system response and extremely low data transmission latency.
Powerful Diagnostics and Monitoring Functions: It provides detailed communication diagnostic information, such as network node status, baud rate, signal quality, and message error count. This information is presented to users through clear LED indicators and configuration software interfaces, which greatly simplifies network debugging and fault troubleshooting processes and improves system maintainability.
Flexible Integration Capabilities: By supporting a variety of mainstream industrial protocols, HIMA Z7149 can act as a gateway to seamlessly integrate the HIMA safety system into almost any existing automation architecture (e.g., Siemens PROFIBUS network or Schneider Modbus network), protecting users’ existing investments and enhancing system openness.

Application Fields

The HIMA Z7149 module is widely used in various industrial fields that require in-depth integration of safety systems and process control systems. In the petrochemical and natural gas industry, it is often used as a PROFIBUS-DP master or slave to connect the HIMA safety controller with distributed I/O stations, or as a gateway integrated into a control network dominated by Siemens DCS/PCS7, enabling data exchange between the safety system (ESD/F&G) and the process control system. In the power industry, it is used to connect the boiler protection system (FSSS) with the main control DCS to ensure the reliable upload of key protection signals. In large-scale manufacturing industries, such as automobile production lines, HIMA Z7149 can realize the integration of safety PLCs with standard automation networks (e.g., PROFIBUS), transmitting safety status information to robot controllers and MES systems to achieve coordination between safety and production.

Installation and Maintenance

Pre-Installation Preparation

Before installing the HIMA Z7149 module, it is necessary to ensure that the power supply of the entire HIMA system is completely turned off. Verify that the module model and hardware version are compatible with the system. According to the network plan, prepare communication cables that meet standards (e.g., shielded PROFIBUS cables) and make corresponding connectors. Plan the network topology and node addresses to ensure no conflicts with other devices in the network.

Maintenance Recommendations

Daily maintenance mainly focuses on status monitoring. Regularly observe the LED status indicators of the module to confirm that the power supply, network activity, and fault indicators display normally. Regularly check the communication diagnostic counters through HIMA’s configuration software, and pay attention to alarms such as communication errors, timeouts, or node loss. Ensure that the communication port connections are secure and the cable shielding layer is properly grounded. Before making any network configuration changes or replacing the module, be sure to back up the current configuration parameters. If the module is replaced, it is usually necessary to download the original configuration to the new module and check whether the network parameters match.

————————————————————————————————————-
