GE IC693MDL230C

Product Overview

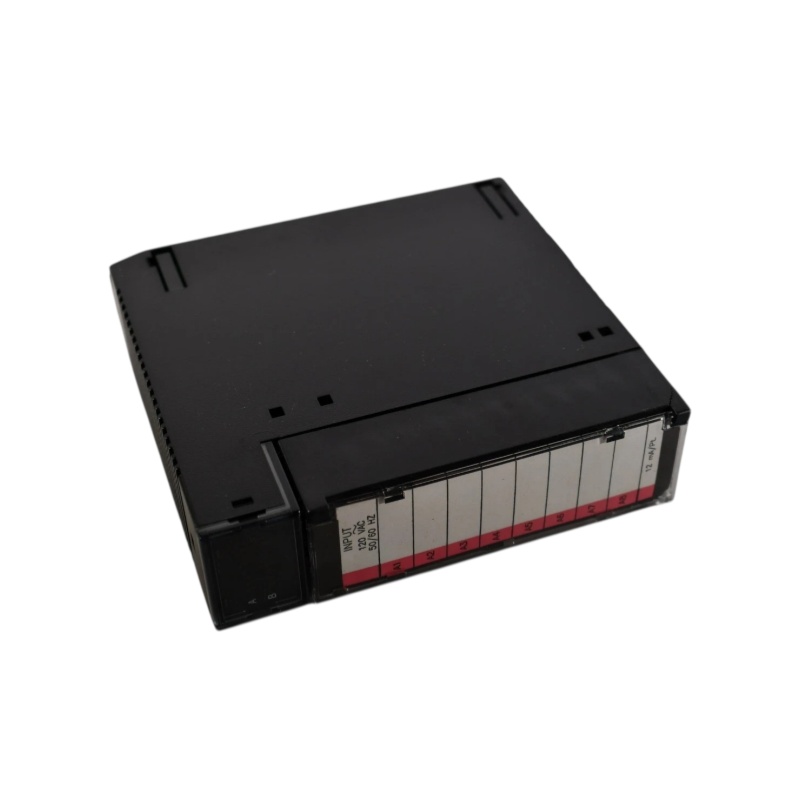

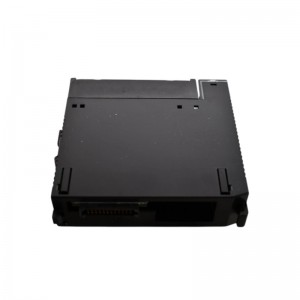

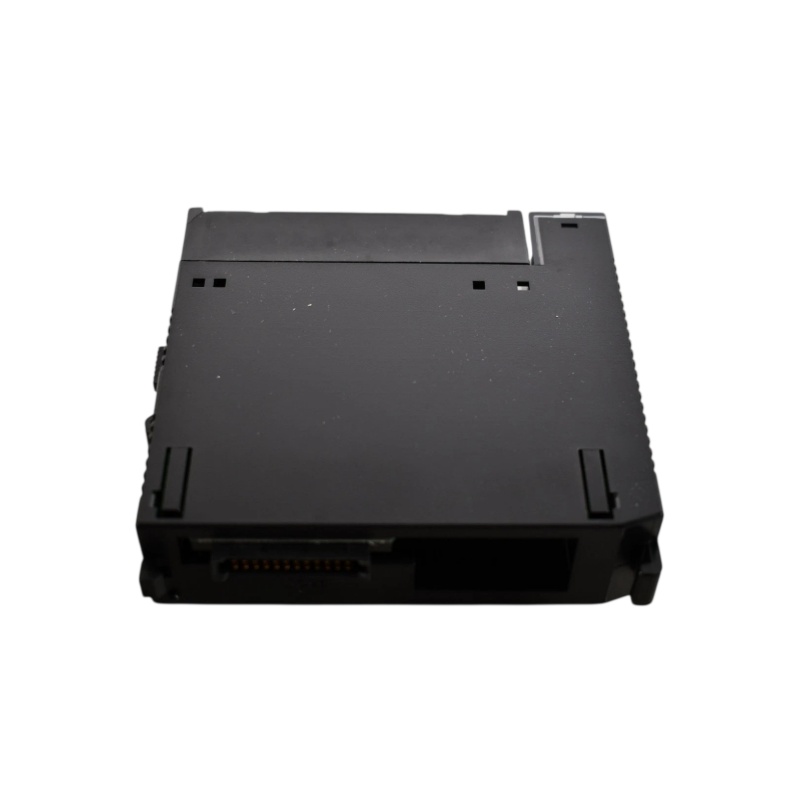

The GE Fanuc IC693MDL230C is a 120 VAC isolated input module designed for the Series 90-30 programmable logic controller. It receives discrete signals from external field devices and transfers their status to the PLC for processing. With eight isolated input points, this module supports dependable signal acquisition in industrial automation systems.

Technical Specifications

Key Features

• Eight Input Channels: Monitors multiple discrete field signals through one module.
• AC Signal Compatibility: Designed for 120 VAC input circuits.
• Electrical Isolation: Helps separate field-side circuits from the PLC logic side.
• LED Status Indicators: Allows technicians to check individual input states.
• Flexible Integration: Fits compatible Series 90-30 PLC baseplates.

Application Areas

This module is suitable for factory automation, machine control, and industrial equipment monitoring. It can receive signals from compatible pushbuttons, limit switches, and other AC-operated field devices. Consequently, the PLC can use these signals to monitor machine conditions and execute programmed sequences.

Installation and Maintenance

Before installation, confirm the rack compatibility and field wiring configuration. Disconnect power before servicing, and use the manufacturer’s wiring diagram to verify terminal connections. During maintenance, inspect wiring and connectors, then check the input indicators to help identify signal problems.

Supply Support

Our company supplies industrial automation spare parts, including PLC modules, DCS components, control boards, power supplies, and other electronic assemblies. We assist customers with product identification and replacement sourcing for existing installations. Contact us with your required quantity and product condition preference for a quotation.
