GE IS200TBTCH1BCB Thermocouple Input Board
GE IS200TBTCH1BCB
Product Overview

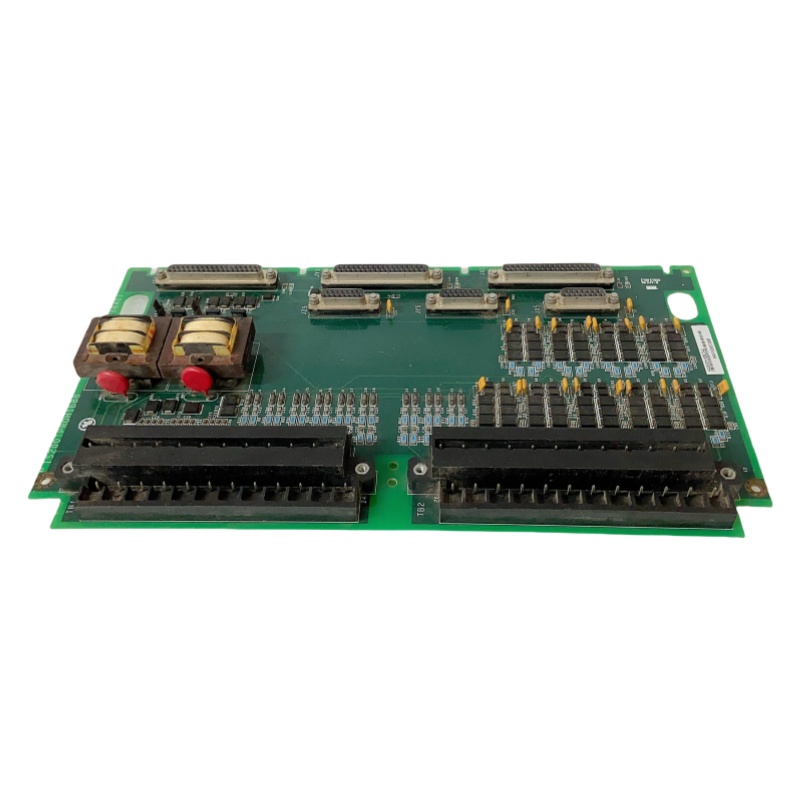

The GE IS200TBTCH1BCB is a thermocouple input terminal board designed for GE Mark VI turbine control systems. It receives temperature signals from field-mounted thermocouples and routes them to compatible I/O processing hardware for measurement and monitoring. The board supports temperature acquisition in turbine control applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS200TBTCH1BCB |
| Product Type | Thermocouple Input Terminal Board |
| Functional Acronym | TBTC |
| Control Platform | Mark VI / compatible Mark VIe configurations |
| Input Channels | 24 thermocouple inputs |
| Thermocouple Types | E, J, K, S, T |
| Field Connections | Two terminal blocks |
| I/O Interface | DC-type connectors |
| Installation | Panel-mounted |
The supported thermocouple types and channel configuration depend on the connected I/O processor and system arrangement.
Key Features
- Multi-Channel Temperature Acquisition: Connects multiple thermocouples through a single terminal board.
- Signal Routing: Transfers field signals to compatible I/O processing boards.
- Cold-Junction Compensation: Supports accurate thermocouple measurement by accounting for reference-junction temperature.
- Noise Suppression: Helps reduce high-frequency interference in temperature signal circuits.
- Redundant System Support: The H1B board configuration supports triple modular redundant (TMR) arrangements.
Applications
The IS200TBTCH1BCB is suitable for turbine temperature monitoring in power generation facilities. Typical measurement points include turbine sections, exhaust systems, and auxiliary equipment where thermocouple feedback supports operational monitoring.
Installation and Maintenance
Mount the board securely and connect thermocouple wiring according to the approved system diagram. Check terminal tightness, cable shielding, and connector condition during routine inspections. Before replacing the board, verify its revision and compatibility with the installed I/O processor and redundancy configuration.
————————————————————————————————————-
