1. Product Overview

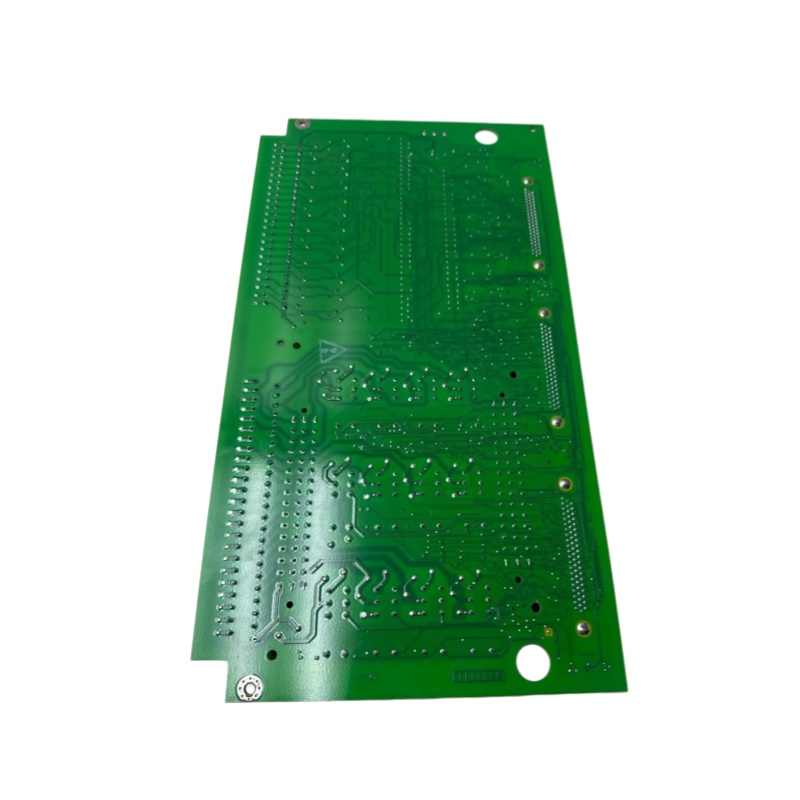

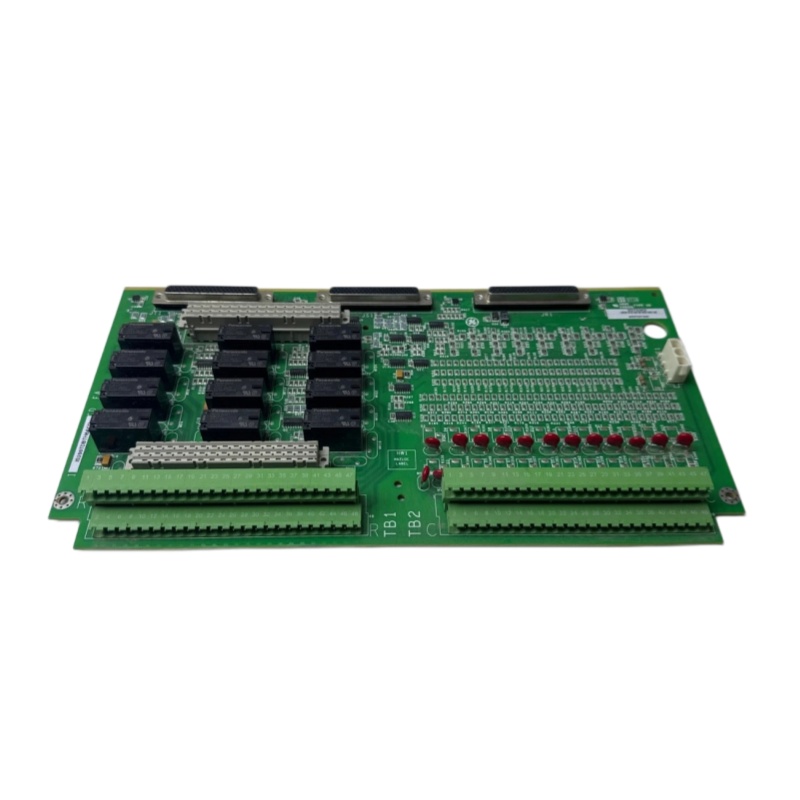

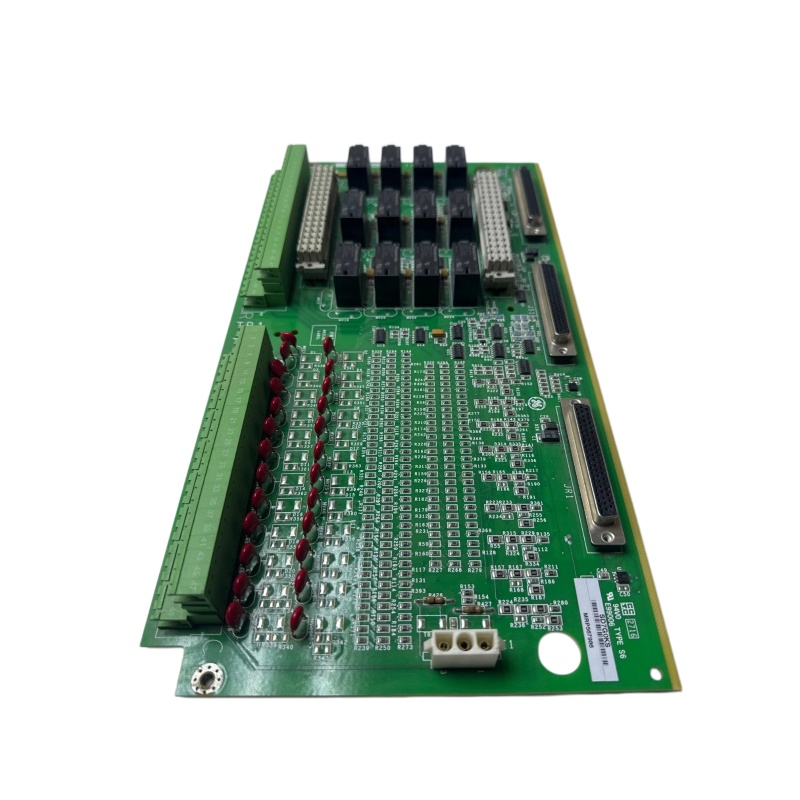

• Discrete Input/Output Terminal Board (TDBT): Collects digital signals and drives output relays for on-site signal acquisition and execution control.
• 4-Channel Quadrature Decoder Module: Converts pulse signals from quadrature encoders into digital position data to support high-precision position monitoring.
• Triple Modular Redundancy (TMR) Unit: Functions as a functional component of the GE Fanuc 90-30 PLC system to enhance system operational reliability.
• Digital I/O Module: Specialized for Safety Instrumented Systems (SIS) to ensure safe and stable operation of industrial production processes.

2. Technical Parameters

Functional Parameters

• Channel Configuration: 32 I/O points / 4 independent channels / 24 isolated input channels + 12 relay output channels
• Input Voltage: 24 VDC / 48 VDC / 125 VDC
• Maximum Counting Frequency: Up to 10 MHz
• Communication Interfaces: RS-232, RS-485, CAN and other industrial bus interfaces
• Ingress Protection Rating: IP20 / IP65 / IP67 (varies by specific model)

3. Product Features

• High Reliability: Adopts industrial-grade raw materials and triple modular redundancy design, effectively resisting complex industrial environment interference and supporting long-term continuous stable operation.
• Isolation Protection Design: Built-in electrical isolation structure between input and output terminals eliminates cross-interference of signals and significantly improves the overall anti-interference ability and operational stability of the control system.
• High-Speed Data Processing: Equipped with a 32-bit RISC processor, the maximum data processing rate reaches 12 MHz, realizing rapid response and real-time processing of industrial signals.
• Powerful Programmability: Supports multiple interrupt modes with a maximum resolution of 24 bits, meeting the precise control requirements of complex industrial processes.
• Simple Configuration and Use: Complies with the IEC 61131-3 international programming standard, with standardized configuration logic, low operation threshold and convenient secondary development.
• Compact and Integrated Structure: Miniaturized overall design saves installation space, suitable for installation in compact industrial equipment and limited-space scenarios.
• Standard Compliance: Fully compliant with UL, CSA, IEC and other international industrial safety and quality certification standards, with high universality and safety.

4. Structure and Composition

• Processor and Controller: Built-in 32-bit RISC high-speed processor, serving as the core for data calculation, signal processing and logic control.
• Input/Output Interface Unit: Integrated digital I/O channels, compatible with multiple analog and digital signal types to meet diverse industrial signal acquisition and output demands.
• Communication Module: Embedded with RS-232, RS-485, CAN and other mainstream industrial communication protocols, supporting data interaction and remote transmission between devices.
• Protection Circuit System: Equipped with professional protection circuits for short circuit, overload, phase loss and ground fault, effectively avoiding equipment damage caused by electrical faults.
• Standard Connectors: Adopts universal 9-pin D-Sub interface and standard relay base interface, ensuring convenient wiring and strong compatibility.
• Circuit Board Materials and Components: The main board is made of high-strength FR4 material, equipped with SMD and DIP dual-type electronic components, balancing structural stability and electrical performance.

5. Application Fields

• Gas Turbine Control: Applied to gas turbine drive and automatic control systems in electric power, petroleum, chemical engineering, marine engineering and other industries.
• Industrial Automation: Used for discrete logic control, analog quantity regulation, motion control, robot automatic control and full-process industrial process monitoring.
• Safety Instrumented System (SIS): Serves as a core control component for fire alarm systems, gas leakage detection systems, emergency shutdown systems and safety interlock protection systems.
• CNC Machining Industry: Applied to precision servo drive control and industrial robot motion control to ensure processing accuracy.
• Building Automation: Realizes real-time monitoring and data collection of building electromechanical equipment and process operation parameters.
• Test and Measurement: Supports high-speed industrial data acquisition, signal analysis and parameter calibration for testing equipment.
