1. Product Overview

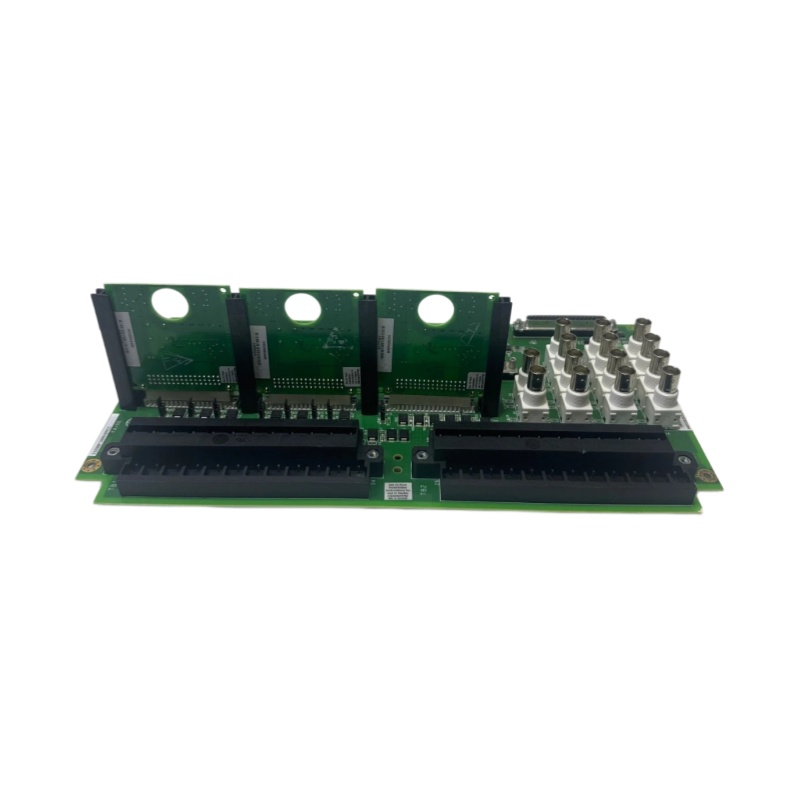

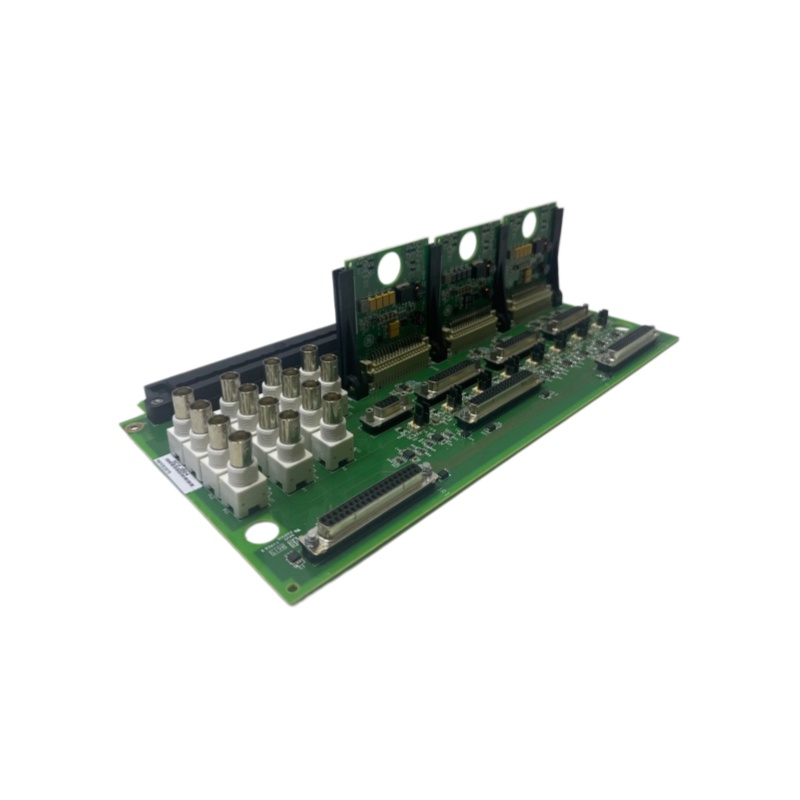

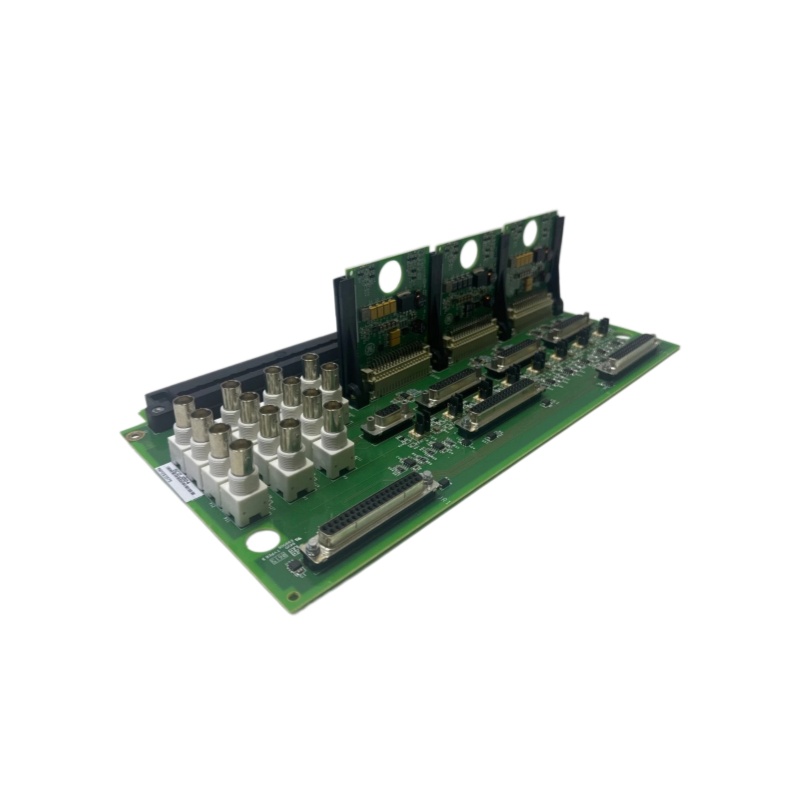

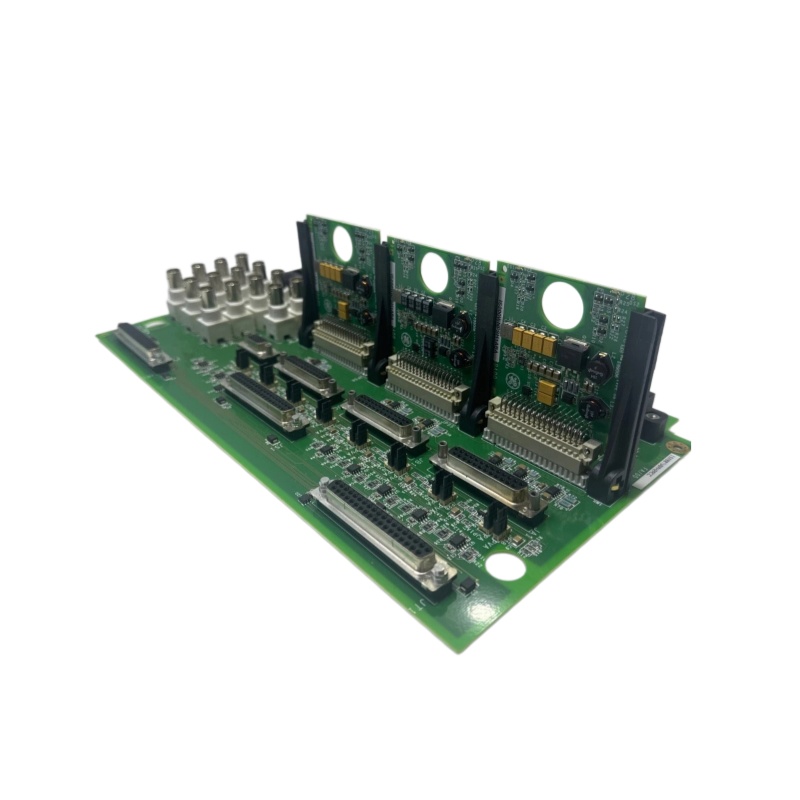

GE IS200TVBAH2ACC is a vibration input terminal board / vibration monitoring card manufactured by General Electric (GE). It is a component of the GE Mark VI/Mark VIe series control system and a printed circuit board in the GE Speedtronic turbine control series. This module collects equipment vibration data to realize real-time monitoring of equipment operating status, so as to detect potential faults in advance and ensure the safe operation of equipment.
2. Product Parameters
Power Supply Voltage: 24V DC
Operating Temperature: -40°C to +85°C
Number of Channels: 4 Channels
Measurement Range: ±5g
Resolution: 24-bit
Sampling Rate: Up to 10 kHz
Sensor Type: IEPE Accelerometer
Power Consumption: <5W
Ingress Protection Rating: IP65
Dimensions: 160 mm × 110 mm × 40 mm
Weight: 0.5 kg
3. Product Features
High Reliability: Adopts industrial-grade components with high stability and reliability, suitable for harsh industrial environments.
High Precision: Equipped with high measurement accuracy, enabling accurate collection of vibration signals.
Modular Design: The modular structure facilitates quick installation and daily maintenance.
Multi-channel Support: Supports 4 vibration channels, which can collect vibration signals from multiple measuring points simultaneously.
Strong Compatibility: Seamlessly integrated with the GE Mark VIe control system.
Alarm Function: It can trigger alarm signals in a timely manner when abnormal equipment vibration is detected.
4. Structure and Composition
IS200TVBAH2ACC adopts a modular design, and its main components are as follows:
Terminal Block: Provides input and output terminals for connecting vibration sensors and control systems.
Connector: Used for connection with the main controller and other functional modules.
Circuit Board: Integrates complete circuits for signal collection, processing and conversion.
5. Application Fields
IS200TVBAH2ACC is widely used in multiple industrial fields and core equipment, with detailed applications as follows:
5.1 Main Application Equipment
Gas Turbine: Monitors the vibration status of gas turbines to guarantee safe and stable operation.
Steam Turbine: Tracks steam turbine vibration to prevent faults such as rotor imbalance.
Compressor: Detects compressor vibration to evaluate overall equipment performance and operating conditions.
5.2 Industry Applications
Energy Industry: Gas turbine power generation, combined cycle power generation, etc.
Petroleum and Natural Gas Industry
Chemical Industry
Electric Power Industry
Iron and Steel Industry
Papermaking Industry
Shipbuilding Industry: Ship propulsion system monitoring and other scenarios
Mining Industry
Aerospace Industry
Automotive Industry
Food Processing Industry
5.3 Core Functions
Vibration Monitoring: Real-time monitoring of equipment vibration status to evaluate overall operating conditions.
Fault Diagnosis: Analyzes vibration signal data to identify potential equipment faults in advance and avoid major economic losses.
Condition Monitoring: Monitors equipment wear degree to support predictive maintenance and extend equipment service life.
6. Installation and Maintenance
6.1 Installation Method
The product adopts DIN rail mounting mode. Benefiting from the integrated modular design, it features simple and fast installation. It has excellent compatibility with the GE Mark VIe control system and can realize seamless system integration.
6.2 Maintenance Key Points
The product is designed with a rugged and durable structure, which can adapt to harsh industrial environmental conditions. It is equipped with multiple protection functions including overcurrent protection and overheat protection. The standardized modular design greatly reduces the difficulty of daily inspection and replacement, realizing efficient and convenient equipment maintenance.
