GE IS200VGENH1B

Product Overview

The GE IS200VGENH1B is a VGEN Generator Monitor and Trip Board from the GE Mark VI Speedtronic turbine control platform. It is designed to monitor generator electrical conditions and support turbine protection functions in demanding power-generation applications.

The board provides an interface for monitoring generator voltage and current signals. In applicable turbine configurations, it can also support specialized control functions associated with large reheat steam turbines, including Power Load Unbalance (PLU) and Early Valve Actuation (EVA).

Technical Profile

The exact signal configuration and application depend on the turbine control architecture in which the board is installed.

Functional Characteristics

The IS200VGENH1B has two important roles within suitable Mark VI applications. First, it provides an interface for three-phase potential transformer (PT) and current transformer (CT) monitoring, allowing generator electrical information to be incorporated into the turbine control system.

Second, in certain reheat steam turbine configurations, the VGEN board can participate in specialized turbine control functions. Its monitored electrical information can be used for power-load unbalance and early-valve actuation, functions intended to support rapid turbine response under specific operating conditions.

The VGEN board works with associated terminal hardware, including the TGEN terminal board, as part of the broader Mark VI control architecture.

Board Construction and Interface

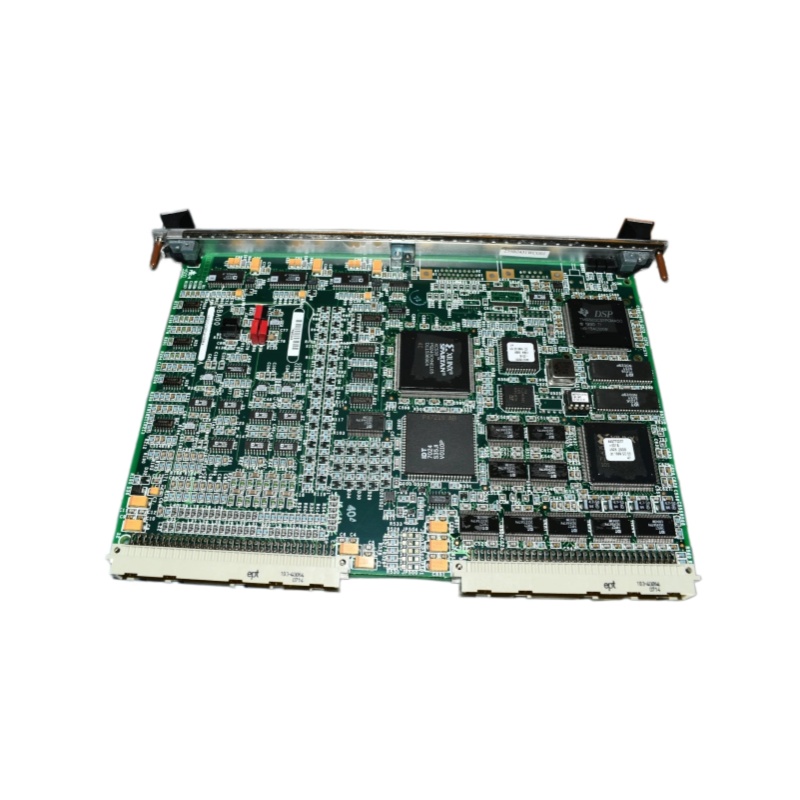

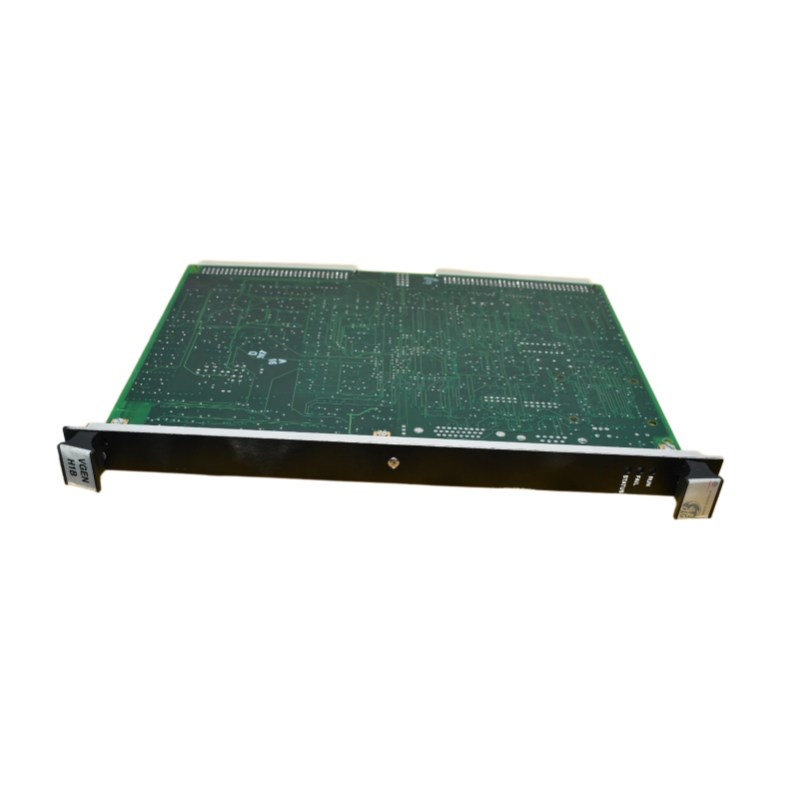

The IS200VGENH1B is a VME-style circuit board designed for installation in the appropriate GE Mark VI rack assembly. It includes two backplane connectors and a front faceplate used for rack installation and identification.

Its electronic construction incorporates programmable and logic-related components, including Xilinx XCS30 FPGA and XC95216 programmable logic devices, together with integrated circuits, resistors, capacitors, diodes, and other supporting components.

The B revision is therefore more than a simple passive terminal interface; it contains active electronic circuitry responsible for signal processing and control-related functions.

Applications in Power Generation

The GE IS200VGENH1B is primarily associated with turbine and generator control environments. Typical applications include:

• Steam turbine control systems
• Large reheat steam turbines
• Generator monitoring
• Generator protection architectures
• Power-load unbalance monitoring
• Early valve actuation functions
• GE Mark VI Speedtronic installations
• Turbine maintenance and modernization projects

Because generator monitoring and turbine protection are closely related to safe plant operation, the correct board revision and system configuration should always be confirmed before replacement.

Installation and Maintenance

Before replacing an IS200VGENH1B, isolate the relevant VME I/O processor rack and follow the site’s approved electrical safety and maintenance procedures. Installation guidance for this board specifies powering down the VME I/O processor rack before seating the VGEN board.

During maintenance, inspect the backplane connectors, board edge contacts, front-panel connections, and visible electronic components for contamination, corrosion, overheating, or physical damage. Proper ESD protection should be used when handling the PCB.

For replacement procurement, verify the complete part number IS200VGENH1B, functional revision, associated terminal-board arrangement, and existing Mark VI application. Careful model verification helps reduce compatibility problems and supports a faster return to service for legacy turbine control equipment.
