1. Product Overview

2. Parameters & Specifications

• Voltage Rating: 115V/230V AC dual-voltage design, delivering wide compatibility with diverse power supply environments.
• Input/Output Channels: The exact number of channels varies slightly by specific sub-model, while the typical configuration integrates multiple analog input (AI) and analog output (AO) channels to meet diversified signal collection and transmission demands.
• Connectors: Equipped with Euroblock terminal blocks or dedicated industrial connectors, simplifying on-site wiring operations and enhancing wiring stability.
• Installation Method: DIN rail mounting, featuring a robust mechanical structure that adapts to harsh industrial installation conditions and ensures long-term stable fixation.

____________________________________________________________________________________________

3. Product Features

• Modular Design: Adopts a highly integrated modular structure, which greatly facilitates on-site maintenance and component replacement. In case of module faults, quick replacement can be realized, significantly shortening troubleshooting time and reducing equipment downtime.
• High Reliability: Engineered specifically for harsh industrial environments, with superior anti-interference and anti-vibration performance. It can operate stably in complex working conditions with electromagnetic interference and mechanical vibration, ensuring continuous and reliable signal transmission.
• Dual-Voltage Compatibility: Supports both 115V AC and 230V AC power inputs, eliminating the limitation of regional power grid specifications and adapting to global industrial application scenarios.
• Compliance with Industrial Standards: Meets the stringent requirements of the International Electrotechnical Commission (IEC) and other authoritative industrial standards, guaranteeing product quality, safety performance and operational compliance.

____________________________________________________________________________________________

4. Structure & Components

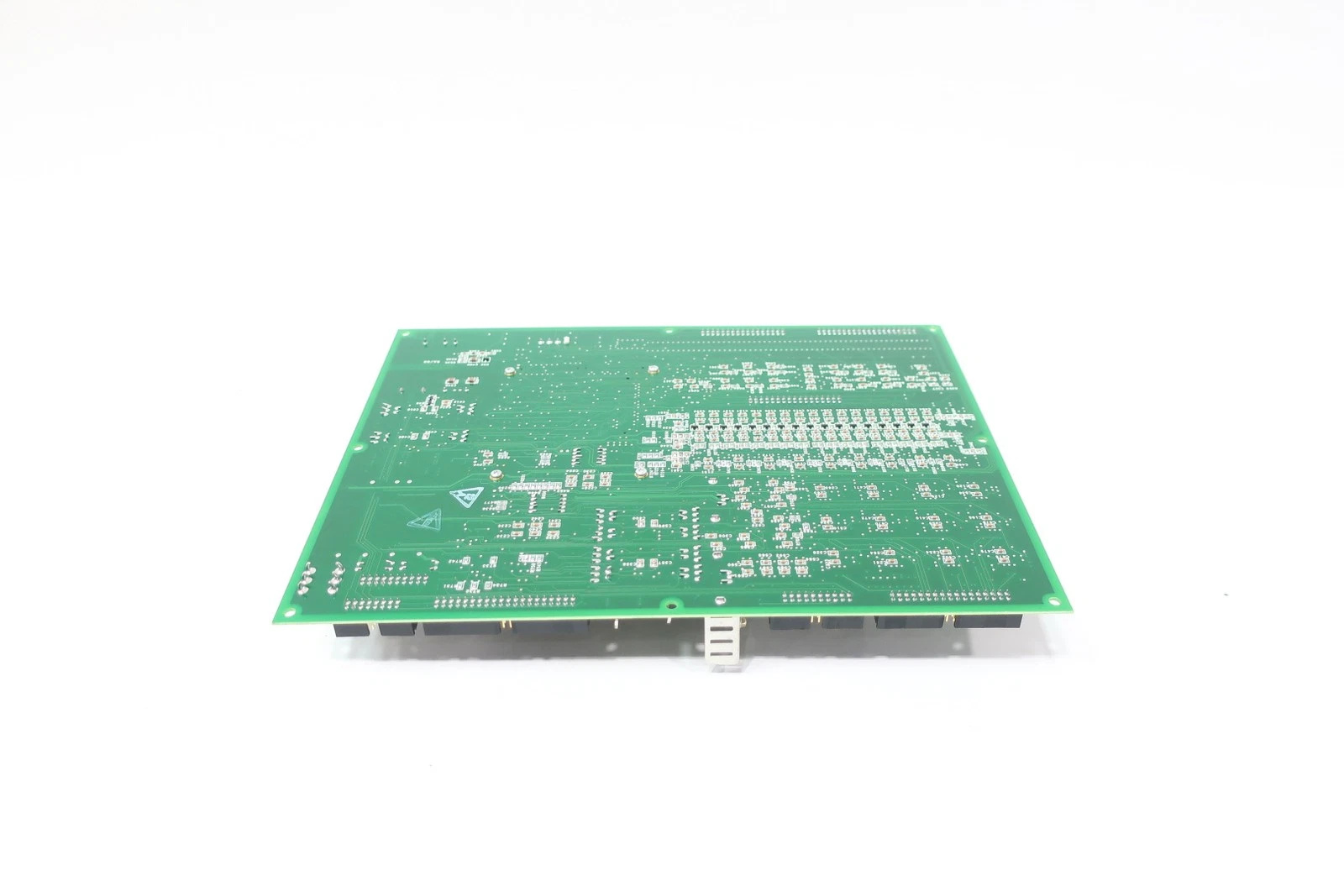

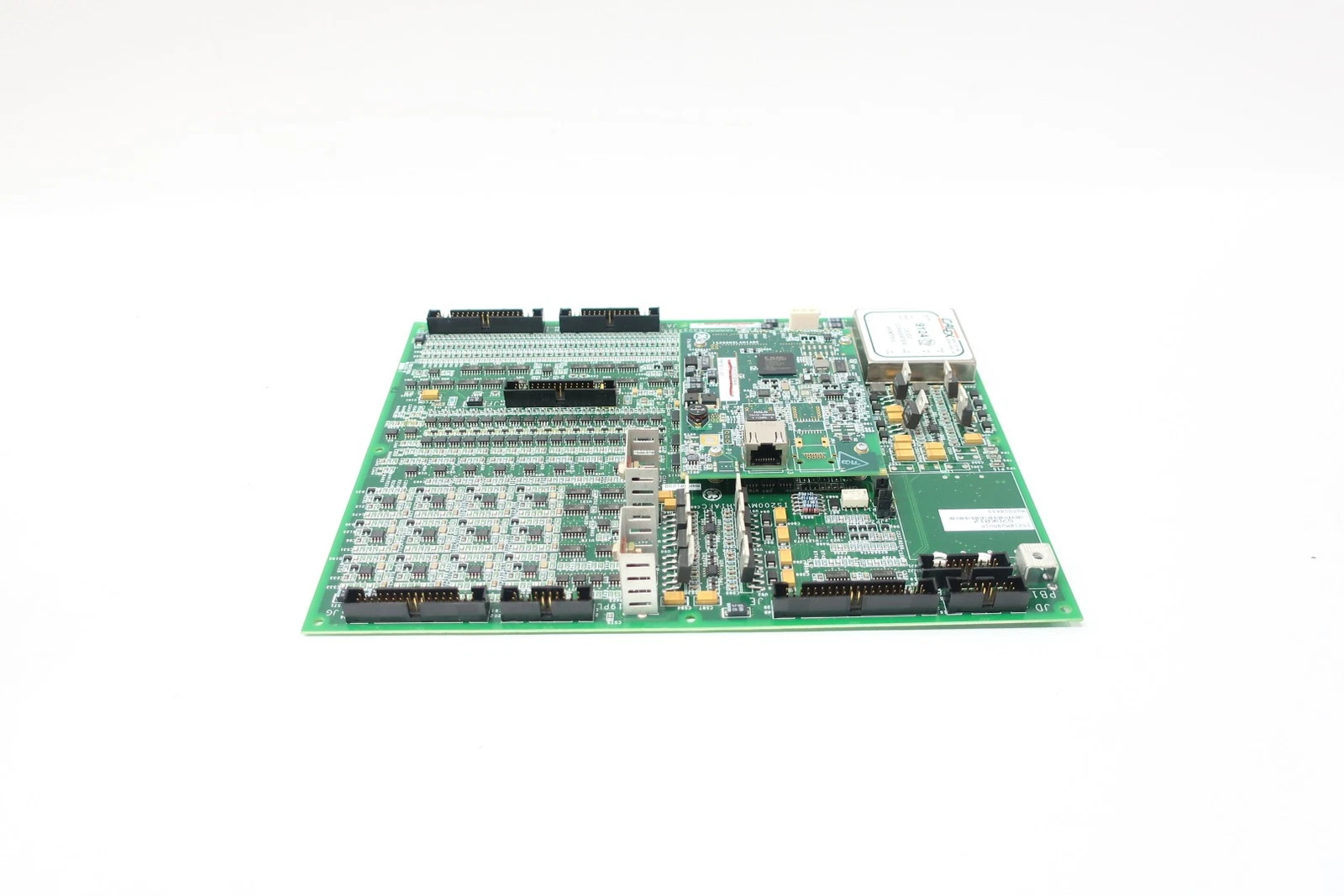

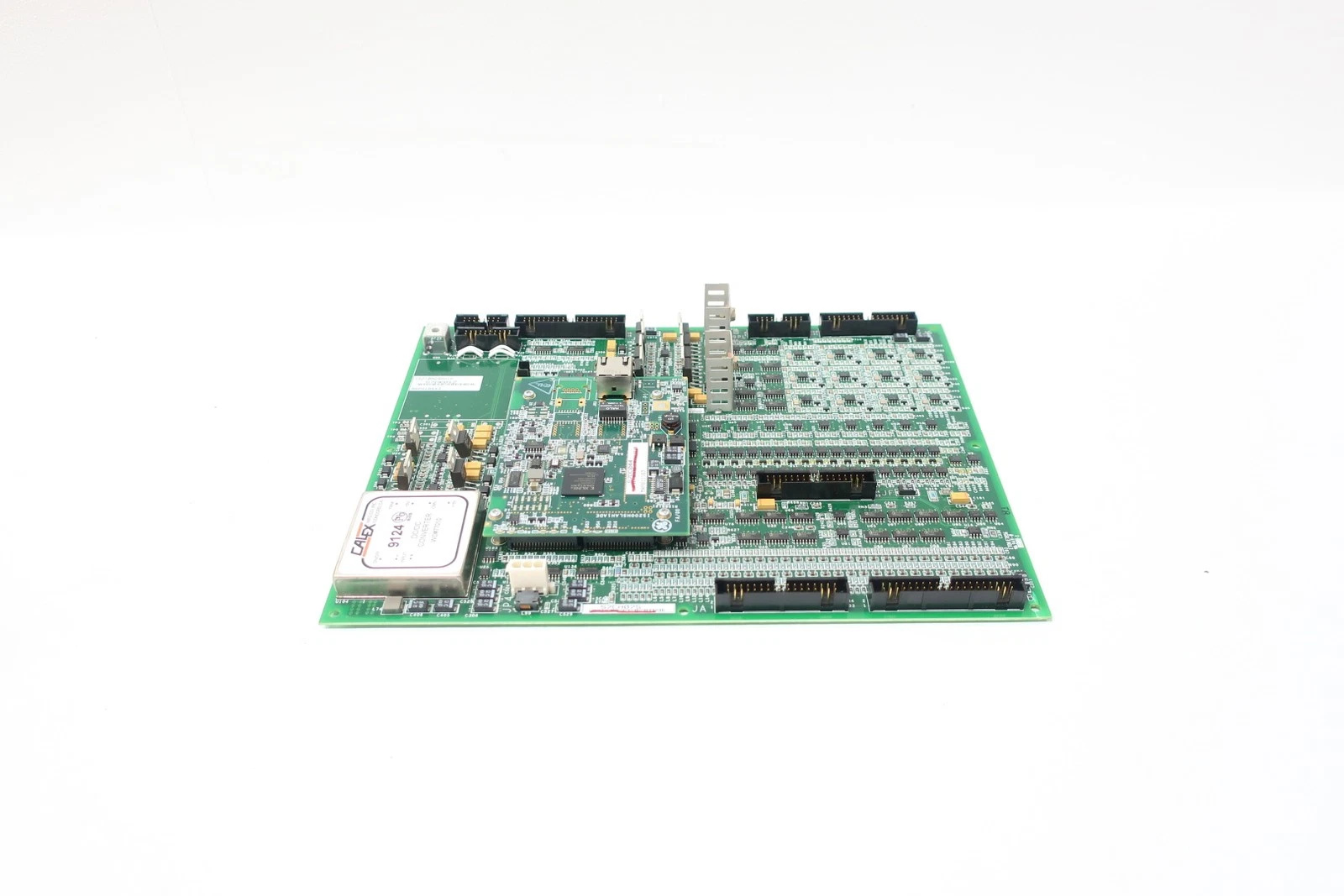

• Main PCB Board: The core component of the module, integrating analog front-end circuits, signal isolators, signal conditioning circuits and other key circuits, responsible for signal acquisition, conversion and conditioning.
• Terminal Block: Positioned at the edge of the PCB board, designed for convenient on-site wiring, with clear wiring identification to avoid misconnection and improve wiring efficiency.
• Terminal Strips: Equipped with multiple high-quality terminal strips, providing reliable connection interfaces for field sensors, actuators and other peripheral equipment.
• Identification Label: Clearly marked with key information including the product model (IS210MVRAH1A), serial number, and manufacturer logo (GE), facilitating product identification, traceability and later maintenance management.

____________________________________________________________________________________________

5. Application Fields

• Turbine Management Systems: Serves as a core control component for gas turbines and steam turbines, supporting real-time monitoring and regulation of turbine operating parameters.
• Power Plants: Applied in thermal power plants, combined cycle power plants and other power generation facilities, responsible for collecting and transmitting critical operating parameters of generator sets to ensure safe and efficient power generation.
• Large Industrial Machinery: Used in various large-scale mechanical equipment involving complex process control, providing stable signal support for automated production and process regulation.
