GE IS220PDOAH1B I/O Packet Module
GE IS220PDOAH1B

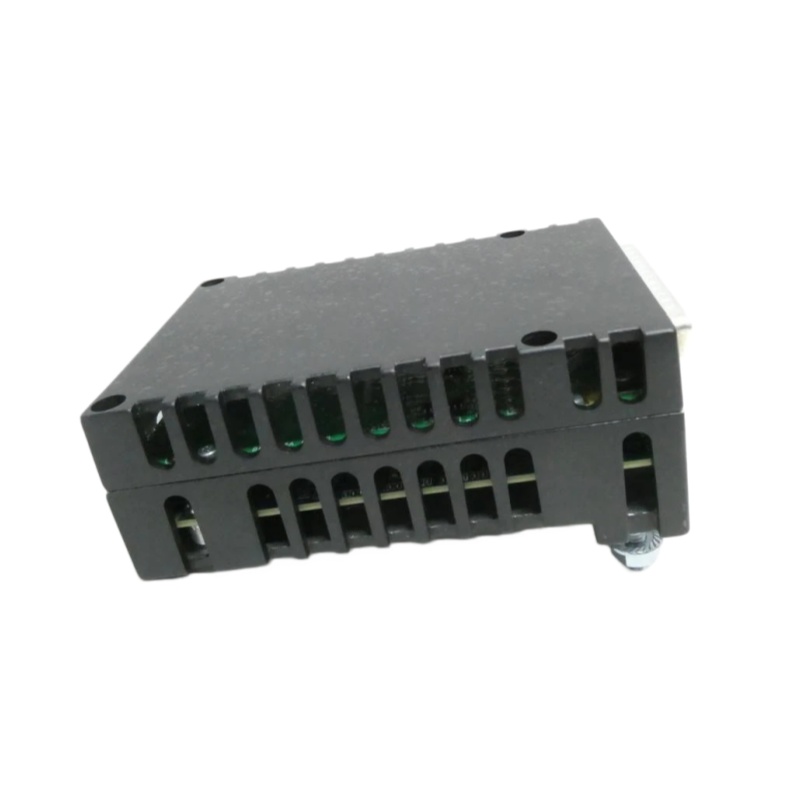

1. Product Overview
The IS220PDOAH1BC is a discrete output I/O pack module manufactured by General Electric (GE) for the Mark VIe control system. It is designed to connect the I/O Ethernet network with dedicated discrete output terminal boards, enabling signal transmission and control between controllers and field devices. As a core component of the GE Speedtronic Mark VIe gas turbine control system, this module belongs to the IS220 series of I/O modules.
The IS220PDOAH1BC can be used in conjunction with the IS230SNRLH2A (DIN rail relay output module assembly) and the IS200SRLYH2AAA (simplex relay output terminal board) to form a complete Mark VIe discrete output control assembly package.
2. Technical Parameters and Specifications
The sorted technical parameters of the product are listed in the table below:
|
Parameter Item
|
Technical Specification
|
|---|---|
|
Model
|
IS220PDOAH1BC
|
|
Series
|
GE Mark VIe Control System
|
|
Product Type
|
Discrete Output Module / Pack
|
|
Relay Channels
|
Supports up to 12 relays
|
|
Input Voltage
|
28VDC
|
|
Input Current
|
Maximum 0.18A
|
|
Operating Temperature
|
-40°C to +70°C
|
|
Humidity Range
|
5-95% RH (Relative Humidity)
|
|
Dimensions
|
Approx. 8.26cm × 4.19cm × 12.1cm
|
|
Weight
|
Approx. 300g
|
Interface Configuration
- Dual RJ45 Ethernet ports

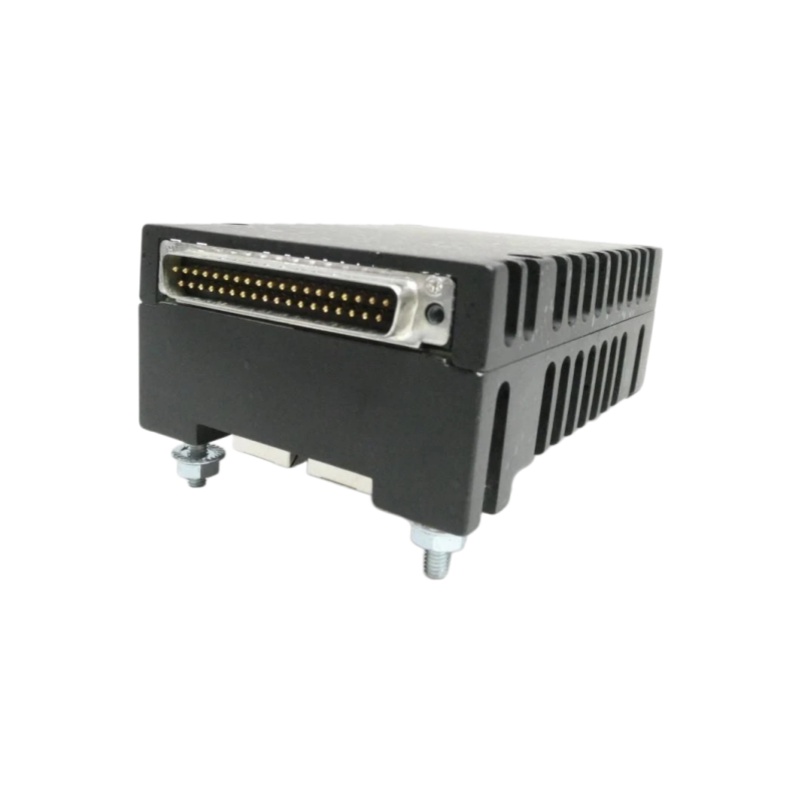

- DC-37 pin connector for output connection
- 3-pin power input interface
- Infrared serial port for local debugging
Matching Part Number: 3500/05-02-04-01-00-01
3. Product Features
3.1 Functional Features
- Signal Conversion: Converts controller logic signals into on/off output signals to drive external actuators including relays, valves, indicator lights and contactors.
- Relay Control: Capable of controlling up to 12 relays and receiving feedback signals from other terminal boards.
- Redundancy Support: Implements network redundancy via dual Ethernet interfaces to significantly improve system reliability.
- Diagnostic Capability: Built-in short-circuit protection, load detection and fault diagnosis functions for real-time system status monitoring and fault warning.
3.2 Hardware Characteristics
- High Integration Design: Consists of a processor board and an acquisition board, integrating control and data acquisition functions in a compact structure.
- Multiple Protection Mechanisms: Equipped with built-in overload protection, over-current protection and over-temperature protection to avoid equipment damage caused by abnormal operating conditions.

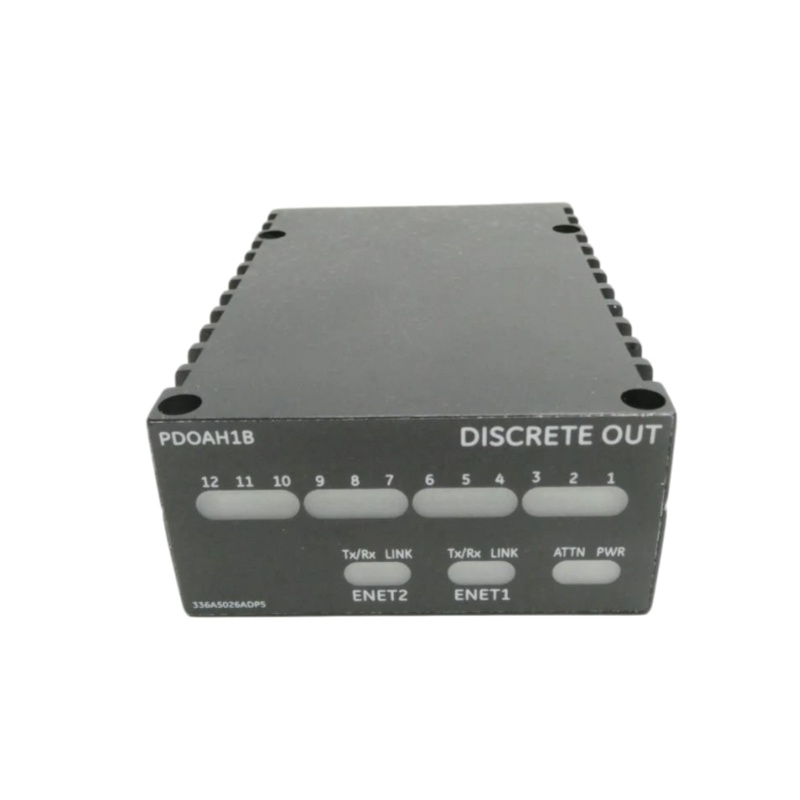

- LED Status Indication: Integrated LED indicator lights to realize real-time monitoring of module operating status.
- Industrial-Grade Components: Adopts high-reliability industrial-grade components to ensure stable operation in harsh industrial environments.
3.3 Competitive Advantages
- High operational reliability and low failure rate
- User-friendly interface for convenient troubleshooting and daily maintenance
- Flexible compatibility and seamless integration with existing Mark VIe systems
- High-speed response capability to meet real-time control requirements
4. Structure and Composition
Core Components
The IS220PDOAH1BC module is composed of two core parts:
- Processor Board: A universal processor board shared by all Mark VIe distributed I/O packs, responsible for core data processing and network communication.
- Acquisition Board: A dedicated board designed for discrete output functions, undertaking signal acquisition and output control tasks.
5. Application Fields
The IS220PDOAH1BC module is widely applied in multiple industrial scenarios, with specific applications as follows:
|
Application Field
|
Specific Applications
|
|---|---|
|
Thermal Power Generation
|
Control of steam turbines, boilers and other core power generation equipment
|
|
Gas Turbine Industry
|
Core component of Mark VIe speed control system for gas turbines
|
|
Oil and Gas Industry
|
Process control of field equipment such as valves and pumps
|
|
Heavy Industry
|
Automatic production lines and industrial process control systems
|
|
Chemical Industry
|
Monitoring and control of valves, pipelines, reactors and other chemical equipment
|
|
Manufacturing Industry
|
Industrial automation and intelligent machine control systems
|
6. Installation and Maintenance
6.1 Installation Requirements
Installation Method
- Adopt rack-mounted installation mode
- Fix the module firmly at the designated installation position
- Connect Ethernet cables to the dual RJ45 Ethernet ports
- Complete local equipment debugging via the infrared serial port
Precautions
- Ensure the power supply voltage complies with the standard specification (28VDC)
- Keep the ambient operating temperature within the range of -40°C to +70°C
- Take strict electrostatic protection measures to prevent damage to electronic components
- Confirm the power supply is completely disconnected before wiring operation
————————————————————————————————————-
