Lam Research 810-801302-001

Product Overview

The Lam Research 810-801302-001 is identified in industry parts listings as an MFIB Interlock Board for Lam Research semiconductor manufacturing equipment. The part number is specifically listed as “MFIB INTERLOCK BOARD 810-801302-001.”

As an interlock-related control board, it is associated with equipment protection and system-level control logic. Interlock circuits are important in semiconductor processing equipment because they help ensure that specific operating conditions are satisfied before selected machine functions are permitted.

For fabs maintaining Lam Research systems, the 810-801302-001 can therefore serve as a specialized replacement board when the original assembly requires troubleshooting or replacement.

Identification Details

Unlike general-purpose PLC modules, this board is a dedicated semiconductor-equipment component. Available information supports the following identification:

• Brand: Lam Research
• Part Number: 810-801302-001
• Board Type: MFIB Interlock Board
• Component Category: Control / Interlock PCB
• Application: Lam Research semiconductor equipment
• Primary Role: Equipment interlock and control interface
• Typical Use: Maintenance, repair, refurbishment, and spare-parts inventory

The exact machine model, electrical interfaces, firmware configuration, and revision should be confirmed against the equipment documentation before installation.

Functional Characteristics

The 810-801302-001 is designed for a specialized control environment where interlock functions are important. Its potential advantages include:

Equipment Protection
Interlock circuitry helps prevent selected operations from proceeding when required equipment conditions are not satisfied.

System-Level Coordination
The board can participate in coordination between different equipment subsystems and control circuits.

Dedicated OEM Design
Its Lam Research part-number configuration makes it more suitable for compatible OEM equipment than a generic replacement PCB.

Compact Control Architecture
A dedicated interlock board allows safety and equipment-status logic to be integrated into the machine’s existing electronic architecture.

Maintenance Value
Keeping a spare board available can shorten troubleshooting and equipment restoration time.

Board Structure

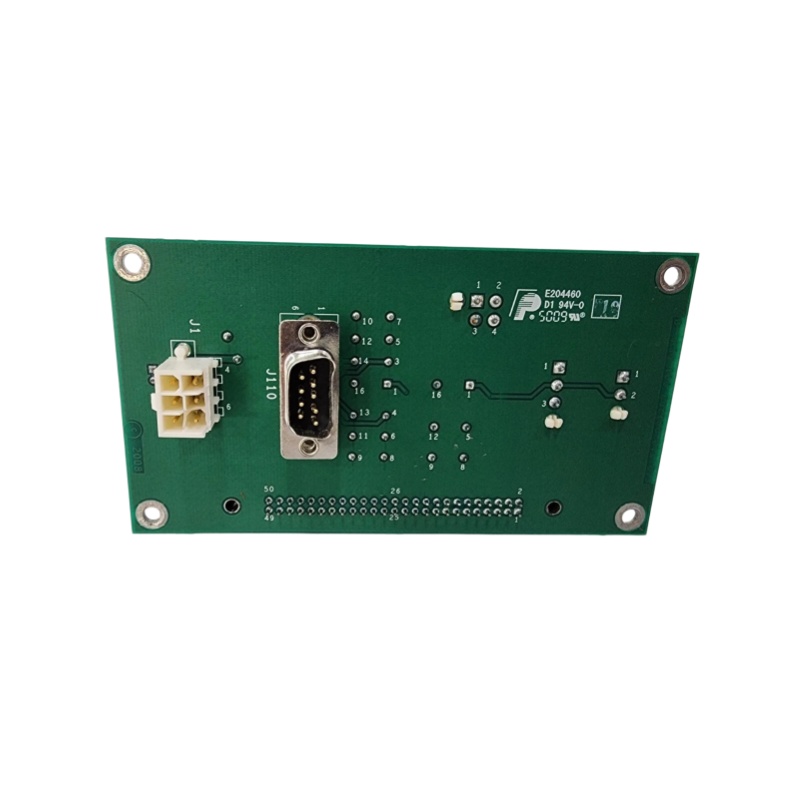

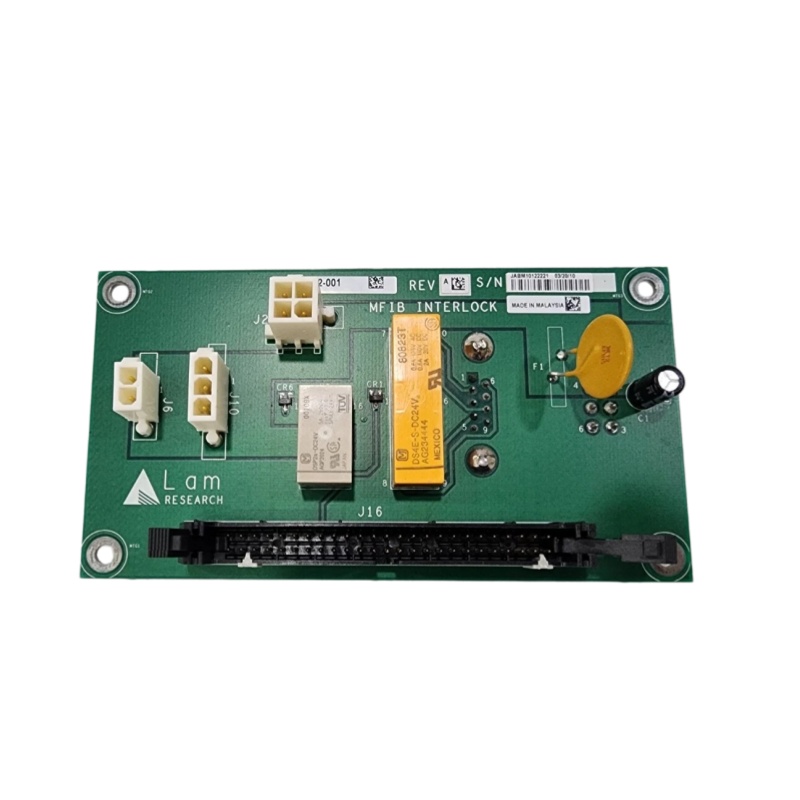

The MFIB interlock board is an electronic PCB assembly containing control circuitry, signal interfaces, connectors, and supporting electronic components. The exact circuit layout and component population may vary according to the board revision and the equipment configuration.

Because this type of board is installed inside semiconductor processing equipment, protection against electrostatic discharge and contamination is especially important. Technicians should also avoid unnecessary handling of connector contacts and exposed components.

When purchasing a replacement, the complete 810-801302-001 part number should be matched rather than relying only on the general description “MFIB Interlock Board.”

Typical Applications

The Lam Research 810-801302-001 can be relevant to several semiconductor-equipment maintenance activities, including:

• Wafer processing equipment
• Semiconductor fabrication systems
• Equipment interlock circuits
• Process-system control
• Lam Research equipment refurbishment
• OEM spare-parts replacement
• Preventive maintenance programs
• Factory equipment troubleshooting

Interlock boards are particularly important in systems where process operations need to be coordinated with equipment status, access conditions, subsystem readiness, or other machine-level requirements.

Installation and Maintenance

Before replacing the 810-801302-001, technicians should verify the target equipment model, board revision, connector configuration, and existing installation.

Always follow the equipment manufacturer’s shutdown and electrical-isolation procedures. Use suitable ESD protection when removing or installing the PCB.

During inspection, check the board for visible contamination, corrosion, damaged connectors, burnt components, cracked solder joints, or mechanical damage. Connector seating should also be verified carefully after installation.

Following replacement, perform the appropriate equipment diagnostics and interlock checks before returning the machine to production. Do not bypass or permanently defeat interlock functions during troubleshooting.

Spare-Part Selection

The 810-801302-001 is a specialized Lam Research component, so accurate part-number identification is essential. Industry listings specifically associate this number with an MFIB Interlock Board, providing a useful reference when comparing replacement inventory.

For used or refurbished boards, buyers should confirm the condition, revision, testing status, and compatibility with their equipment before purchase.

We supply Lam Research 810-801302-001 MFIB Interlock Boards for semiconductor equipment maintenance and replacement applications. Availability and condition can be confirmed according to your specific requirements.
