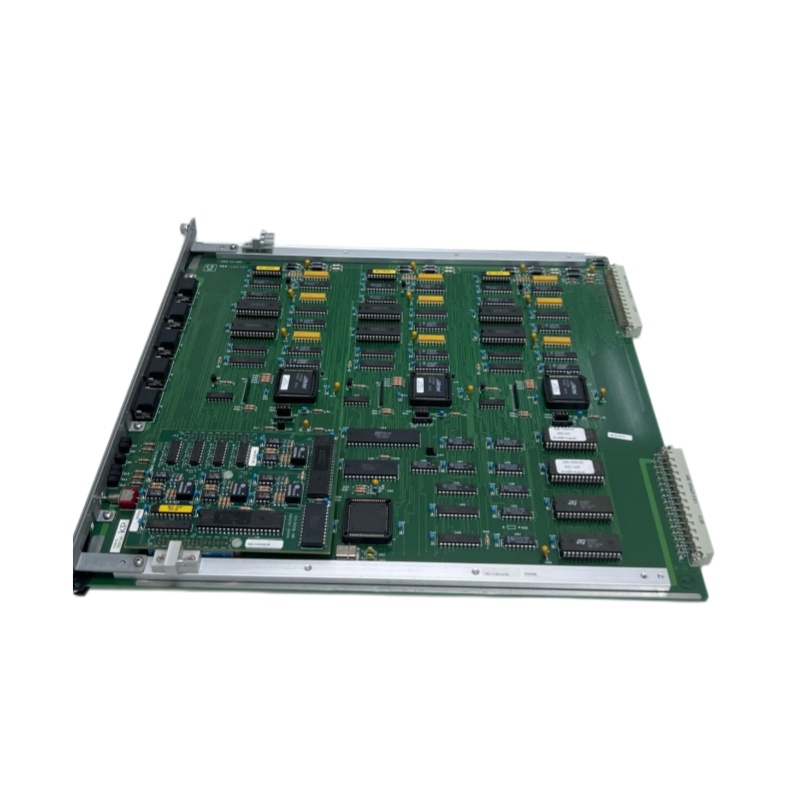

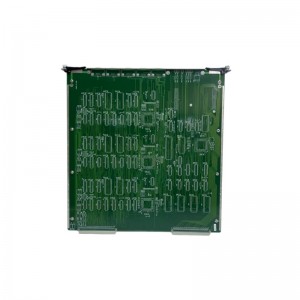

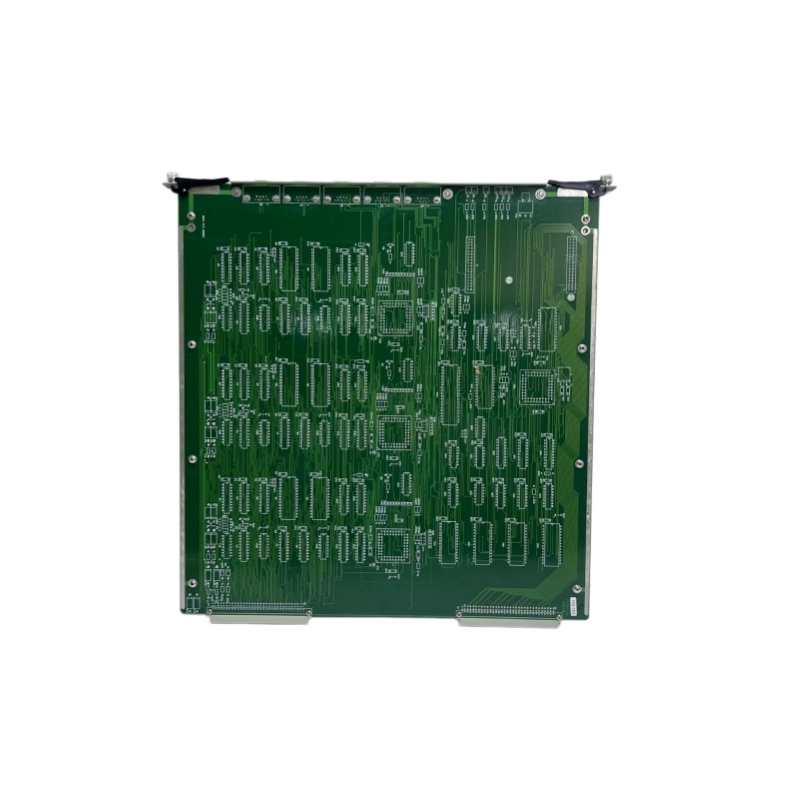

ABB MSR04XI MODULE 001-1103-04-00 Serial Communication Module
ABB MSR04XI MODULE 001-1103-04-00
1. Product Overview
2. Technical Specifications
2.1 Core Communication Parameters
|
Parameter Item
|
Technical Specification
|
|---|---|
|
Communication Interface
|
RS232-C Serial Communication
|
|
Communication Ports
|
4 RS232 communication ports (Port 0-3) + 1 diagnostic port
|
|
Baud Rate
|
9600 or 19200 baud (Port 2 and Port 3 must adopt the same baud rate)
|
|
Communication Mode
|
Full-duplex Mode
|
|
Isolation Voltage
|
1kV
|
|
Data Rate
|
Maximum 19200 baud; maximum data transmission rate of 10/100 Mbps
|
|
Power Consumption
|
3.5W
|
|
Power Supply Voltage
|
12-48V DC (supplied by the dual redundant SC300E power supply unit)
|
2.2 Environmental Specifications
|
Item
|
Parameter
|
|---|---|
|
Operating Temperature
|
+5°C to +60°C
|
|
Storage Temperature
|
-25°C to +70°C
|
|
Humidity
|
5% to 95% non-condensing (at ambient temperature <40°C)
|
|
Certification Standard
|
IEC 1131-Part 2 1994 (EMC/RFI immunity, vibration and shock tests)
|
2.3 Physical Specifications
|
Item
|
Parameter
|
|---|---|
|
Height
|
9U (400mm / 15.75 inches)
|
|
Width
|
397mm (15.63 inches)
|
|
Depth
|
28mm (1.1 inches)
|
|
Weight
|
1.3kg
|
3. Product Features
- High-Reliability Design: Adopts triple redundant circuits and voting algorithms with single fault tolerance capability, ensuring stable and continuous system operation.
- Hot-Swap Support: Features a “single-slot hot-repair” design, allowing module replacement without system shutdown to improve maintenance efficiency and system uptime.
- Front Panel Status Indication: Equipped with Tx (Transmit), Rx (Receive), Health (status) and three On Line indicator lights, enabling real-time visual monitoring of module operating status.
- Mechanical Coding Protection: Fitted with two mechanical coding blocks to prevent incorrect slot insertion and avoid equipment connection failures caused by misinstallation.
- Optical Isolation Protection: All communication ports are isolated from the module internal circuits via optical isolators, effectively enhancing anti-interference performance in complex industrial environments.
- Flexible Configuration: Supports TCP/IP and Modbus TCP protocols, perfectly adaptable to real-time control systems and industrial monitoring scenarios.
- Compact Structure: The streamlined and compact module design simplifies on-site installation, debugging and daily maintenance work.
4. Structure and Composition
4.1 Main Hardware Components
- Printed Circuit Board (PCB): A 9U-height main PCB integrated with an integral front panel and front & rear connectors.
- Daughter Board: A pluggable daughter board that carries all RS232 interface circuits to realize serial communication functions.
-
Connectors:
Mechanical Coding Blocks: Two coding blocks with positioning pins, precisely matched with the corresponding rack holes for anti-misinstallation protection.
- J1 Backplane Connector: Used for electrical connection between the module and the equipment chassis
- J2 Field Connector: Used for connecting on-site industrial devices
4.2 Configuration Links (9 in Total)
- LK1: 3 sets of 3-pin links, located approximately 80mm from the top of the module; non-user-configurable.
- LK2: 3 sets of 8-pin links, located approximately 210mm from the top of the module; dedicated for module ID configuration and must be installed all the time.
- LK3: Used for operating mode configuration of the module.
- LK4: Used for setting the clock speed of the daughter board.
4.3 Data Transmission Path
4.4 Power Supply System
5. Application Fields
- Process Control: Temperature measurement and automatic control for industrial processes such as oil & gas production, chemical processing, and food manufacturing.
- HVAC Systems: Real-time temperature monitoring and data collection for heating, ventilation, air conditioning and refrigeration systems.
- Engine Control: Precision temperature measurement and status monitoring for gas engines and diesel engines.
- Industrial Automation: Data communication, signal transmission and data acquisition for core automation equipment including PLCs, inverters and sensors.
- Power Industry: DCS monitoring systems and power distribution system data transmission in power plants.
- Other Industrial Scenarios: Metallurgy, papermaking, chemical industry and other heavy industrial production and monitoring fields.
6. Installation Instructions
6.1 Installation Position Requirements
6.2 Installation Steps
- Verify that the mechanical coding blocks of the module are completely matched with the rack positioning holes.
- Vertically insert the module into the specified slot along the rack guide rails steadily.
- Ensure the module is fully seated and reliably connected to the J1 backplane connector.
- Connect the J2 field connector to the matched RS232 on-site equipment.
6.3 Wiring Requirements
- Use shielded twisted-pair cables for all RS232 device connection wiring to reduce electromagnetic interference.
- Ensure reliable and complete grounding of the module and equipment to suppress external signal interference.
- Check all wiring connections carefully to ensure firm and stable connection without looseness or virtual connection.
