Schneider AEG OUTPUT B824 Discrete Output Module

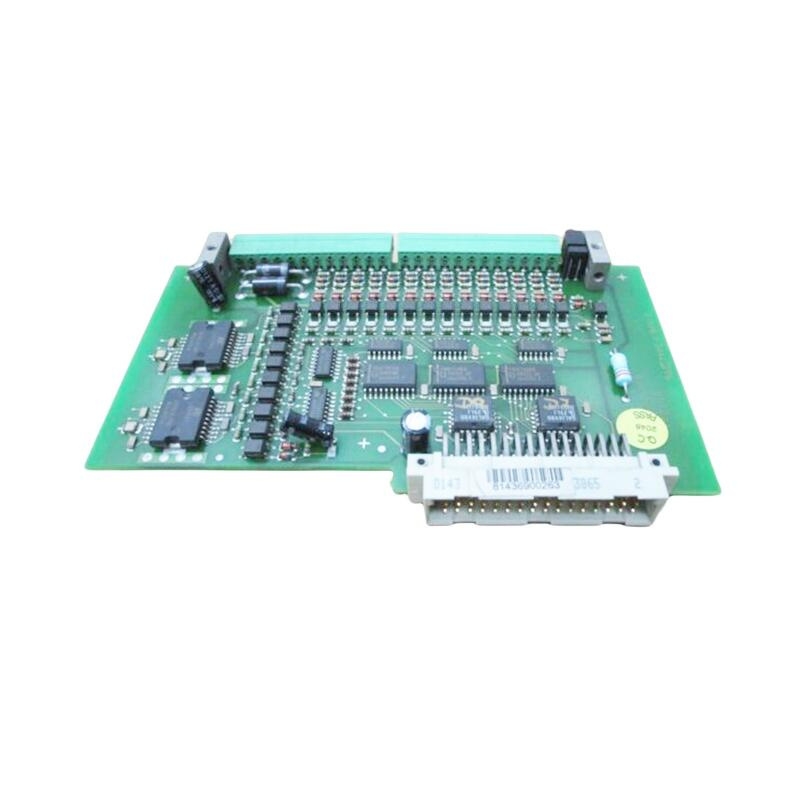

Schneider AEG OUTPUT B824
1. Overview
Schneider AEG OUTPUT B824 is positioned as a high-reliability discrete output module, compatible with Schneider Modicon PLC series (e.g., TSX, Quantum) and third-party control systems.
Electrical characteristics: 24 V DC power supply, 24 V DC output voltage, maximum output current of 0.5 A per channel, with 16 independently programmable channels.
Certifications: Compliant with international safety standards including IEC 60947-4-1, CE and UL, and has passed multiple industrial certifications.
2. Key Technical Specifications
| Parameter | Description |
|---|---|
| Number of Channels | 16 channels (independent per channel) |
| Supply Voltage | 24 V DC |
| Rated Output Current | 0.5 A per channel |
| Maximum Switching Power | 12 W (for all 16 channels) |
| Response Time | ≤ 5 ms (typical) |
| Operating Temperature | -25 °C – +70 °C |
| Protection Grade | IP20 (indoor installation) |
| Dimensions | 120 mm × 100 mm × 70 mm (module size) |
| Installation Method | DIN-rail side mounting or panel mounting, with matching screw kit included |
3. Product Features
- High reliability: Adopts silver alloy contacts for corrosion resistance and long service life.
- Fast response: Switching time within 5 ms meets real-time control requirements.
- Modular design: Faulty channels can be replaced individually for convenient maintenance.
- Strong compatibility: Compatible with multiple Modicon PLC series such as Modicon 140, TSX and Quantum.
- Diagnostic function: Built-in self-test circuit enables real-time fault status reporting in PLC.
4. Structure & Components
- Housing: High-strength plastic or metal housing provides reliable mechanical protection.
- Terminal block: Independent I/O terminal blocks for each channel with clear markings.
- Internal relays: 16 independent electromagnetic relays with bipolar structure.
- Diagnostic circuit: Includes short-circuit, open-circuit detection and overload protection.
- Heat sink: Metal heat sink facilitates heat dissipation to ensure stable long-term operation.
5. Typical Application Fields
- Industrial automation: Discrete control of production lines, packaging machinery, assembly robots, etc.
- Process control: Start-stop control of valves and pump stations in chemical, petroleum, metallurgical and other industries.
- Building automation: On-off control of lighting, air conditioning and access control systems.
- Energy management: Relay protection and monitoring in power plants and distribution networks.
6. Installation & Maintenance Guidelines
Installation
- Adopt DIN-rail side mounting or panel mounting, and ensure the fixing screws are tightened securely.
- Confirm the supply voltage is 24 V DC before wiring to avoid incorrect connection of high voltage.
- Keep ventilation around the module to prevent overheating.
Wiring
- Use the standard terminal block screws to ensure each wire is connected firmly without loosening.
- For high-current loads, parallel fuses or current-limiting resistors at the output terminal.
Commissioning
- Conduct channel mapping in PLC software and check the status indicator of each channel.
- Utilize the module’s built-in diagnostic function to confirm no short-circuit, open-circuit or overload alarms.
Daily Maintenance
- Regularly check the tightness of terminal blocks to prevent loosening caused by vibration.
- Remove dust and corrosives on the module surface to keep the heat sink well-ventilated.
- Replace the corresponding relay or the entire module in time if contact abnormalities (abnormal clicking sound, slow response) are found.
————————————————————————————————————-
