ABB PFCL201C10KN Industrial Grade

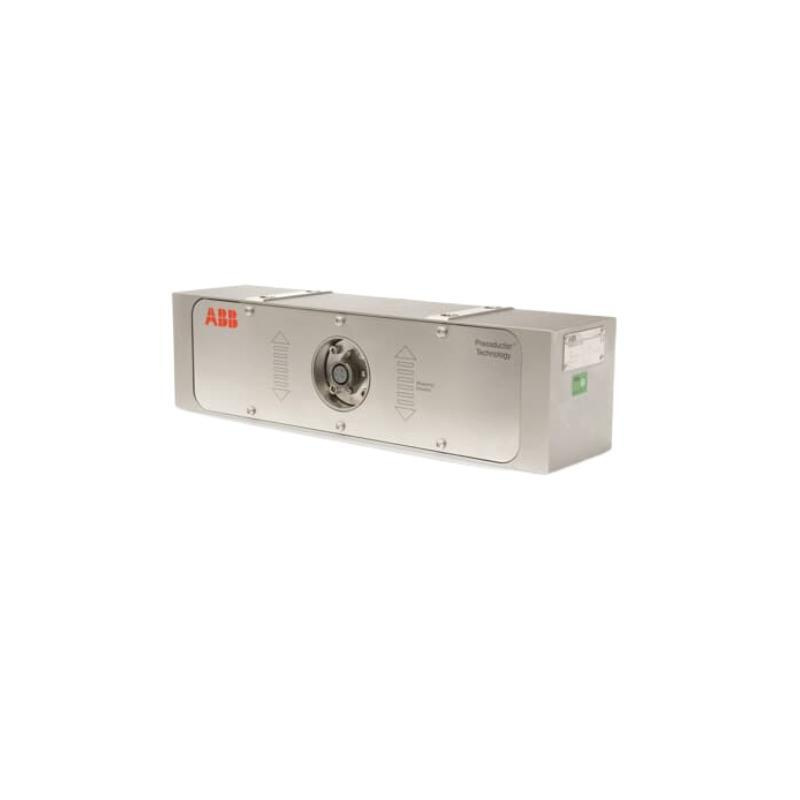

ABB PFCL201C10KN
1. Overview
TheABB PFCL201C10KN is a high-precision industrial load cell with a rated measuring range of 10KN, suitable for force, tension and weight monitoring in various industrial automation scenarios. As a core measuring component, it converts mechanical load changes into standard electrical signals, providing accurate and reliable measurement data for upper control systems, PLCs, DCS platforms and monitoring equipment.
This tensiometer is widely used in material handling, lifting equipment, cranes, conveyor systems, tensioning mechanisms and industrial weighing systems. It supports real-time load detection, overload alarm, tension control and process monitoring, helping industrial equipment maintain stable operation and avoid safety risks caused by overloading or abnormal tension.
With industrial-grade structural design and high-precision sensing technology, the PFCL201C10KN offers good long-term stability, strong anti-interference capability and reliable performance under harsh working conditions. It is suitable for applications requiring continuous force measurement, dynamic tension feedback and high-accuracy weight monitoring.
2. Technical Specifications
| Parameter Item | Technical Specifications |
|---|---|
| Model Number | ABB PFCL201C10KN |
| Product Type | Industrial Load Cell / Tensiometer |
| Measuring Range | 10KN Rated Load |
| Application | Force, tension and weight measurement |
| Output Signal | Standard analog signal for industrial measurement systems |
| Accuracy | High-precision industrial measurement grade |
| Working Principle | Strain gauge / force sensing principle |
| Power Supply | Industrial sensor power supply design |
| Installation Method | Mechanical mounting for industrial equipment integration |
| Compatibility | Suitable for PLC, DCS and industrial monitoring systems |
| Operating Temperature | Industrial temperature range |
| Protection Grade | Industrial-grade dust-proof and moisture-proof design |
| Typical Applications | Lifting, material handling, tensioning, weighing, conveyor systems |
3. Product Features
High-Precision Force Measurement: The PFCL201C10KN provides accurate 10KN load detection, supporting reliable weight, tension and force monitoring in industrial automation processes.
Stable Tension Monitoring Performance: Designed for continuous tension measurement, it delivers consistent signal output under dynamic load conditions, helping control systems maintain stable tension feedback.
Industrial-Grade Reliability: Built for harsh industrial environments, the load cell offers strong resistance to mechanical vibration, impact, dust and moisture, ensuring long-term stable operation.
Wide Application Compatibility: Suitable for cranes, hoists, conveyors, tensioning devices, lifting equipment and industrial weighing systems, making it a versatile measurement component.
Easy System Integration: The sensor can be connected to standard industrial control systems, PLCs, DCS platforms and monitoring units, supporting real-time data acquisition and automatic control linkage.
Overload Safety Protection: Enables effective load monitoring and overload alarm functions, reducing equipment damage and safety risks caused by over-limit tension or weight.
4. Structure and Composition

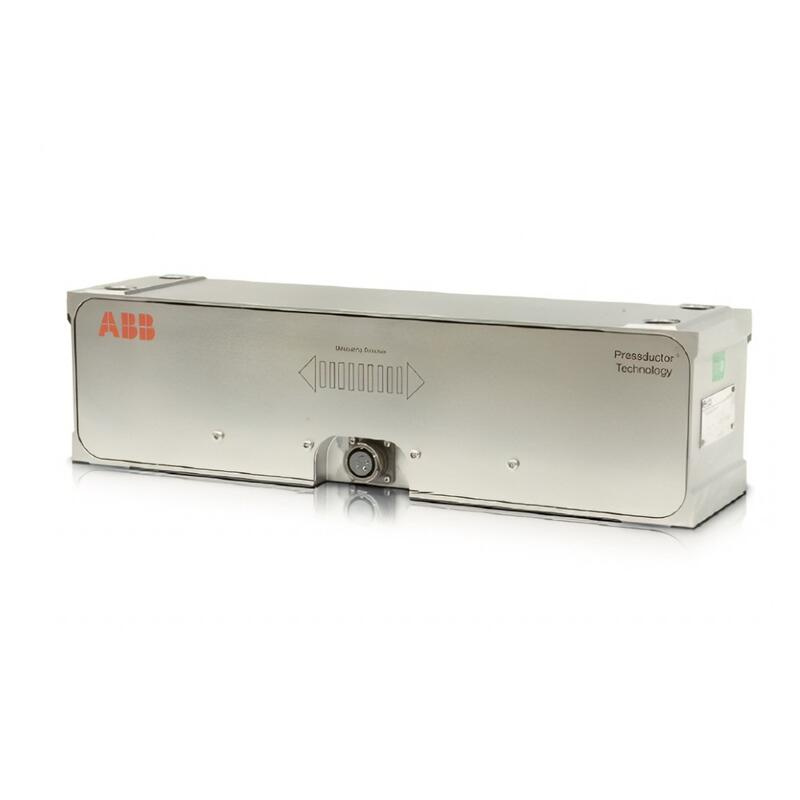

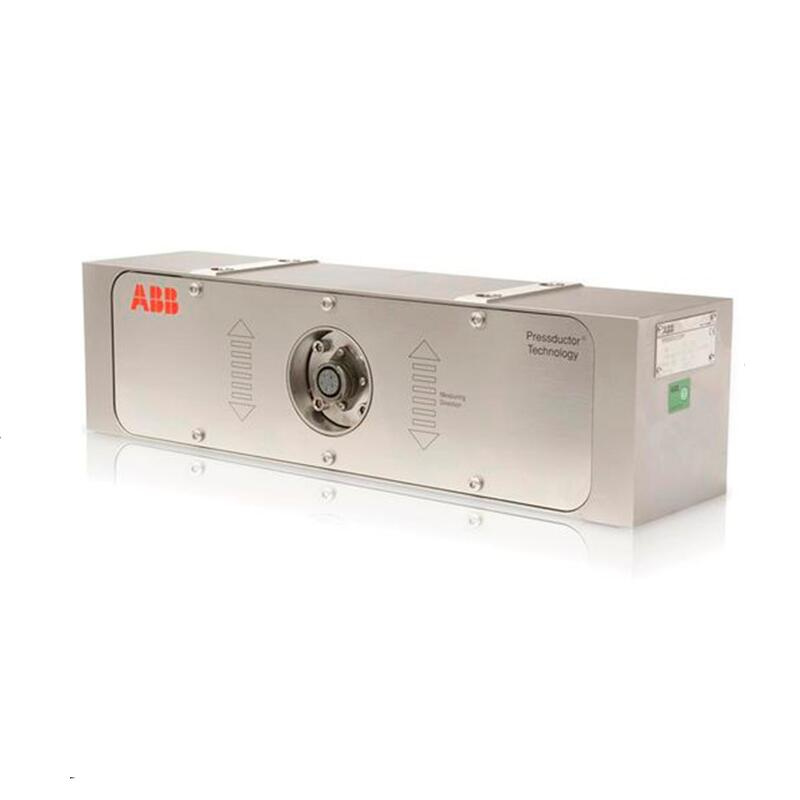

The ABB PFCL201C10KN load cell adopts a compact and robust mechanical sensing structure, integrating precision strain gauge elements, force-sensitive components, signal conditioning circuits and industrial housing. When an external load or tension is applied, the internal sensing element converts mechanical deformation into a measurable electrical signal, which is then processed and transmitted to the control system.
The sensor housing is designed with industrial protection in mind, resisting dust, moisture and mechanical impact. The mounting interface is suitable for direct installation on lifting equipment, conveyor systems, tensioning mechanisms and industrial weighing frames. Its solid structure ensures stable measurement performance even under repeated load changes and long-term operation.
5. Application Fields
Material Handling Equipment: Used for load monitoring and tension control in conveyor systems, hoists and material transfer equipment.
Lifting and Crane Systems: Applied in cranes, lifting mechanisms and hoisting equipment to detect load weight and prevent overloading.
Tensioning and Winding Systems: Suitable for tension measurement in winding machines, belt conveyors, wire drawing equipment and web handling systems.
Industrial Weighing Systems: Supports weight monitoring in silos, tanks, conveyor scales and process weighing applications.
Automation Control Systems: Provides real-time force feedback for PLC, DCS and SCADA systems, enabling closed-loop control and safety interlock functions.
Heavy Industry and Logistics: Widely used in ports, warehouses, manufacturing plants and heavy industrial production lines where reliable load measurement is required.
————————————————————————————————————-
