PROSOFT MVI94-GSC-E Serial Communication Module

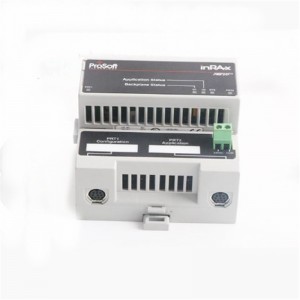

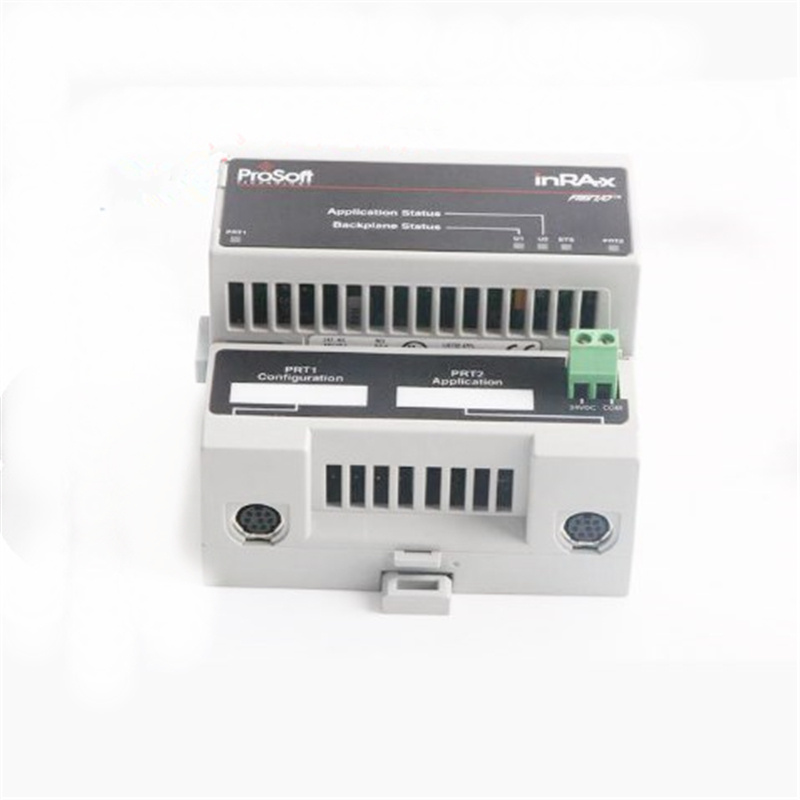

PROSOFT MVI94-GSC-E
1. Overview and Positioning
The MVI94-GSC-E is part of ProSoft’s GSC (Generic Serial Communication) family. It is a general-purpose serial communication interface that supports standard ASCII protocols, enabling connectivity with a wide range of industrial devices such as PLCs, sensors, actuators, robots, and more.
___________________________________________________________________________________________________________________________
Core Functions:
- Facilitates data transfer between Allen‑Bradley PLCs and external devices
- Supports multiple serial protocols (e.g., Modbus, DNP3, SLC)
Typical Applications:
Ideal for integrating devices from different manufacturers or with different protocols into an Allen‑Bradley system
___________________________________________________________________________________________________________________________
2. Key Specifications
Communication Protocol:
- Supports ASCII serial communication
- Some models (e.g., GSCXT) can support binary protocols via firmware upgrade
Connection:
- Typically connects via RS‑232 / RS‑485 interfaces (depending on the specific module version)
Control Method:
- Data read/write using DINT (double word) orSINT (single word) data types
- Or via Message instructions
Power:
- Operating voltage range: typically 12V – 24V DC
___________________________________________________________________________________________________________________________
3. Product Features
High Reliability:
- Industrial‑grade design suitable for harsh factory floor environments
Multi-Protocol Support:
- Native ASCII communication
- Some models supportModbus Master/Slave for direct communication with Modbus devices
Flexible Data Handling:
- Direct data mapping to PLC memory
- Custom message frames for implementing complex communication logic
Strong Compatibility:
- Seamless integration with multiple Allen‑Bradley platforms, including ControlLogix, CompactLogix, MicroLogix
___________________________________________________________________________________________________________________________
4. Structure and Components
The module features a single‑slot design, plugging directly into the PLC backplane.
Hardware:
- Serial communication interface circuitry (RS‑232/RS‑485)
- Power management module
- Microprocessor
Software:
- Internal firmware for ASCII protocol parsing
- Configuration via ProSoft’s Discovery Service tool (for baud rate, parity, data bits, etc.)
__________________________________________________________________________________________________________________________________
5. Application Areas
- Process Control: Connect field instruments (pressure gauges, flow meters, etc.) for data acquisition
- Robot Integration: Communicate with industrial robot controllers for coordinated operation
- Energy Management: Interface with variable frequency drives (VFDs), PLCs, and host systems for energy monitoring and control
- General Serial Communication: Serve as a bridge between Allen‑Bradley PLCs and various third‑party devices
___________________________________________________________________________________________________________________________
6. Installation and Maintenance
Installation:
- Insert the module into an available slot on the Allen‑Bradley PLC backplane
- Ensure proper power supply (12V–24V DC)
- Connect external serial cables (RS‑232/RS‑485)
___________________________________________________________________________________________________________________________
Configuration:
- Use ProSoft’s Discovery Service software to set:
- Baud rate
- Parity
- Data bits
- Other communication parameters
___________________________________________________________________________________________________________________________
Maintenance:
- Periodically check cable connections and power status
- Industrial‑grade design minimizes the need for frequent maintenance
————————————————————————————————————-
