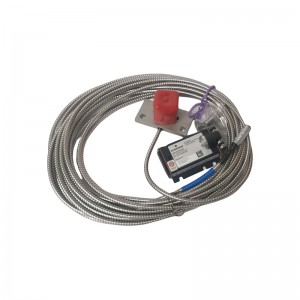

EMERSON PR6426/010-110+C0N021/916-240 Functional Module
EMERSON PR6426/010-110+C0N021/916-240
Product Overview
Technical Specifications
- Module Model: PR6426/010-110
- Preamplifier Model: C0N021/916-240 (EPRO preamplifier, Germany)
- Main Electrical Characteristics: Compatible with Emerson DeltaV/DeltaV-Logic-Solver series I/O cards; supports 12-bit digital I/O; voltage/current ranges comply with IEC standards (refer to the product manual for specific values).
- Mechanical Dimensions: Standard 19-inch rack size with a plug-in card slot design, facilitating on-site replacement.
Product Features
- Modular Design: The module and preamplifier are separated, enabling easy maintenance and upgrades.
- High Reliability: Adopts industrial-grade components, featuring anti-interference and high-temperature resistance, suitable for harsh on-site environments.
- Strong Compatibility: Can be directly inserted into platforms such as Emerson DeltaV and ControlEdge without additional adaptation.
- Quick Diagnosis: The preamplifier is equipped with a self-test function, allowing simple fault location.
Structure and Composition
- Core Module (PR6426/010-110): Includes a CPU processing unit, analog/digital I/O interfaces, and a communication chip.

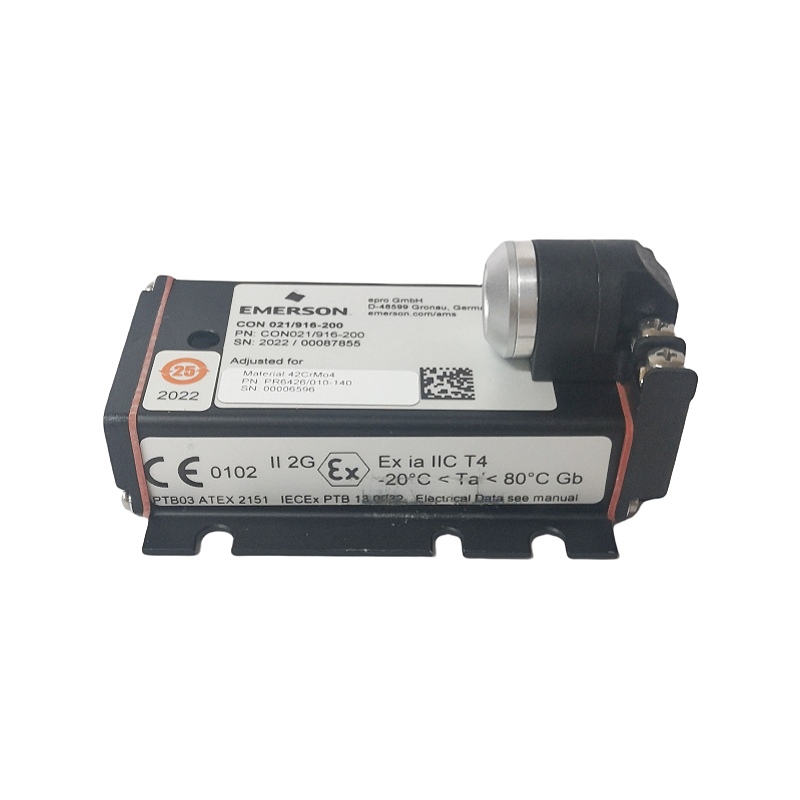

- Preamplifier (C0N021/916-240): Provides cable access, signal conditioning, shielding, and protection.
- Supporting Accessories: Card slot buckles, terminal blocks, mounting screws, and grounding wires.
Application Fields
- Petroleum chemical industry, oil refining, and natural gas processing
- Heavy industries such as electric power, iron and steel, and papermaking
- Process control systems (DCS, PLC)
- Mechanical equipment monitoring and automated production lines
Installation and Maintenance
- Installation: Insert the module into an empty slot of the standard 19-inch rack and fix it with screws; connect the preamplifier to on-site wiring via the corresponding terminal blocks.
- Wiring: Follow IEC/UL standards to separate signal wires from power wires; use shielded cables to reduce electromagnetic interference.
- Commissioning: Perform online self-tests through Emerson control software to verify I/O status; the preamplifier’s self-test indicator light enables quick fault location.
- Maintenance: Both the module and preamplifier adopt a hot-swappable design, allowing direct replacement in case of faults; it is recommended to conduct on-site inspections every 12 months, focusing on the tightness of wiring connections and the integrity of protective covers.
————————————————————————————————————-
