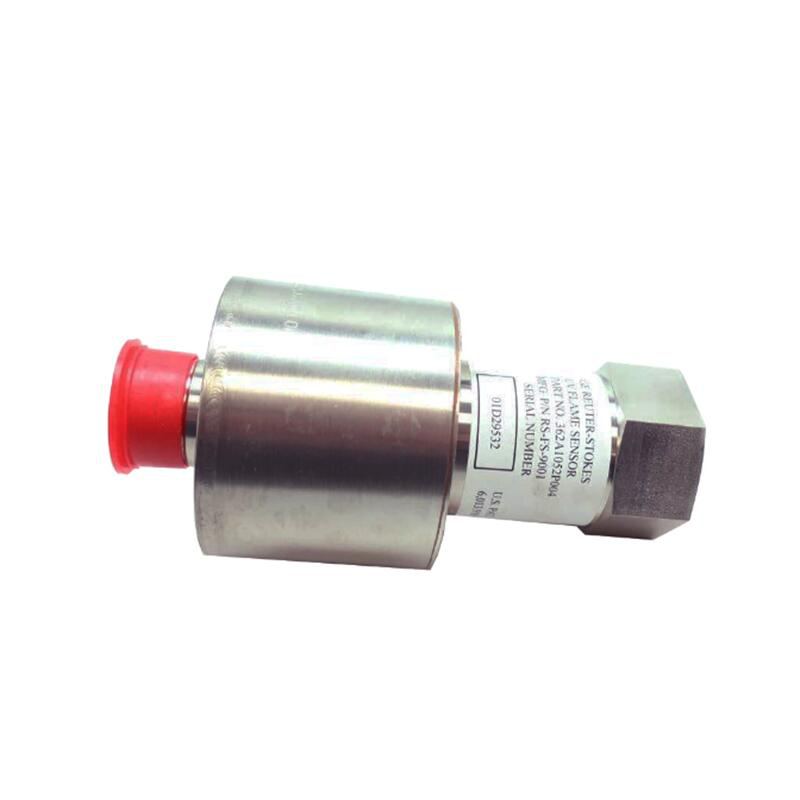

GE RS-FS-9001 362A1052P004

I. Overview

II. Parameters

• Model: RS-FS-9001 362A1052P004
• Brand: GE (General Electric)
• Detection Type: Ultraviolet (UV) flame detection
• Output Signal: 4-20mA current loop
• Supply Voltage: 24V DC (±10%)
• Response Time: <50ms (typical)
• Interface: 3/4 inch NPT stainless steel threaded interface
• Weight: Approximately 3-5 kg (including mounting accessories)
• Certifications: ETL, ATEX, IECEx, Class I Division 2
• Operating Temperature Range: -20℃ to +85℃
• Protection Rating: IP66
• Connection Method: Cable connection
• Structure: Modular design for easy installation and maintenance
• Material: High-temperature and corrosion-resistant materials
• Output Signals: Normally open/normally closed contacts, 4-20mA current signal, etc.

III. Product Features

• High Sensitivity: Can quickly and accurately detect flames, enhancing system safety.
• Strong Anti-Interference Ability: Has good anti-interference performance, reducing false alarms.
• High-Temperature Resistance: Made of high-temperature-resistant materials, ensuring stable operation in high-temperature environments.
• Strong Anti-Interference Capability: Resists external factors such as electromagnetic interference and light interference.
• Easy Installation and Maintenance: Reasonable design facilitates installation, daily maintenance, and repairs.
• Communication Interface: May be equipped with standard communication interfaces for easy integration and communication with other devices or systems.
• Fast Response Time: Millisecond-level response time ensures timely flame detection.
• Durability: Long-life design with low maintenance costs.
• Safety: Complies with various safety standards, such as North American Class I Division 2, Zone 2, ATEX, and IECEx.
• Self-Diagnostic Function: Facilitates maintenance and troubleshooting.

IV. Structure and Composition

• Sensor: Uses a silicon carbide (SiC) ultraviolet (UV) sensor for high-speed, high-sensitivity detection of flames or high-temperature gases.
• Housing: Welded structure with a sealed design to prevent disassembly, ensuring long-term reliability.
• Interface: 3/4 inch NPT stainless steel threaded interface for easy installation and connection.
• Modular Design: Facilitates installation and maintenance, adapting to different environmental needs.
• Material: High-temperature and corrosion-resistant materials ensure stable operation in harsh environments.

V. Application Fields

• Energy Industry: Flame monitoring and safety protection for gas turbines and steam turbines.
• Petrochemical Industry: High-temperature reaction furnaces and flare systems in refineries and chemical plants.
• Iron and Steel Metallurgy: Flame detection for high-temperature equipment such as blast furnaces and converters.
• Industrial Safety: Any high-risk scenarios requiring real-time flame monitoring.
• Industrial Facilities: Flame monitoring for thermal equipment such as industrial boilers and heating furnaces.
• Commercial Buildings: Data centers, healthcare facilities, residential buildings, etc.
• Other Industrial Applications: Places requiring flame detection such as ovens and dryers.
• Hazardous Areas: Suitable for hazardous areas meeting standards such as North American Class I Division 2, Zone 2, ATEX, and IECEx.

VI. Installation and Maintenance

• Cooling Methods:
  • Water Cooling: Requires an external water cooling coil with a flow rate ≥1.0 GPM (3.8 LPM) and water temperature 10°C-57°C.
  • Air Cooling: Forced air velocity ≥1.5 m/s (ambient temperature ≤60°C) or pressurized air (minimum 25 psi).
• Wiring Requirements:
  • Cable: Shielded twisted pair (18 AWG) with a maximum length of 1000 meters.
  • Polarity: White is positive, black is negative/signal ground; reverse connection will not damage the equipment.
  • Grounding: The shield layer must be grounded at a single point to ensure anti-interference.
• Maintenance:
  • Cleaning: Regularly clean the sensor surface to prevent dust and dirt from affecting detection performance.
  • Inspection: Regularly check connecting wires and interfaces to ensure no looseness or damage.
  • Calibration: Perform calibration as needed to ensure detection accuracy.
  • Self-Diagnostic Function: The device has a self-diagnostic function that can automatically detect faults and provide alarm information.

————————————————————————————————————-
