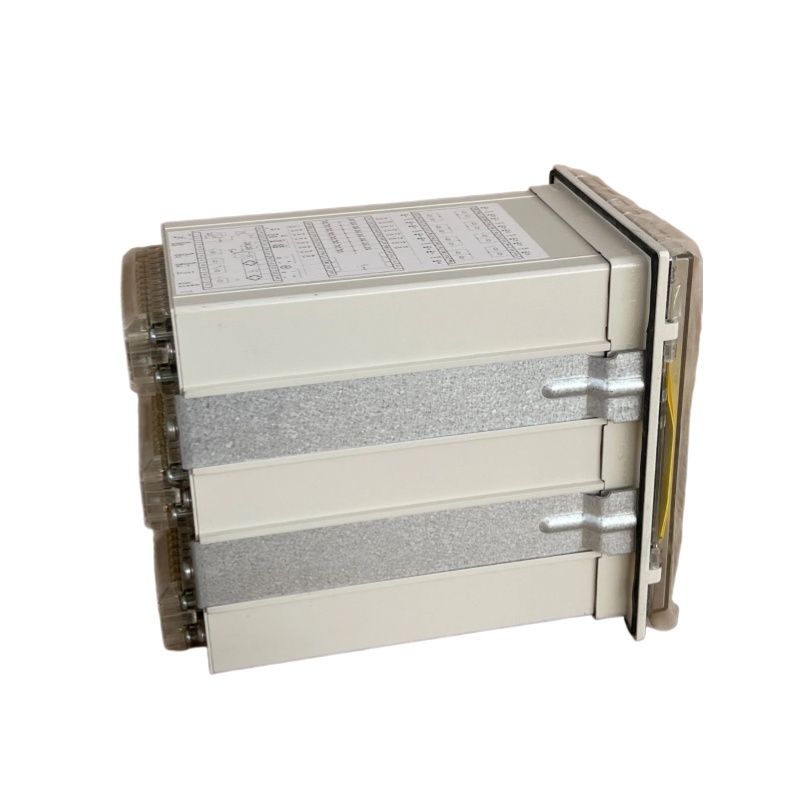

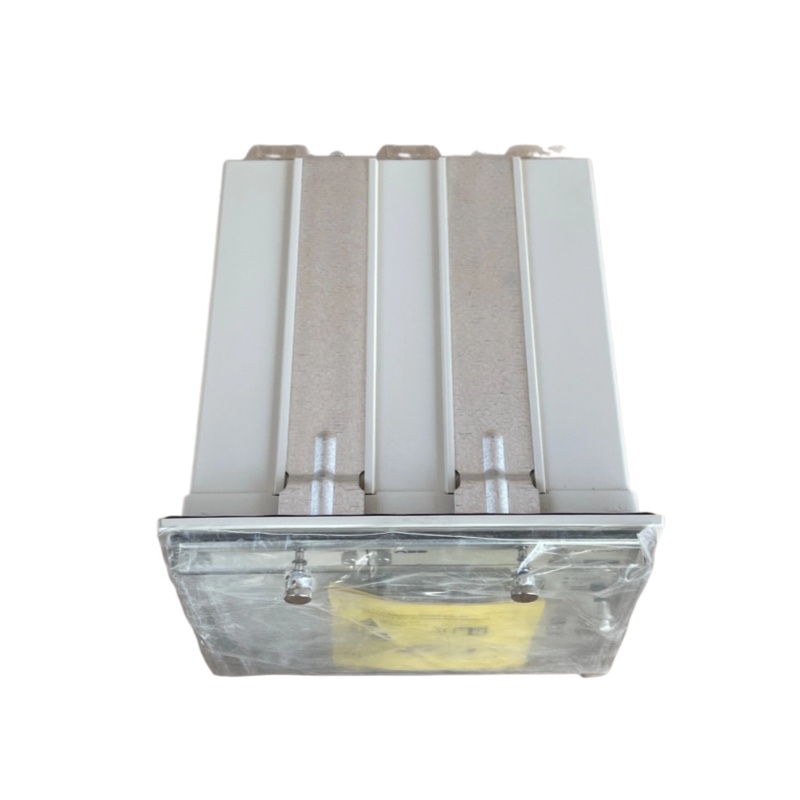

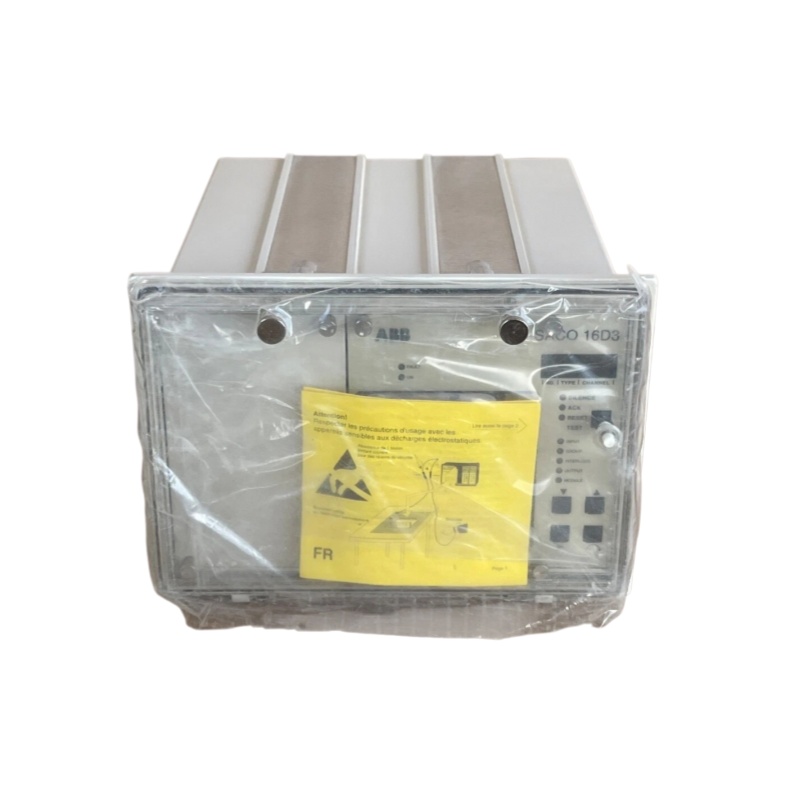

ABB SACO 16D3-AA-RS Display Unit
ABB SACO 16D3-AA-RS
1. Product Overview
ABB SACO 16D3-AA-RS is a 16-channel digital alarm display unit, which belongs to the ABB SPACOM power distribution automation product series. Designed specifically for the industrial automation field, this alarm unit can perform real-time monitoring and alarming to ensure the safety and stable operation of the system in case of process abnormalities. The model suffix “AA” indicates that the auxiliary voltage range is 80…265 V ac/dc.
2. Technical Parameters
|
Parameters
|
Specifications
|
|---|---|
|
Number of Channels
|
16 independent alarm channels
|
|
Auxiliary Power Supply Voltage
|
80…265 V ac/dc (Model AA)
|
|
Module Dimensions
|
100 mm × 160 mm (Euro-card standard)
|
|
Installation Method
|
Embedded installation
|
|
Housing Material
|
Extruded aluminum profile
|
|
Protection Level
|
IP54 (Panel-mounted)
|
|
Ambient Temperature
|
-20°C to +50°C
|
|
Humidity
|
5% to 95% non-condensing
|
|
Communication Interface
|
RS-485 serial interface, SPA bus
|
|
Relay Output
|
16 relay outputs, which can be used as on-site contact follower outputs or group alarm outputs.
|
3. Product Features
- Flexible and Customizable: The 16-channel alarm device can be activated via normally open or normally closed contacts.
- Modular Design: Based on standardized plug-in Eurocard modules, facilitating expansion and upgrading.
- Dual Output Function: Four +16 output relays (two group alarms, one sound and light alarm, one self-monitoring), and the other 16 relays can be used as on-site contact followers or group alarm outputs.
- Powerful Display Function: A 4-digit display on the front panel can show the first alarm signal issued.
- Communication Capability: Supports SPA bus and serial interface for data communication.
- Self-Monitoring: Advanced hardware and software self-monitoring system to ensure the highest operational reliability.
- Parameter Programming: Parameter selection and adjustment can be performed via serial interface or front panel.
- CE Certification: Complies with the EU Electromagnetic Compatibility (EMC) Directive.
4. Structure and Composition
SACO 16D3 is composed of the following standardized 100mm×160mm Euro-card plug-in modules:
SACO 16D3 Alarm Unit Structure
① Power Supply Module: SPGU 240A1 or SPGU 48B2
② Input/Output Module: SWIM 2A1
③ Alarm Display Module: SWPM 3A1
④ Relay Output Module: SWOM 16A1
⑤ Connection Module: SWCM 11A1
⑥ Housing: Extruded aluminum profile mounting cabinet
System Architecture: The power supply module converts the auxiliary voltage into 48V DC for internal use; 16 alarm input channels are processed by SWIM 2A1; the core processing unit SWPM 3A1 performs signal analysis and logical judgment; SWOM 16A1 provides relay outputs; the connection module SWCM 11A1 is responsible for all external wiring.
5. Application Fields
- Power Plants: Monitor the operating status of key equipment such as boilers, steam turbines, and generators.
- Substations: Power equipment status monitoring and alarming.
- Industrial Automation: Manufacturing industry, process control systems.
- Building Automation: Building monitoring systems.
- Transportation: Rail transit signal systems.
- Marine Applications: Offshore facility monitoring.
- Energy Management: Monitoring of power system safety and effective energy use.
6. Installation and Maintenance
6.1 Installation Requirements
- Installation Method: Embedded panel installation.
- Power Connection: Equipped with two identical power input terminals, but usually only one input is used; if dual power supplies are used, electrical isolation between the power supplies must be ensured.
- Grounding Requirements: The protective grounding terminal needs to be connected.
- Environmental Conditions: Avoid high temperature, high humidity, and strong electromagnetic interference environments.
6.2 Terminal Layout
Connection Terminal Assignment:
- Auxiliary Power Supply: 20-24
- Protective Ground: 22
- On-site Contact Circuit: 49-72
- Confirmation/Reset: 16-18
- Flashing Output: 5-12, 73-85
- Serial Interface: 1-3, 13-14
- 16 Alarm Channel Inputs: 50-71
- 16 Relay Outputs: 73-86
6.3 Maintenance Points
- Relay Output Mode Switching: To switch between “Signal Follower” and “Group Alarm” modes, remove the front panel, pull out the alarm module SWPM 3A1, and insert the flat cable into the corresponding interface (SIGNAL FOLLOWER or GROUP ALARM).
- Parameter Storage: Parameters are stored in non-volatile EEPROM, which can be modified via front panel buttons, and access rights can be protected by jumpers on the circuit board.
- Maintenance Cycle: It is recommended to regularly check the tightness of wiring and the cleanliness of terminals.
- Troubleshooting: Use the front panel indicator lights and serial interface to read system status and event records.
————————————————————————————————————-
