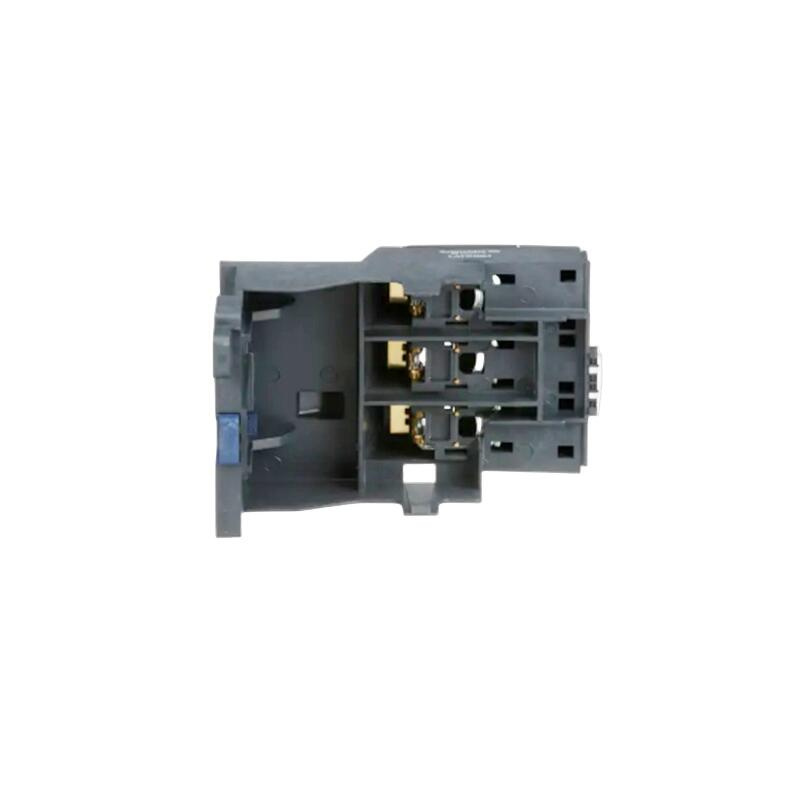

Schneider SH31401P01F200 Electromagnetic Contactor
Schneider SH31401P01F200
1. Overview
Schneider SH31401P01F200 is a high-power electromagnetic contactor with low power consumption and high reliability, suitable for high-frequency working environments. It drives the opening and closing of main contacts through an electromagnet to realize the connection and disconnection of the circuit.
_______________________________________________________________________________________________________
2. Specifications
|
Parameter
|
Specification
|
|---|---|
|
Rated Current
|
6A
|
|
Rated Power
|
227W
|
|
Power Consumption
|
1.5W
|
|
Rated Voltage
|
0.23kV
|
|
Mechanical Life
|
30Mcycles
|
|
Electrical Life
|
3.5Mcycles
|
|
Height (H)
|
350mm
|
|
Width (W)
|
535mm
|
|
Depth (D)
|
160mm
|
|
Protection Level
|
IP40 (IP52 when panel-mounted)
|
|
Operating Temperature
|
-25℃～+70℃
|
|
Packaging Dimension
|
45.0 cm × 60.0 cm × 80.0 cm
|
|
Weight
|
66.234 kg
|
|
Warranty Period
|
18 months
|
_______________________________________________________________________________________________________
3. Product Features
- Low Power Consumption: Only 1.5W power consumption, energy-saving and environmentally friendly.
- High Reliability: Adopts high-quality magnetic core and contact materials to ensure long-term stable operation.
- Compact Structure: Reasonable overall dimensions, easy to install and maintain.
- High Temperature Resistance: Can work stably in environments up to 70℃.
_______________________________________________________________________________________________________
4. Structure and Composition
- Main Contact System: Responsible for switching the main circuit.
- Auxiliary Contact System: Used for control circuits and signal feedback.
- Electromagnetic Coil: Generates magnetic field after power-on to drive contact action.
- Shell and Mounting Parts: Provide mechanical support and protection.
_______________________________________________________________________________________________________
5. Application Fields
- Industrial Automation: Used to control the start and stop of motors.
- Power Distribution System: Used for circuit protection and isolation.
- Mechanical Equipment: Used for electrical control systems of various mechanical equipment.
_______________________________________________________________________________________________________
6. Installation and Maintenance
Installation
It is recommended to adopt DIN rail installation method, which supports front or rear panel mounting configuration with flexible installation.
Maintenance
Regularly check whether the contacts are worn, and remove dust and dirt on the contacts to ensure the contactor works well.
————————————————————————————————————-
