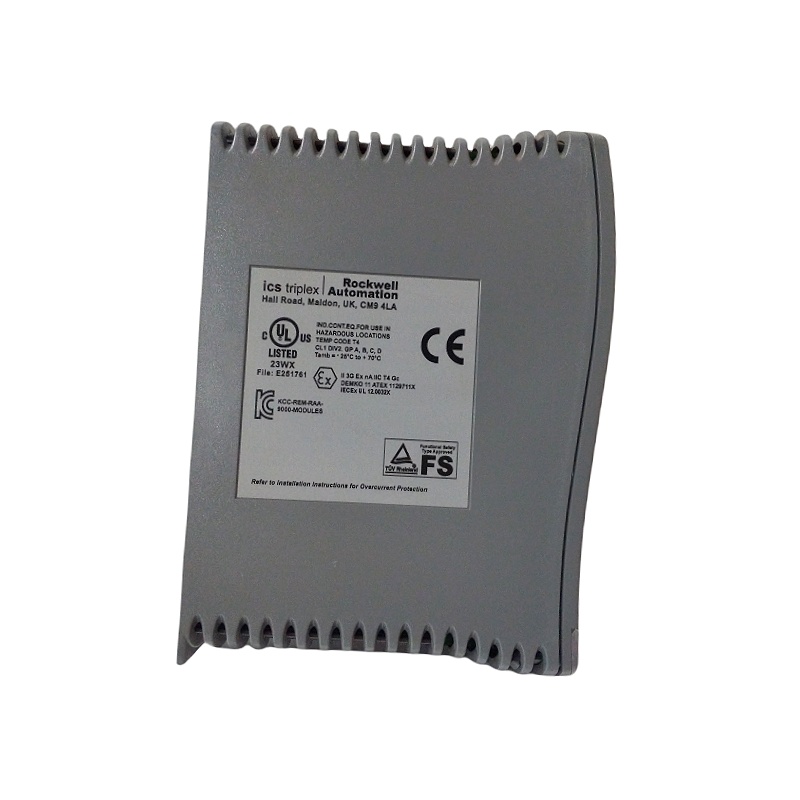

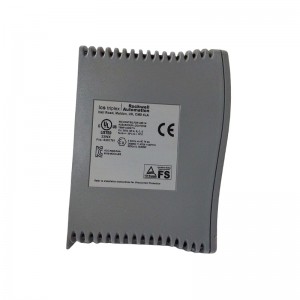

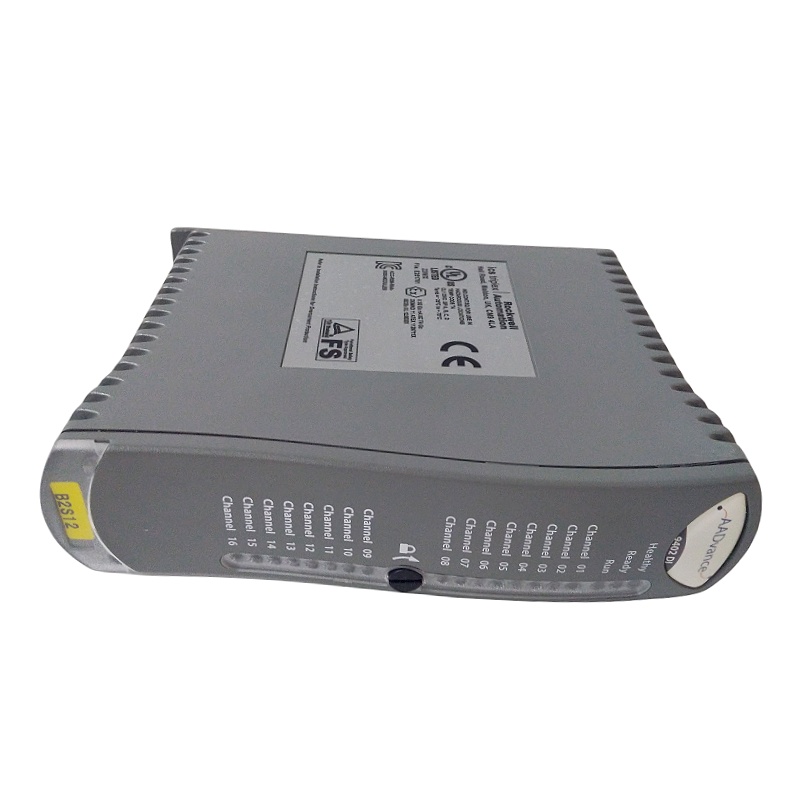

ICS TRIPLEX T9402 DCS Module
ICS TRIPLEX T9402
The ICS TRIPLEX T9402 is a programmable logic controller (PLC)/DCS module designed for industrial automation. It adopts a Triple Modular Redundancy (TMR) architecture, delivering high reliability and safety. This module is suitable for on-site equipment that requires real-time control, data acquisition, and remote monitoring.
Key Specifications
| Item | Specification |
|---|---|
| Power Supply | 24 V DC (Backplane voltage: 18-32 V DC, Maximum current: 260 mA) |
| Processor | 32-bit RISC / ARM Cortex |
| Storage | 1 MB RAM, 2 MB Flash (or equivalent) |
| Digital Input | 16 channels, Input voltage: 0-32 V DC, Isolation: 2500 VAC |
| Digital Output | 16 channels, Output current: ≤ 0.5 A, Output voltage: 5-35 V DC |
| Analog I/O | 8 analog inputs, 8 analog outputs |
| Communication Interfaces | RS-232, RS-485, CAN, Ethernet, Modbus TCP/IP, Modbus RTU, DNP3 |
| Operating Temperature | -20 °C ~ +70 °C (Some documents indicate -40 °C ~ +70 °C) |
| Protection Class | IP65 |
| Dimensions | 80 mm × 130 mm × 40 mm (or 146 mm × 116 mm × 36 mm) |
| Weight | 300 g ~ 340 g |
Product Features
- High Reliability: Equipped with Triple Modular Redundancy (TMR) and built-in redundant power supply, it supports fault tolerance.
- Real-Time Control: Features a high-speed processor with short response time, making it suitable for closed-loop control.
- Multi-Protocol Compatibility: Supports industrial standards such as Ethernet, Modbus, and DNP3, facilitating integration with SCADA and MES systems.
- Rich I/O Options: Both digital and analog I/O can be independently isolated, meeting various on-site signal requirements.
- Remote Diagnostics: Built-in Sequence of Events (SOE) recording, online fault detection, and alarm functions.
- Compact Design: DIN-rail mountable, space-saving, and lightweight, enabling easy on-site arrangement.
Structure and Composition
- Main Control Board: Includes CPU, storage, and communication chips.
- I/O Expansion Board: Consists of digital input/output and analog input/output modules.
- Power Supply Module: 24 V DC main power supply, providing redundant power.
- Communication Interface Card: Offers multiple interfaces such as Ethernet, serial ports, and CAN.
- Enclosure: With IP65 protection class, it meets the dustproof and waterproof requirements of industrial sites.
Typical Application Fields
- Petrochemical process control
- Power system monitoring and protection
- Water treatment and wastewater management
- Food and beverage production line automation
- Continuous manufacturing industries such as papermaking and textiles
- Remote monitoring and data acquisition (SCADA, MES)
Installation and Maintenance Points
Installation
- Fix the module using the DIN-rail method and ensure good grounding of the chassis.
- Check the voltage range before connecting the power supply.
- Use standard screws and tools to avoid over-tightening or loosening.
Wiring
- Digital input/output channels are isolated. It is recommended to use shielded cables and keep signal cables separate from power cables.
Commissioning
- After power-on, check the I/O status and communication connectivity through the built-in diagnostic page or upper computer software.
- Use the SOE function to verify the response time of inputs and outputs.
Maintenance
- Regularly check the power supply voltage stabilization and whether the heat sink is dusty.
- Perform an online self-test every six months and record the fault log.
- When replacing modules, use the same model to ensure redundancy consistency.
————————————————————————————————————-
