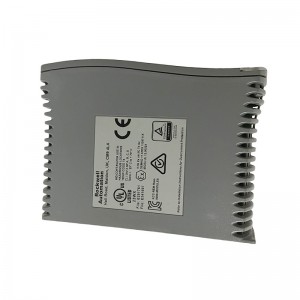

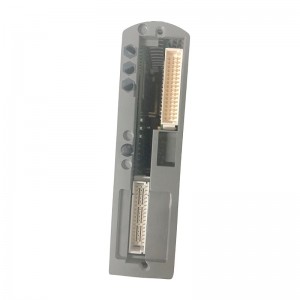

ICS TRIPLEX T9451 Digital/Analog I/O Module
ICS TRIPLEX T9451
1. Overview
The T9451 is a digital/analog I/O module designed for industrial automation and process control. It can serve as a core sub – station of the Triplex redundant control system, providing high reliability, fault – tolerance, and fast response. This module is suitable for critical infrastructure and harsh industrial environments.
2. Main Specifications
| Specification | Description |
|---|---|
| Operating Voltage | 24 V DC (±5%) |
| Input Type | Multiple analog inputs (voltage, current, temperature, etc.) or digital inputs |
| Output Type | 16 – channel digital relay outputs, or configurable analog/digital mixed outputs |
| Processor | High – performance 32 – bit RISC, supporting multiple protocols |
| Communication Interface | Ethernet, RS – 232, RS – 485, Profibus DP – V1 redundant protocol |
| Operating Temperature | -20 °C ~ +60 °C (some models: -40 °C ~ +70 °C) |
| Protection Level | IP65 (housing) / IP20 (internal) |
| Dimension | 100 mm × 50 mm × 150 mm (approximately 1U) |
| Weight | Approximately 1.2 kg |
| Power Consumption | Maximum 12 W (low – power mode optional) |
| Reliability | Adopting Triplex redundancy (3 – 2 voting) structure, complying with SIL 3 safety level |
3. Product Features
- Triplex Redundant Architecture: Three modules work in parallel, and the output is determined by the vote of any two modules, ensuring high system availability.
- Multi – protocol Compatibility: It supports Ethernet, Modbus TCP/IP, Profibus DP – V1, OPC UA, etc., facilitating seamless integration with DCS, PLC, and SCADA systems.
- High – precision I/O: The analog input adopts advanced AD conversion technology, featuring high resolution and small error. The digital input is equipped with an automatic diagnosis function.
- Modular Design: It has a compact structure and supports hot – swapping, which is convenient for rack installation and on – site maintenance.
- Built – in Diagnosis and Self – inspection: It can monitor the I/O status, communication health, power consumption, etc. in real – time, and supports the export of SOE (Sequence of Events) logs.
- Industrial – grade Reliability: With IP65 protection, a wide temperature range, and anti – electromagnetic interference, it is suitable for harsh scenarios such as petrochemical, nuclear power, and metallurgy.
4. Structure and Composition
- Processor Sub – board: It includes a high – performance CPU, memory, storage (Flash), and system firmware.
- I/O Card: Optional analog cards, digital cards, or mixed cards are available, providing 8 – 16 channels of input/output.
- Communication Interface Board: It consists of interface modules such as Ethernet, RS – 485/232, and Profibus.
- Power Supply/Backplane: It accepts 24 V DC power input and is equipped with voltage stabilization and over – current protection.
- Rack Support Structure: It complies with IEC 60529 IP65 and is equipped with heat dissipation holes and dust covers.
5. Application Fields
- Petrochemical Industry: It is used for process variable collection, valve control, and leak detection.
- Nuclear Power Plants: It is applied in safety instrumented systems (SIS) and emergency shutdown (ESD) control.
- Power Energy: It is used for generator set monitoring and distribution network automation.
- Metallurgy and Iron and Steel Industry: It is suitable for high – temperature furnace temperature control and logistics conveying systems.
- Pharmaceutical and Food Industry: It is used for batch control and the connection of sanitary sensors.
6. Installation and Maintenance Points
| Step | Key Points |
|---|---|
| Pre – installation Preparation | Confirm that the rack backplane voltage is 24 V DC ±5% and the grounding resistance is ≤1 Ω. Reserve a heat dissipation space of ≥1U between the upper and lower modules. |
| Mechanical Installation | Fix the module with screws to ensure that the buckles are tightly clamped. To avoid electrostatic damage, wear an anti – static wristband during operation. |
| Electrical Wiring | Connect the power supply, I/O terminals, and communication ports according to the wiring diagram. Check the polarity and grounding. |
| Software Configuration | Use Honeywell Experion PKS or the corresponding DCS/PLC software for module identification, channel mapping, and parameter setting. |
| Function Self – inspection | After startup, perform the ControlFLASH firmware integrity verification and check the automatic diagnosis report. |
| Daily Maintenance | Check the power supply voltage stabilization, grounding, and cable integrity quarterly. Export the logs when the SOE buffer is ≥80% to prevent overwriting. Conduct regular online diagnosis tests. |
| Fault Handling | Locate the faulty module through the built – in diagnosis function, and automatically switch to the healthy sub – station using the voting mechanism to minimize downtime. |
————————————————————————————————————-
