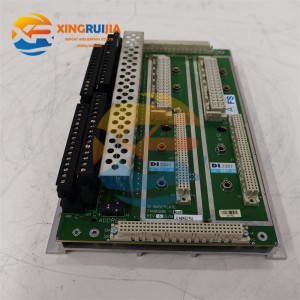

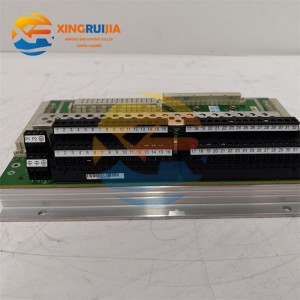

TRICONEX DI2301

1. Overview

The TRICONEX DI2301 is a digital input module designed for industrial automation systems, forming a critical part of the Triconex Safety Instrumented System (SIS). Engineered for high reliability and redundancy, it meets the demands of critical safety applications in industries such as oil and gas, chemical, and power generation. Utilizing Triple Modular Redundancy (TMR) technology, the module ensures continuous operation even if a single processor unit fails.

-

2. Specifications

• Power Supply Voltage: 24V DC
• Power Consumption: 5W
• Input Type: Single-ended or differential
• Number of Inputs: 8 digital input channels
• Input Voltage Range: 5V to 125V DC
• Input Current: Typical 5mA, maximum 20mA
• Input Impedance: >5kΩ
• Response Time: ≤1ms
• Operating Temperature Range: -40°C to +85°C
• Storage Temperature Range: -50°C to +90°C
• Humidity Range: 5% to 95% (non-condensing)

-

3. Key Features

• High Reliability: TMR design ensures uninterrupted operation during single-point failures.
• Strong Noise Immunity: High noise suppression and transient voltage protection.
• Fast Response: <1ms response time for real-time control applications.
• Modular Flexibility: Scalable design for easy expansion or reduction of functional modules.
• Safety Compliance: Meets stringent safety standards for critical monitoring applications.
• Easy Maintenance: Intuitive control panel and visual interface for diagnostics and troubleshooting.

-

4. Structure and Components

The TRICONEX DI2301 module consists of:

• Digital Input Channels: Supports up to 8 channels for sensor and switch signal reception.
• Communication Interface: Compatible with Modbus, Ethernet, OPC, and other protocols for seamless integration.
• Redundant Design: TMR technology ensures fail-safe operation.
• Robust Housing: Durable metal casing for reliable performance in harsh industrial environments.
• Mounting: Supports standard 35mm DIN rail installation.

-

5. Applications

The TRICONEX DI2301 is widely used in:

• Oil & Gas Industry: Emergency Shutdown Systems (ESD), fire and gas detection.
• Chemical Industry: Process control and safety monitoring.
• Power Generation: Safety-critical control systems in power plants.
• Manufacturing: Production line safety and process automation.
• Other Sectors: Automotive, rail transport, and other industries requiring high-integrity safety systems.
